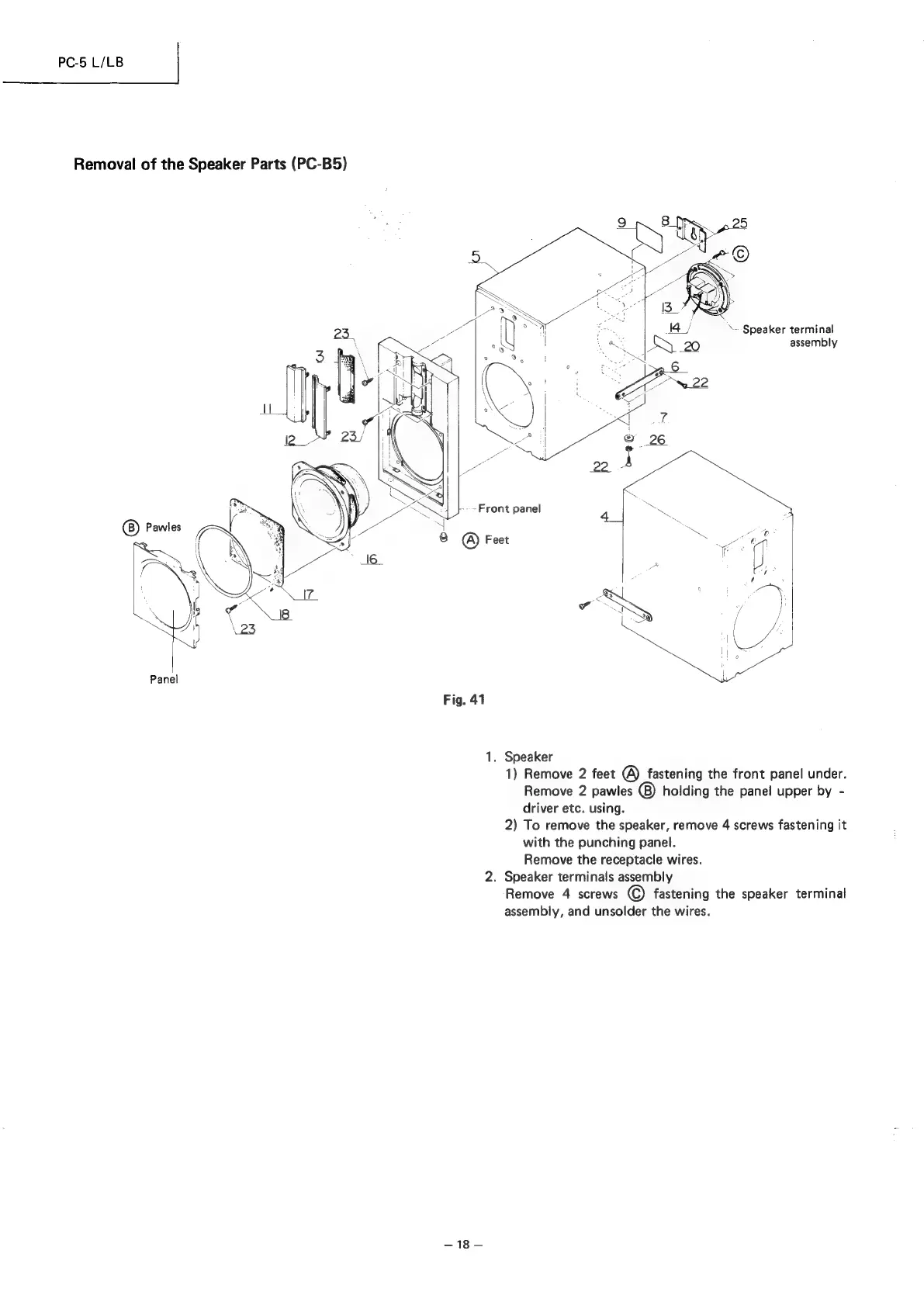

Removal of the Speaker Parts (PC-B5)
\.. Speaker terminal
assembly
Fig. 41
1. Speaker
1) Remove 2 feet @) fastening the front panel under.
Remove 2 pawles holding the panel upper by -
driver etc. using.
2) To remove the speaker, remove 4 screws fastening it
with the punching panel.
Remove the receptacle wires.
2. Speaker terminals assembly
Remove 4 screws © fastening the speaker terminal
assembly, and unsolder the wires.
—~ 18 —
