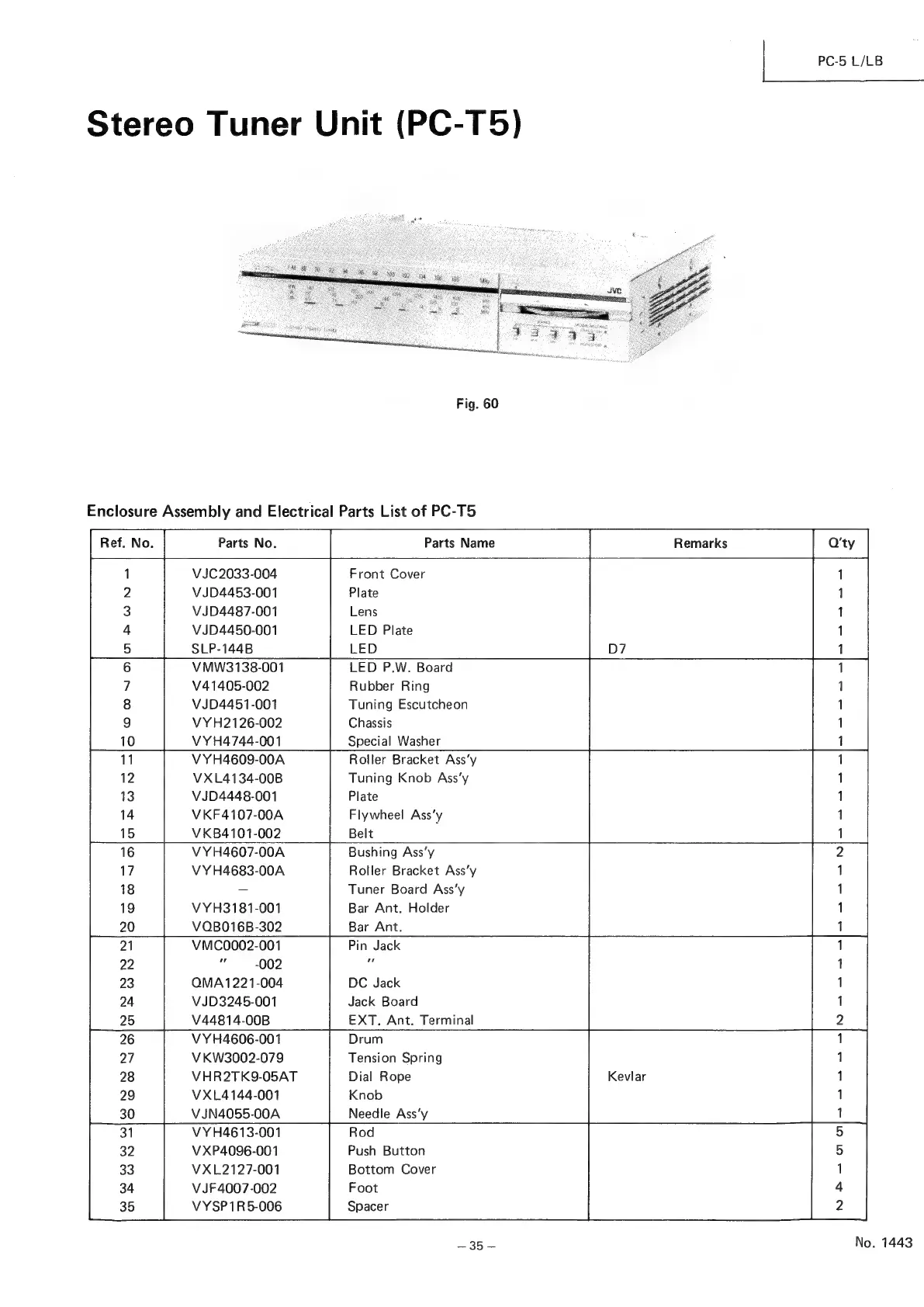

PC-5 L/LB
Stereo Tuner Unit (PC-T5)
Fig. 60
Enclosure Assembly and Electrical Parts List of PC-T5
VJC2033-004 Front Cover
VJD4453-001 Plate
VJD4487-001 Lens
VJD4450-001 LED Plate
SLP-144B LED D7
VMW3138-001 LED P.W. Board
V41405-002 Rubber Ring
VJD4451-001 Tuning Escutcheon
VYH2126-002 Chassis
VYH4744-001 Special Washer
VYH4609-00A Roller Bracket Ass‘y
VXL4134-00B Tuning Knob Ass’y
VJD4448-001 Plate
VKF4107-00A Flywheel Ass’y
VKB4101-002 Belt
VYH4607-00A Bushing Ass’y
VYH4683-00A Roller Bracket Ass’y
_ Tuner Board Ass’y
VYH3181-001 Bar Ant. Holder
VOB016B-302 Bar Ant.
SHGSAESS Als emrvolason-
See oe es ely) oe ow eo foe oo os os fe eo Oo OO
20
21 VMC0002-001 Pin Jack
22 “ -002 ‘
23 QMA1221-004 DC Jack
24 VJD3245-001 Jack Board
25 V44814-00B EXT. Ant. Terminal
26 VYH4606-001 Drum
27 VKW3002-079 Tension Spring
28 VHR2TK9-05AT Dial Rope Kevlar
29 VXL4144-001 Knob
30 VJN4055-00A Needle Ass’y
31 VYH4613-001 Rod 5
32 VXP4096-001 Push Button 5
33 VXL2127-001 Bottom Cover 1
34 VJF4007-002 Foot 4
35 VYSP1R5-006 Spacer 2
_35- No. 1443
