3-9
S
peaker assembly and p
arts list

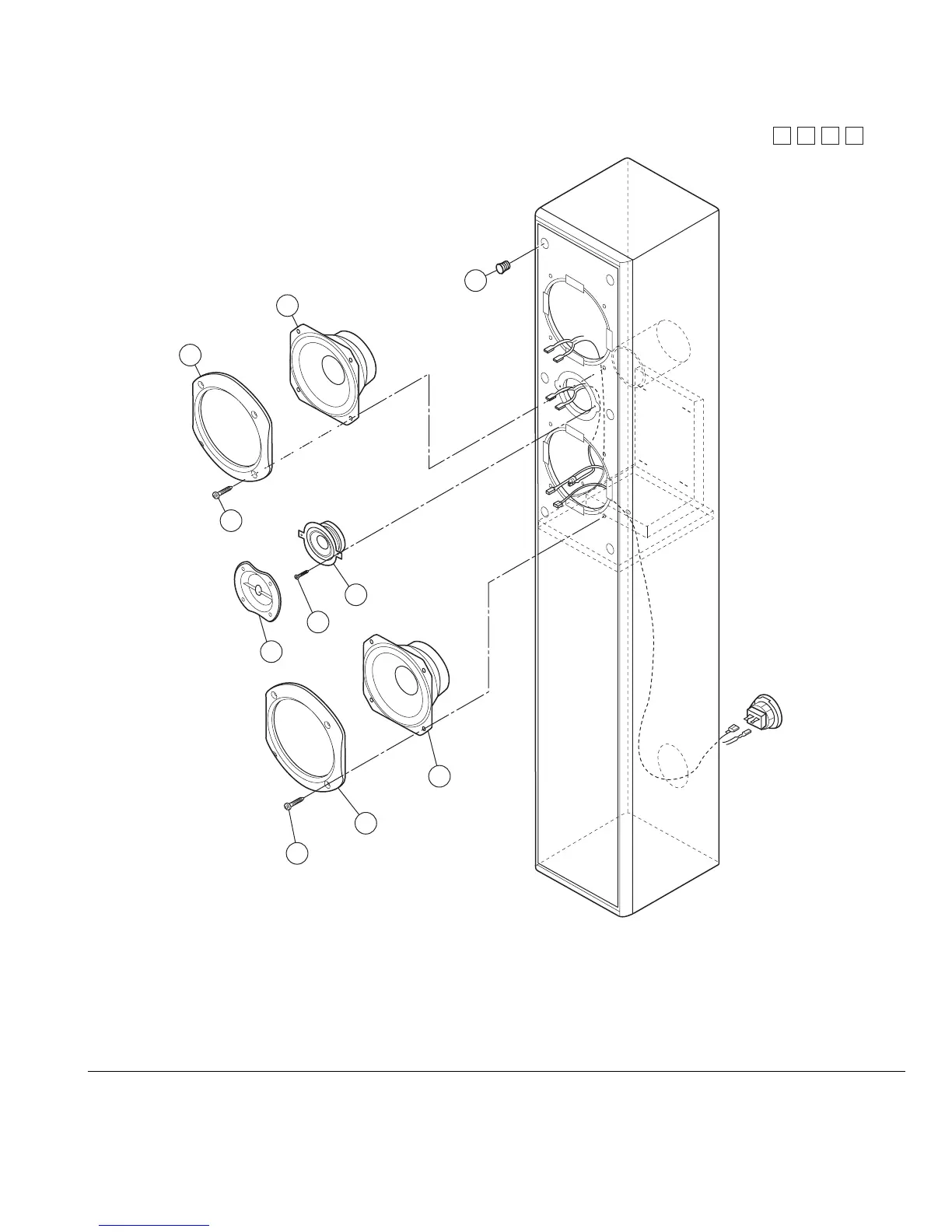

S
peaker (Front speaker)
Block No. [M][7][M][M]
Symbol No.
Part No.
Part Name
Description
Local
1
TF040013-02
SPEAKER(TW)
2
7001591206
SCREW
(x2)
3
5700070901
TW RING
4
CR100051-03
SPEAKER(WF)
5
CR100051-04
SPEAKER(WF)
6
5700066701
WF RING
(x2)
7
7008142006
SCREW
(x8)
8
560000801
1
HOLDER
(x6)
M
M
M
7
The parts without symbol number are not service.
(Front speaker)
Block No.
6
5
8
7
7
6
4
2
1
3
68
70
Table of Contents
Service Manual
1
Table of Contents
1
Precaution
4
Specific Service Instructions
7
Disassembly
8
Adjustment
34
Troubleshooting
36
Block Diagrams
41
Parts List
61
Speaker Assembly and Parts List (Subwoofer) (Block No.m2)
66
Speaker Assembly and Parts List (Center Speaker) (Block No.m6)
68
Speaker Assembly and Parts List (Front Speaker) (Block No.m7)
69
DVD Mechanism Assembly and Parts List (Block No.mj)
70
DVD Changer Mechanism Assembly and Parts List (Block No.mk)
72
Electrical Parts List
74
Packing Materials and Accessories Parts List (Block No.m3)
88
