Getting Ready to Use Dolby Pro Logic
Speaker Arrangements for Dolby Pro Logic ————————
Setting-up Dolby Pro Logic ————————————————
Perform the steps below using the buttons on the remote control.
1. Press and hold SHIFT B during following procedures.
2. Press PRO LOGIC (1).
When using the Unit, press PRO LOGIC/3CH LOGIC to select PRO LOGIC (1).
Each time you press the button, Dolby Surround programs change as follows:
= PRO LOGIC = 3CH LOGIC = (previous sound mode) = (back to the beginning)
• When you select Dolby Surround, Sound Mode (see page 11) is canceled.
3. Select the desired Center Speaker mode.
Press CENTER MODE (6).
Each time you press the button, Center Speaker modes change as follows:
= NORMAL = WIDE = OFF = PHANTOM = (back to the beginning)
4. Select the Delay time.
Press DELAY TIME (9). Each time you press the button, Delay time changes as follows:
= DELAY 2 = DELAY 3 = DELAY 4 = DELAY 1 = (back to the beginning)
5. Set the volume to the level you like.
6. Press TEST TONE (3).
A test tone comes out of the speakers in the following order:
= LEFT = CENTER = RIGHT = REAR = (back to the beginning)
• When a test tone comes out of the rear speakers, “SURROUND” appears on the display.
• When “PHANTOM” or “OFF” is selected for Center Speaker mode, no test tone comes out of the
center speaker.
7. Adjust the level for the center speaker.
Press CENTER LEVEL + (5) or – (4). Set the level so that it is about
the same as the level from the front speakers.
• You cannot adjust the level for the center speaker if “PHANTOM” or “OFF” is selected for
Center Speaker mode.
8. Adjust the level for the rear speakers.
Press REAR LEVEL + (8) or – (7). Set the level so that it is about
the same as the level from the front speakers.
9. Press TEST TONE (3) again.
Test Tone mode is canceled.
This completes the preparations required for using Dolby Pro Logic.
10. Release SHIFT B.

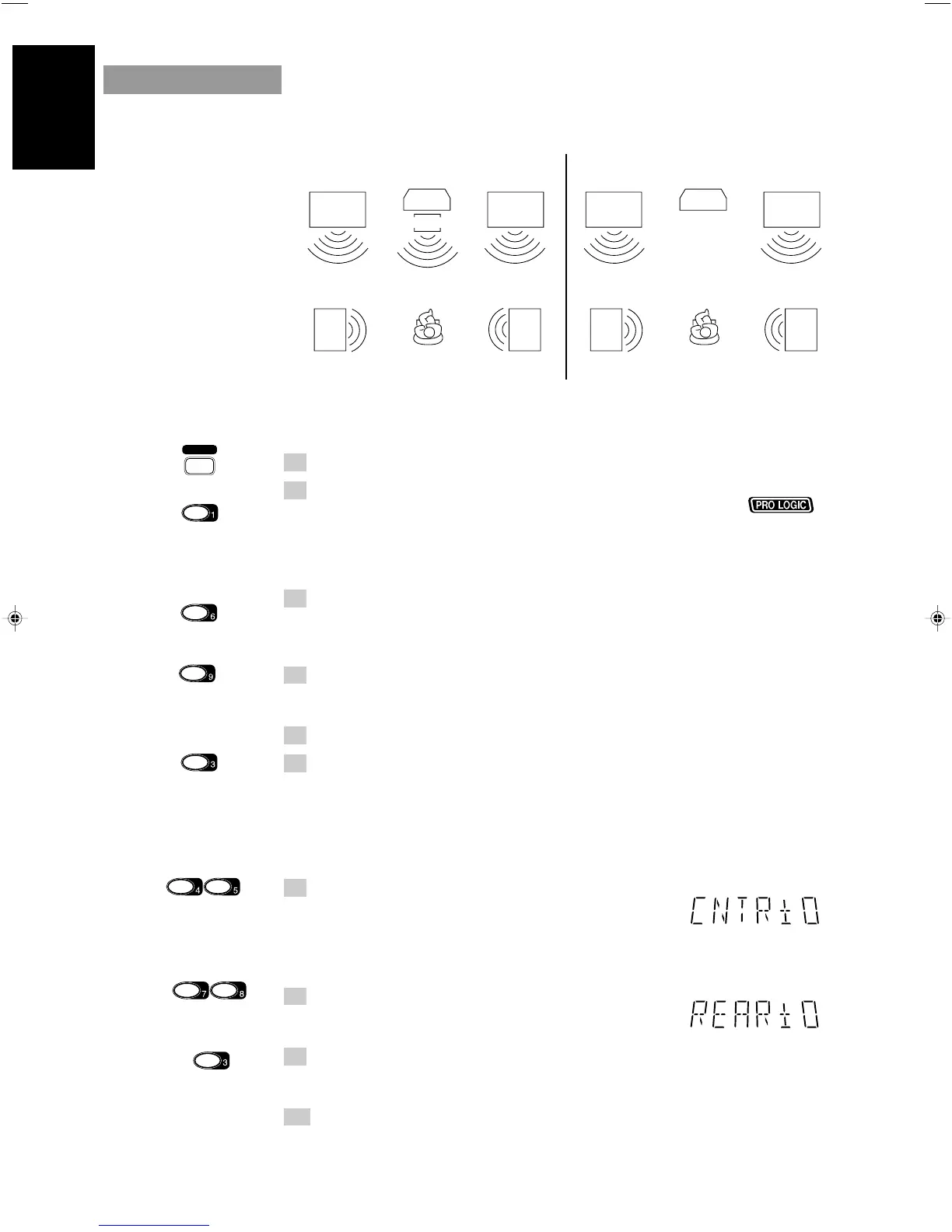

Layout when using the center speaker and
rear speakers
Layout when using the rear speakers
TV
Front
Speaker
Front
Speaker
Center Speaker
Rear
Speaker
Rear
Speaker
Rear
Speaker
Rear
Speaker
Front
Speaker
Front
Speaker
TV
PRO LOGIC
CENTER MODE
DELAY TIME
TEST TONE
CENTER
LEVEL
–+
REAR
LEVEL
–+
TEST TONE
SHIFT B
