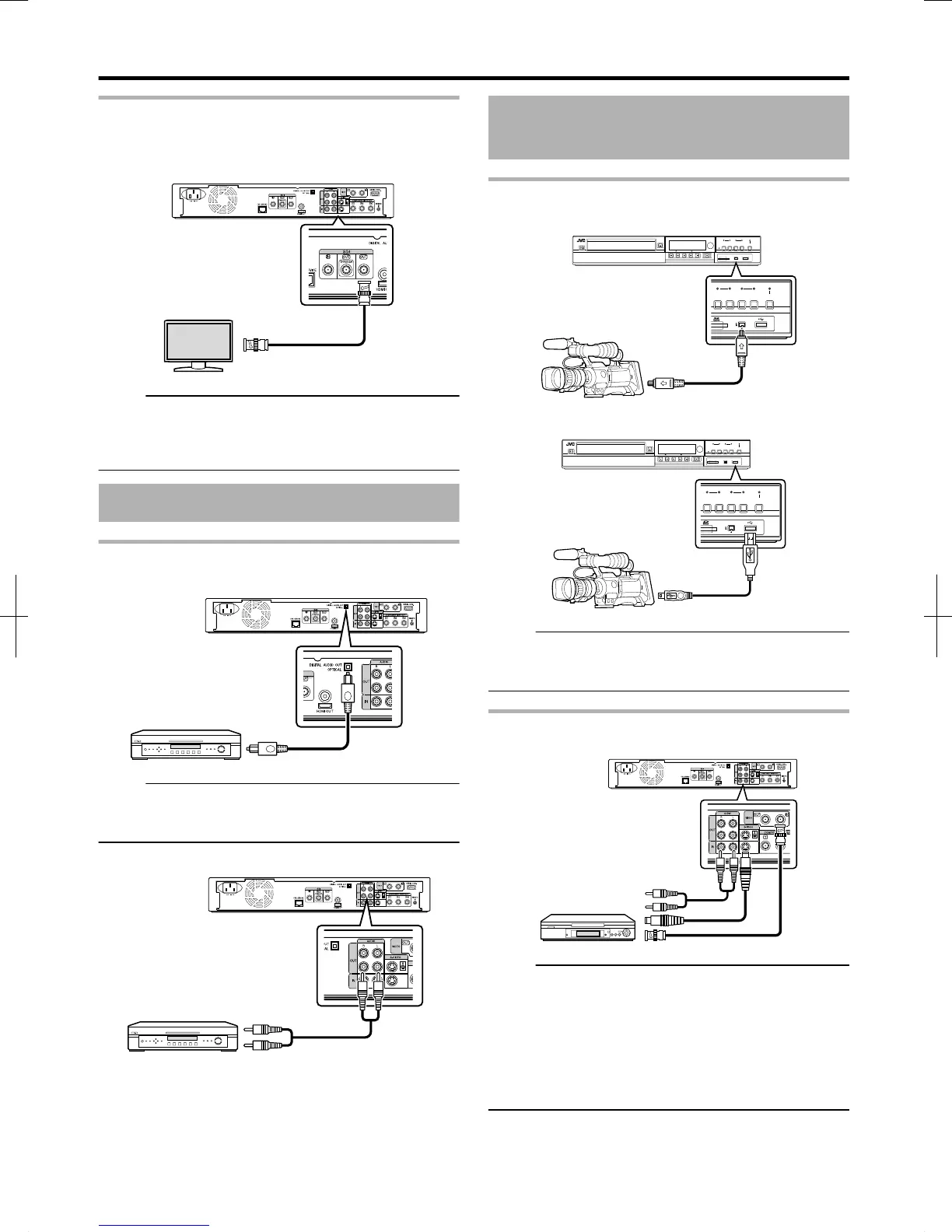

Connecting using an SDI cable (BNC)
Connect using an SDI cable (sold separately). You can
transmit both digital video and audio signals with a single
cable.
.
Memo:
v
The SDI output terminal comes with two outputs, one is an
SDI terminal that enables switching between DIRECT OUT/
MONITOR OUT, while the other is an SDI through terminal
used exclusively for through output.
Connecting an Amplifier
Connecting an audio amplifier
m
Connecting using an optical digital cable
.
Memo:
v
Remove the protection cap of the cable before connecting.
Store the protection cap properly to prevent it from being
misplaced.
m
Connecting using an audio cable
.
Connecting a Video Deck
or Other Equipment
Connecting a video camera
m
Connecting via the i.LINK terminal
.
HDV/DV IN
RECHDD RECBV
REC
MODE
INPUT DIRECT/
MONITORSELECT
HDD
MIDIA SELECT
BD/SD
m
Connecting via the USB terminal
.
HDV/DV IN
RECHDD RECBV
REC
MODE
INPUT
SELECT
HDD
MIDIA SELECT
BD/SD
DIRECT/
MONITOR
Memo:
v
Some video camera models may require an AC adapter
instead of batteries to run. For details, refer to the video
camera’s instruction manual.
Connecting a video deck or other
equipment (recording using this unit)
.
Memo:
v
When connecting using an S-video cable, change the
setting of “VIDEO INPUT SETTING” to “S-VIDEO”.
For more details, refer to
“VIDEO INPUT SETTING” (A page 85) .
v
To record video images played back on this unit to an
external device (video deck, etc.), connect the output
terminal of this unit to the input terminal of the external
device.
Preparation
18
2012/3/8 13:53:0
