JVC TD-V661 User Manual

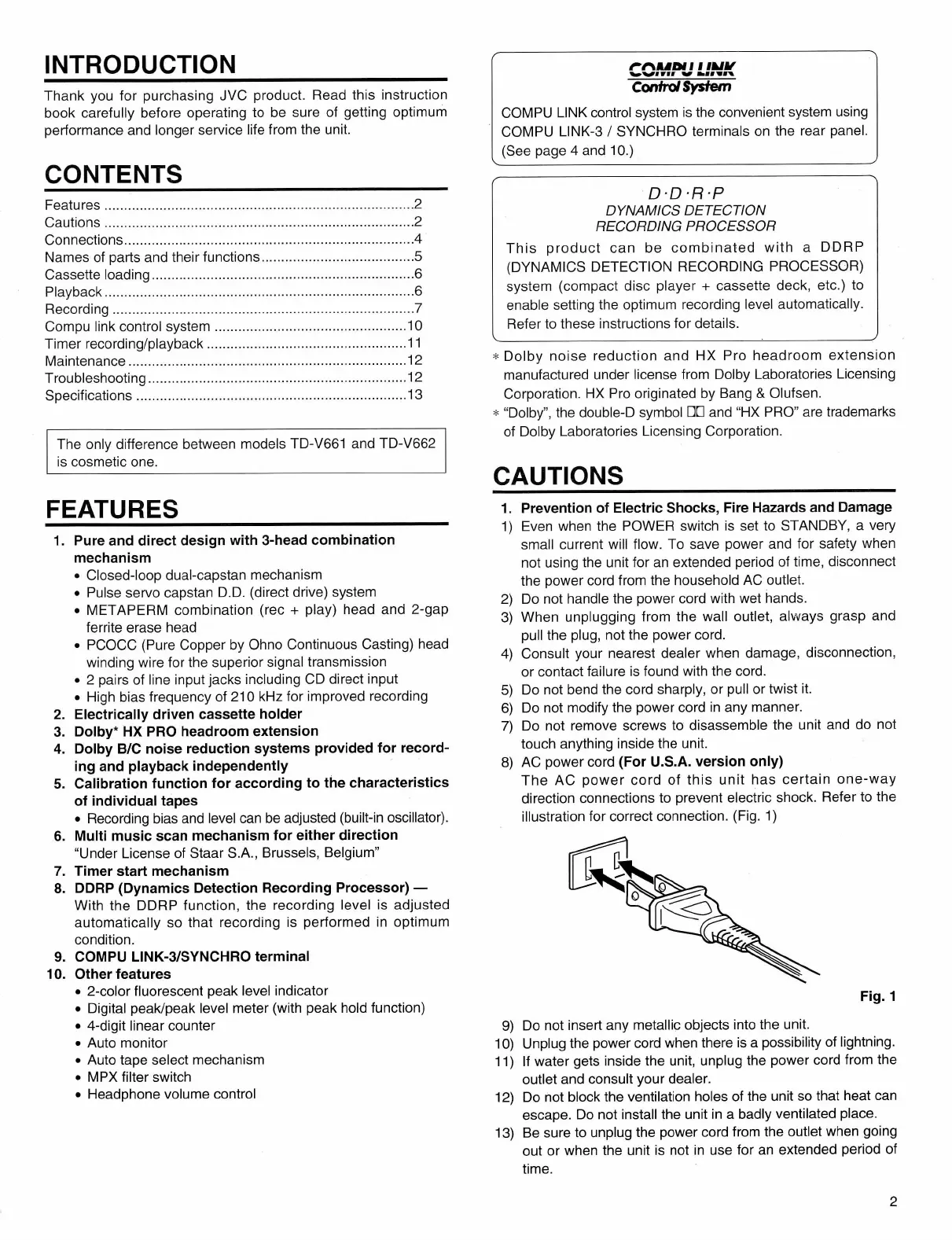

INTRODUCTION
Thank you for purchasing JVC product. Read this instruction
book caretully before operating to be sure of getting optimum
performance and longer service lite from the unit.
CONTENTS
Features 2
Cautions 2
Connections 4
Names of parts and their functions 5
Cassette loading 6
Playback 6
Recording 7
Compu link control system 10
Timer recording/playback 11
Maintenance 12
Troubleshooting 12
Specifications 13
The only difference between models TD-V661 and TD-V662
is cosmetic one.
FEATURES
1. Pure and direct design with 3-head combination
mechanism
• Closed-loop dual-capstan mechanism
• Pulse servo capstan D.D. (direct drive) system
• METAPERM combination (rec -i- play) head and 2-gap
territe erase head
• PCOCC (Pure Copper by Ohno Continuous Casting) head
winding wire tor the superior signal transmission
• 2 pairs of line input jacks including CD direct input
• High bias frequency of 210 kHz tor improved recording
2. Eiectricaiiy driven cassette hoider
3. Doiby* HX PRO headroom extension
4. Doiby B/C noise reduction systems provided for record
ing and playback independently
5. Calibration function for according to the characteristics
of individual tapes
• Recording bias and level can be adjusted (built-in oscillator).
6. Muiti music scan mechanism for either direction
"Under License of Staar S.A., Brussels, Belgium"
7. Timer start mechanism
8. DDRP (Dynamics Detection Recording Processor) —
With the DDRP function, the recording level is adjusted
automatically so that recording is performed in optimum
condition.
9. COMPU LiNK-3/SYNCHRO terminal
10. Other features
• 2-color fluorescent peak level indicator
• Digital peak/peak level meter (with peak hold function)
• 4-digit linear counter
• Auto monitor
• Auto tape select mechanism
• MPX filter switch
• Headphone volume control
r-rshMDH I itJU
ControlSYstem
COMPU LINK control system is the convenient system using
COMPU LINK-3 / SYNCHRO terminals on the rear panel.
(See page 4 and 10.)
\ y
DD-R-P
DYNAMICS DETECTION
RECORDING PROOESSOR
This product can be combinated with a DDRP
(DYNAMICS DETECTION RECORDING PROCESSOR)
system (compact disc player -i- cassette deck, etc.) to
enable setting the optimum recording level automatically.
Refer to these instructions for details.
V '
* Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang & Olufsen.
* "Dolby", the double-D symbol □□ and "HX PRO" are trademarks
of Dolby Laboratories Licensing Corporation.
CAUTIONS
1. Prevention of Electric Shocks, Fire Hazards and Damage
1) Even when the POWER switch is set to STANDBY, a very
small current will flow. To save power and for safefy when
not using the unit for an extended period of time, disconnect
the power cord from the household AC outlet.
2) Do not handle the power cord with wet hands.
3) When unplugging from the wall outlet, always grasp and
pull the plug, not the power cord.
4) Consult your nearest dealer when damage, disconnection,
or contact failure is found with the cord.
5) Do not bend the cord sharply, or pull or twist it.
6) Do not modify the power cord in any manner.
7) Do not remove screws to disassemble the unit and do not
touch anything inside the unit.
8) AC power cord (For U.S.A. version only)
The AC power cord of this unit has certain one-way
direction connections to prevent electric shock. Refer to the
illustration for correct connection. (Fig. 1)
9) Do not insert any metallic objects into the unit.
10) Unplug the power cord when there is a possibility of lightning.
11) If water gets inside the unit, unplug the power cord from the
outlet and consult your dealer.
12) Do not block the ventilation holes of the unit so that heat can
escape. Do not install the unit in a badly ventilated place.
13) Be sure to unplug the power cord from the outlet when going
out or when the unit is not in use for an extended period of
time.
