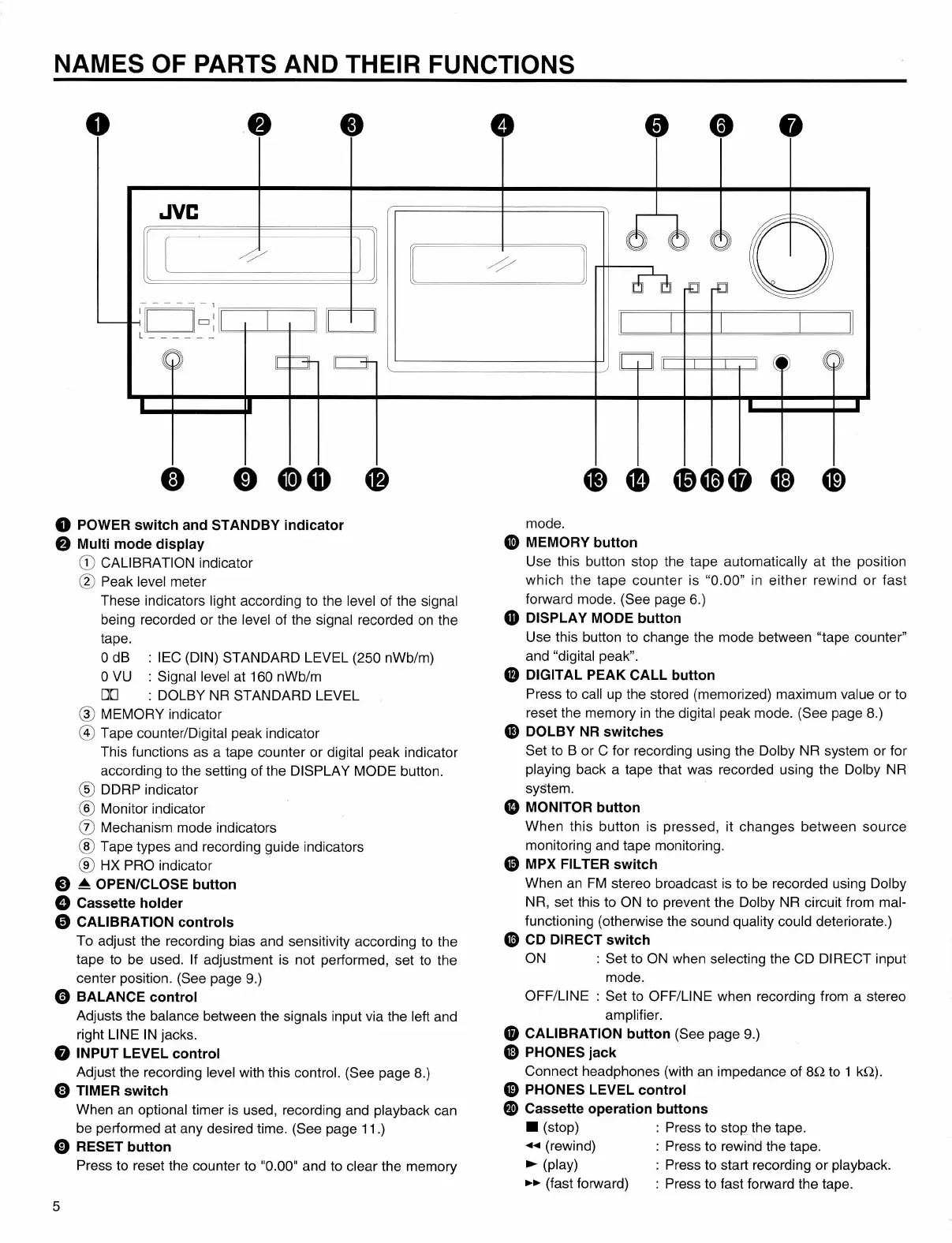

NAMES OF PARTS AND THEIR FUNCTIONS
© © ©© ®
® ® ®®® ® ®
O POWER switch and STANDBY indicator
0 Multi mode display
® CALIBRATION indicator
@ Peak ievel meter
These indicators iight according to the levei of the signai
being recorded or the level of the signai recorded on the
tape.
0 dB : lEC (DIN) STANDARD LEVEL (250 nWb/m)
0 VU : Signai ievel at 160 nWb/m
□□ : DOLBY NR STANDARD LEVEL
(3) MEMORY indicator
® Tape counter/Digital peak indicator
This functions as a tape counter or digital peak indicator
according to the setting of the DISPLAY MODE button.
(5) DDRP indicator
® Monitor indicator
@ Mechanism mode indicators
@ Tape types and recording guide indicators
® HX PRO indicator
0 A OPEN/CLOSE button
O Cassette holder
0 CALIBRATION controls
To adjust the recording bias and sensitivity according to the
tape to be used. If adjustment is not performed, set to the
center position. (See page 9.)
© BALANCE control
Adjusts the balance between the signals input via the left and
right LINE IN jacks.
0 INPUT LEVEL control
Adjust the recording level with this control. (See page 8.)
© TIMER switch
When an optional timer is used, recording and playback can
be performed at any desired time. (See page 11.)
© RESET button
Press to reset the counter to "0.00" and to clear the memory
mode.
MEMORY button
Use this button stop the tape automatically at the position
which the tape counter is "0.00" in either rewind or fast
forward mode. (See page 6.)
DISPLAY MODE button
Use this button to change the mode between "tape counter"
and "digital peak".
DIGITAL PEAK CALL button
Press to call up the stored (memorized) maximum value or to
reset the memory in the digital peak mode. (See page 8.)
DOLBY NR switches
Set to B or 0 for recording using the Dolby NR system or for
playing back a tape that was recorded using the Dolby NR
system.
MONITOR button
When this button is pressed, it changes between source
monitoring and tape monitoring.
MPX FILTER switch
When an FM stereo broadcast is to be recorded using Dolby
NR, set this to ON to prevent the Dolby NR circuit from mal
functioning (otherwise the sound quality could deteriorate.)
CD DIRECT switch
ON : Set to ON when selecting the CD DIRECT input
mode.
OFF/LINE : Set to OFF/LINE when recording from a stereo
amplifier.
CALIBRATION button (See page 9.)
PHONES jack
Connect headphones (with an impedance of 8Q to 1 kQ).
PHONES LEVEL control
Cassette operation buttons
■ (stop) : Press to stop the tape.
•*< (rewind) : Press to rewind the tape.
► (play) ; Press to start recording or playback,
(fast forward) : Press to fast forward the tape.
