JVC TH-A35 Service Manual

TH-A35
1-11

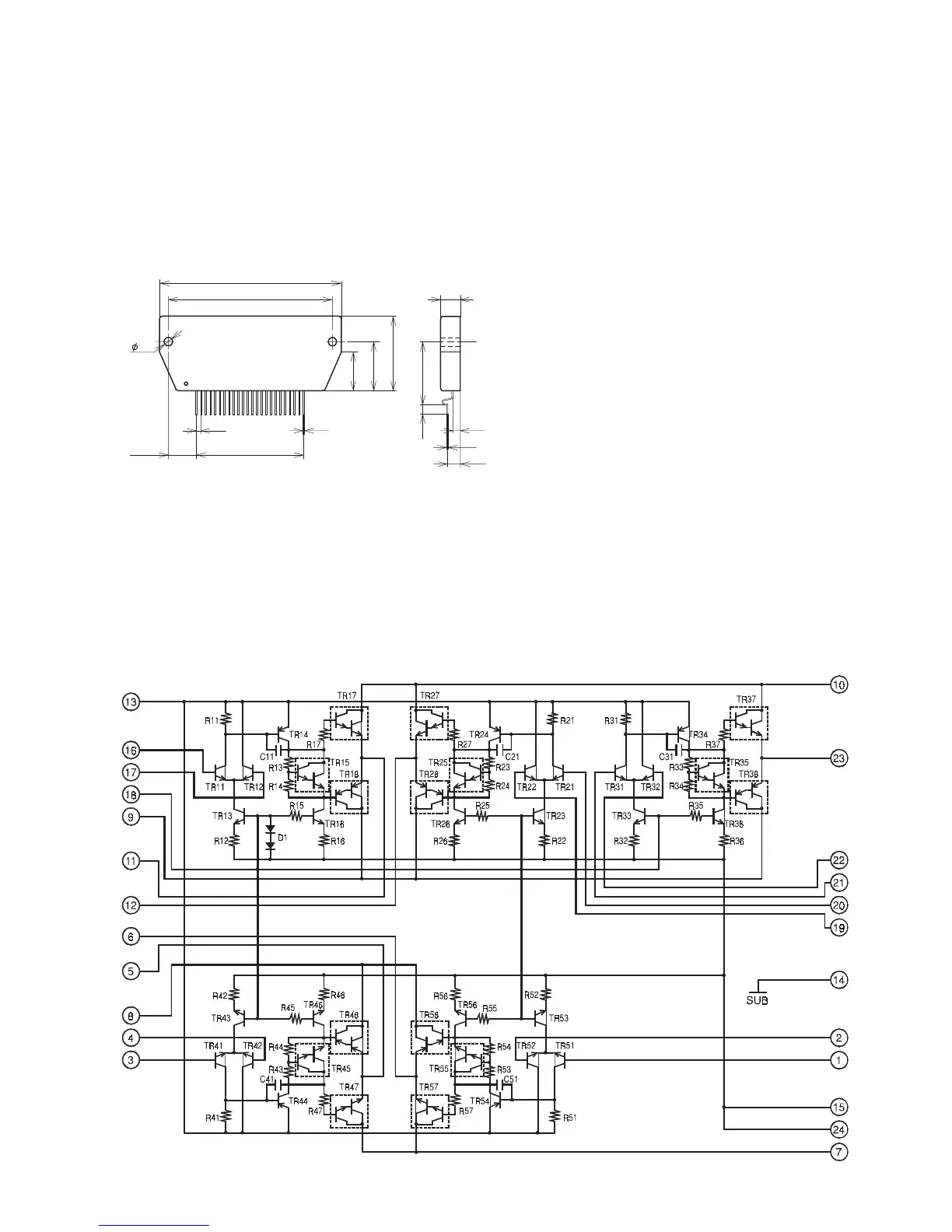

1. Pin layput
2. Block diagram
Description of major ICs
 STK402-950 ( U701 ) : 5 channels AF power amplifier.
¥~«‹„ˇ4200
(unit:mm)
3.6
(12.0)
2.0
16.5 21.0
32.0
27.34.0
23x2.0=46.0
0.5
5.5
0.4
2.9
8.5
124
78.0
70.0

JVC TH-A35 Specifications

Amplifier Section

power per channel	45 watts
impedance	6 ohms
frequency	1 kHz

Subwoofer

woofer size	16 cm
sustained power capacity	100 W
impedance	10 Ω

Audio Section

weight	4.8 kg
frequency range	25 Hz to 200 Hz
dimensions	202 mm × 330 mm × 341 mm

Video Section

dimensions	92 mm × 97.5 mm × 92 mm
weight	650 g
frequency range	90 Hz to 20 kHz

Tuner Section

FM tuning range	87.50 MHz – 108.00 MHz
AM tuning range	522 kHz – 1 629 kHz
power supply	230 V, 50 Hz
