EN - 4

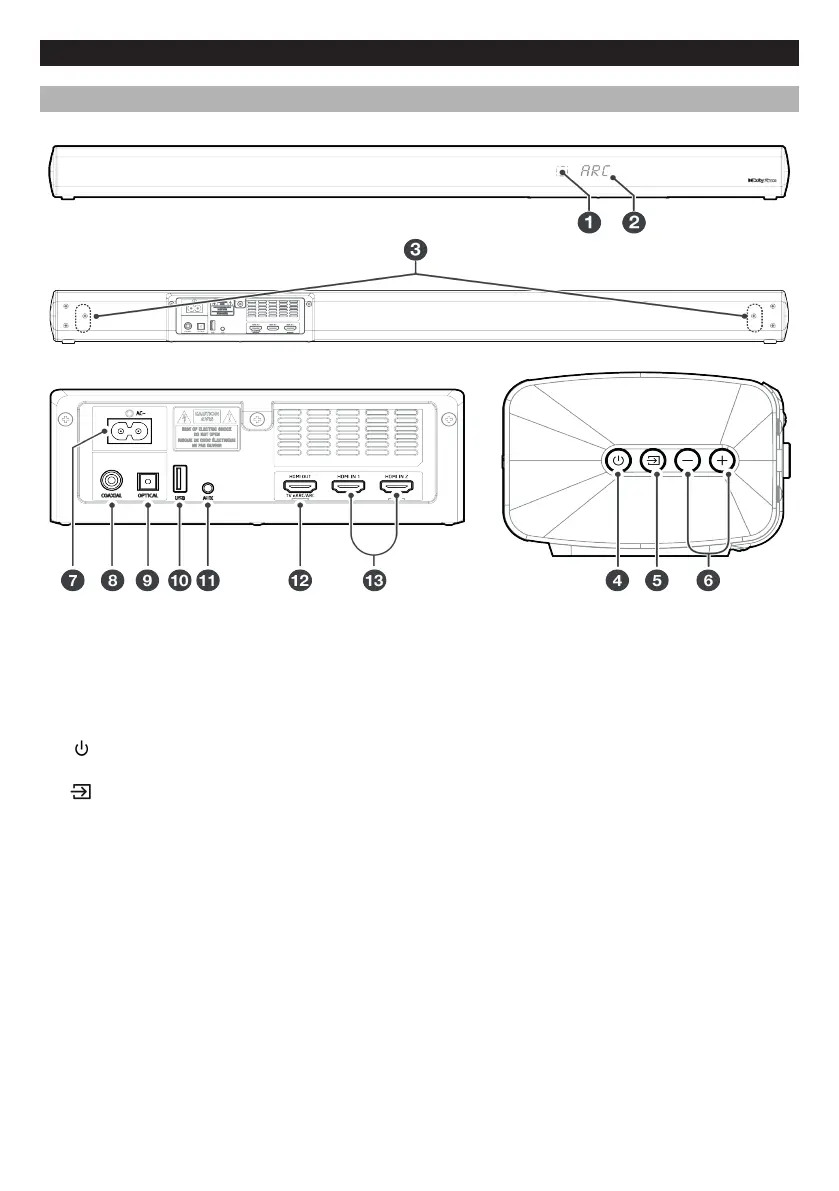

IDENTIFYING THE PARTS
SOUNDBAR
1. Remote Control
Sensor Receive signal from the remote control.
2. Display Window
Show the current status.
3. Wall bracket screws
4. (ON/OFF) button
Switch the Soundbar between ON and Standby mode.
5. (SOURCE) button
Select the play function.
6. +/- (VOLUME) buttons
Increase/decrease the volume level.
7. AC~ Socket
Use to connect to power cable.
8. COAXIAL Socket
Use to connect to the COAXIAL OUT socket on an external device.
9. OPTICAL Socket
Use to connect to the OPTICAL OUT socket on an external device.
10. USB Socket
Insert the USB device to play music.
11. AUX Socket
Connect to an external audio device.
12. HDMI OUT (TV eARC/ARC) Socket
The port for connecting a TV. The port supports the eARC/ARC HDMI feature, which allows
the soundbar to play audio that originates on the connected TV.
