3.2.7 Removing the feed motor

(See Fig.11 to 13)

• Remove the traverse mechanism.

(1) Remove the yellow wire from solder part q of the CD servo

board from upper side of traverse mechanism. (See Fig.11)

(2) Remove the white wire from solder part r of the CD servo

board. (See Fig.11)

(3) Remove the one screw G attaching the plate. (See Fig.12)

(4) Disengage the plate from fixing part s and take out the

plate. (See Fig.12)

(5) Remove the feed gear and take out the feed motor. (See

Fig13)

Reference:

When attaching the feed motor, the wire has to through the

part t of the traverse mechanism assembly. (See Fig.13)

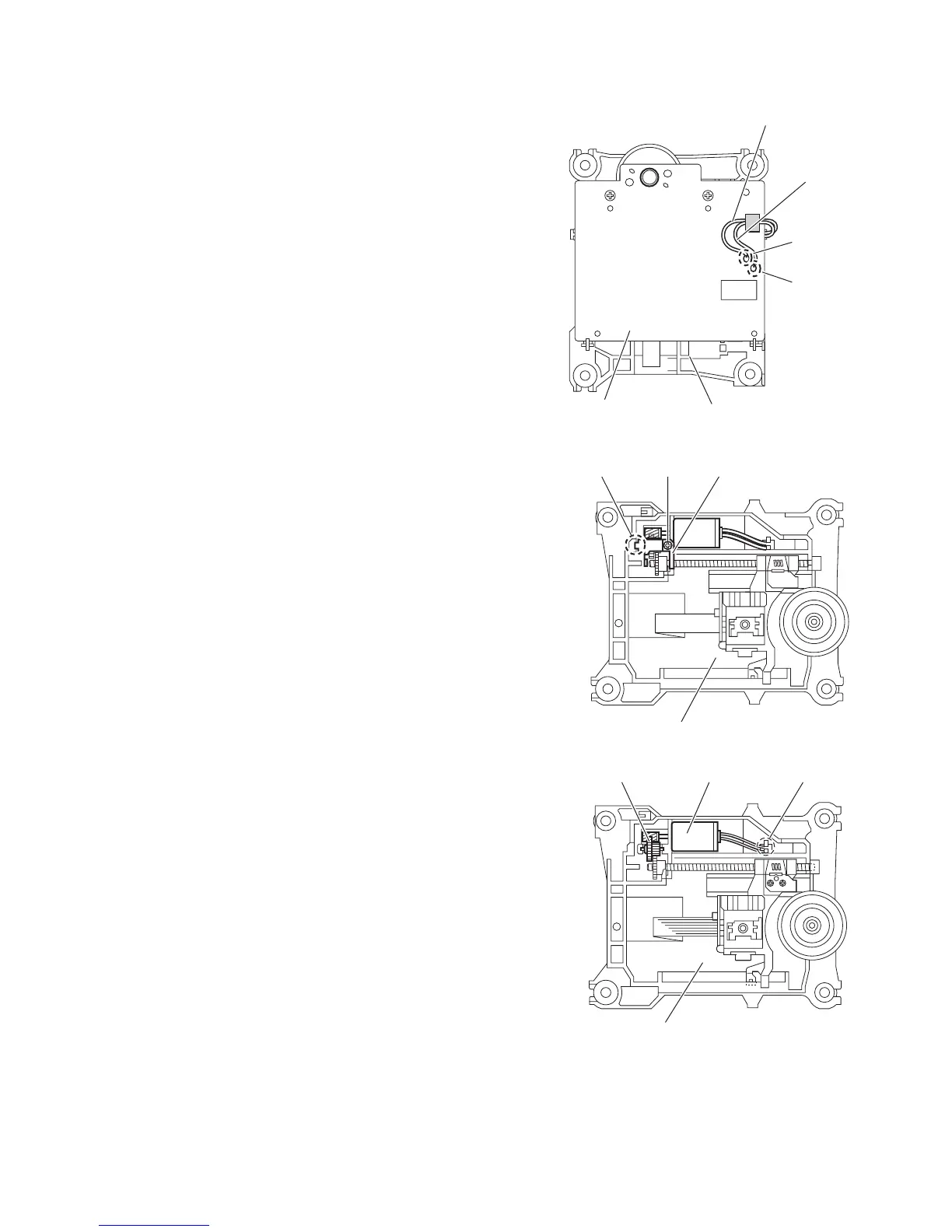

Fig.11

Fig.12

Fig.13

Traverse mechanism assemblyCD servo board

Yellow wire

White wire

Soldered part q

Soldered part r

Plate

Fixing part s

Traverse mechanism assembly

Feed gear Feed motor

part t
