5

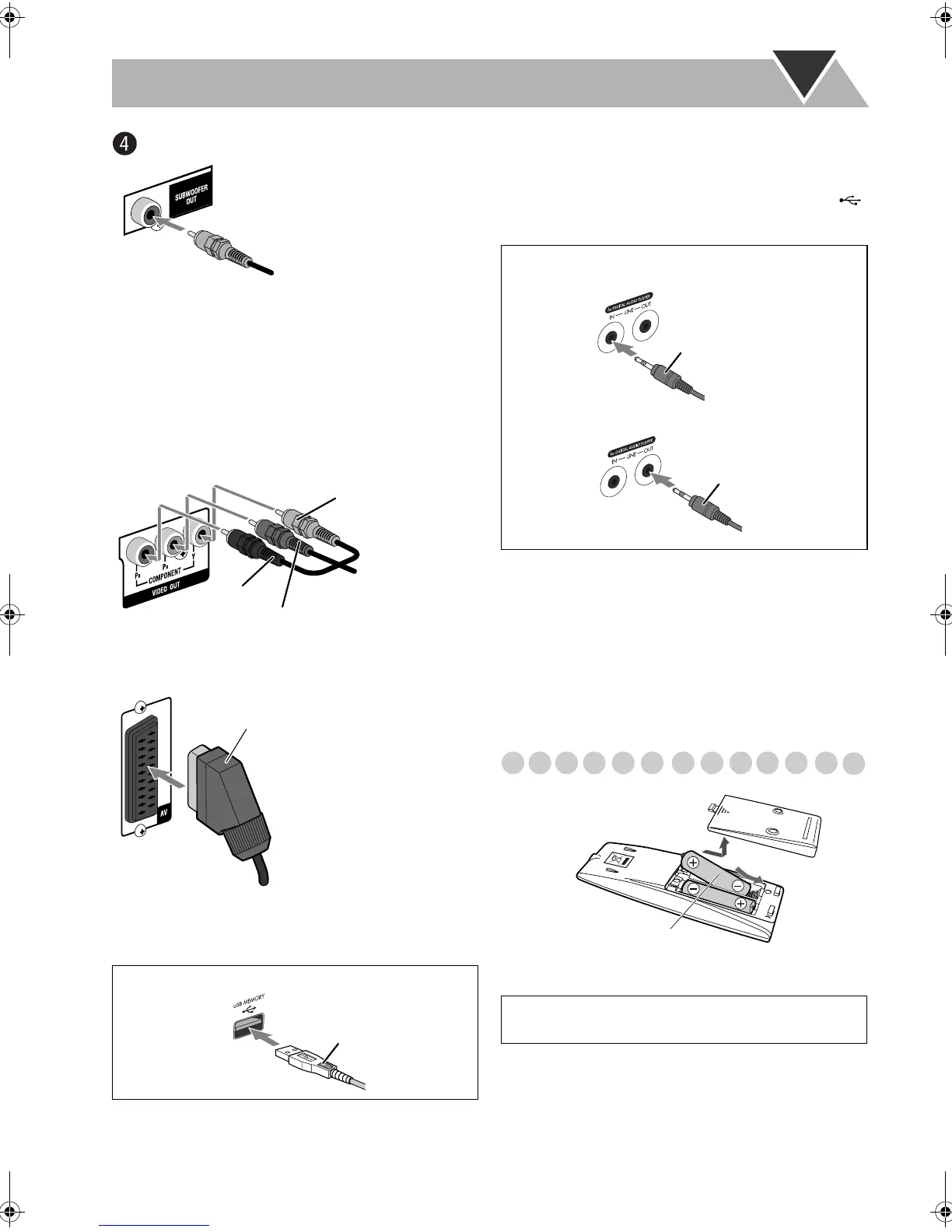

To connect the powered subwoofer
The connected subwoofer can reproduce the bass sounds
recorded in front left and right channels, but cannot
reproduce the LFE signals encoded in multi-channel
software.
• Before plugging the System to the power supply, make sure
that the powered subwoofer is turned off.
@ TV/monitor
Connect either component cord or SCART cord.
• This connection allows you to use the progressive scanning
mode. To select progressive (PROGRESS) scanning mode
(see page 14), use COMPONENT VIDEO OUT jacks.
• After connecting a TV, select the appropriate video signal
output according to the connection method. See “Changing
the Scanning Mode” on page 14.
• When connecting with a USB cable, use the USB 2.0 cable
whose length is less than 1 m.
• You can connect a USB mass storage class device such as a
USB flash memory device, hard disk drive, multimedia card
reader, etc. to this System.
• You cannot connect a computer to the USB MEMORY
terminal of the System.
• Do not connect the same digital audio player to both the
LINE IN and LINE OUT jacks at the same time; otherwise,
the sound will be distorted.
• If an external device is not equipped with a stereo mini plug
audio output, use a plug adapter to convert the stereo mini
plug to the corresponding plug of the audio output.
• By using QP Link (Quick Portable Link), you can easily
start playing back a digital audio player on this System. See
page 11 for details.
Preparing the remote control
If the range or effectiveness of the remote control decreases,
replace both batteries.
When using the remote control
Point the top of the remote control towards the remote sensor
as directly as possible. If you operate it from a diagonal
position, the operating range (approx. 5 m) may be shorter.
When connecting a USB mass storage class device
From the powered subwoofer
(not supplied)
Green
Blue
Red
Component video
cord (not supplied)
• This connection sends the
video signal (Composite, Y/C,
or RGB) and receives audio
signal from TV. To listen to the
TV sound, see page 9.
SCART cord
(not supplied)
On the front
panel
USB cable
(not supplied)
When connecting a digital audio player
• For listening to a digital audio player
• For recording on a digital audio player
Caution
Do not expose batteries to heat or flame.
Stereo mini plug
(not supplied)
On the front
panel
From audio output (or
headphone out, etc.)
Stereo mini plug
(not supplied)
On the front
panel
From audio input
R6(SUM-3)/AA(15F)
UX-G48[B].book Page 5 Friday, June 22, 2007 11:28 AM
