3.1.7 Removing the DVD mechanism assembly

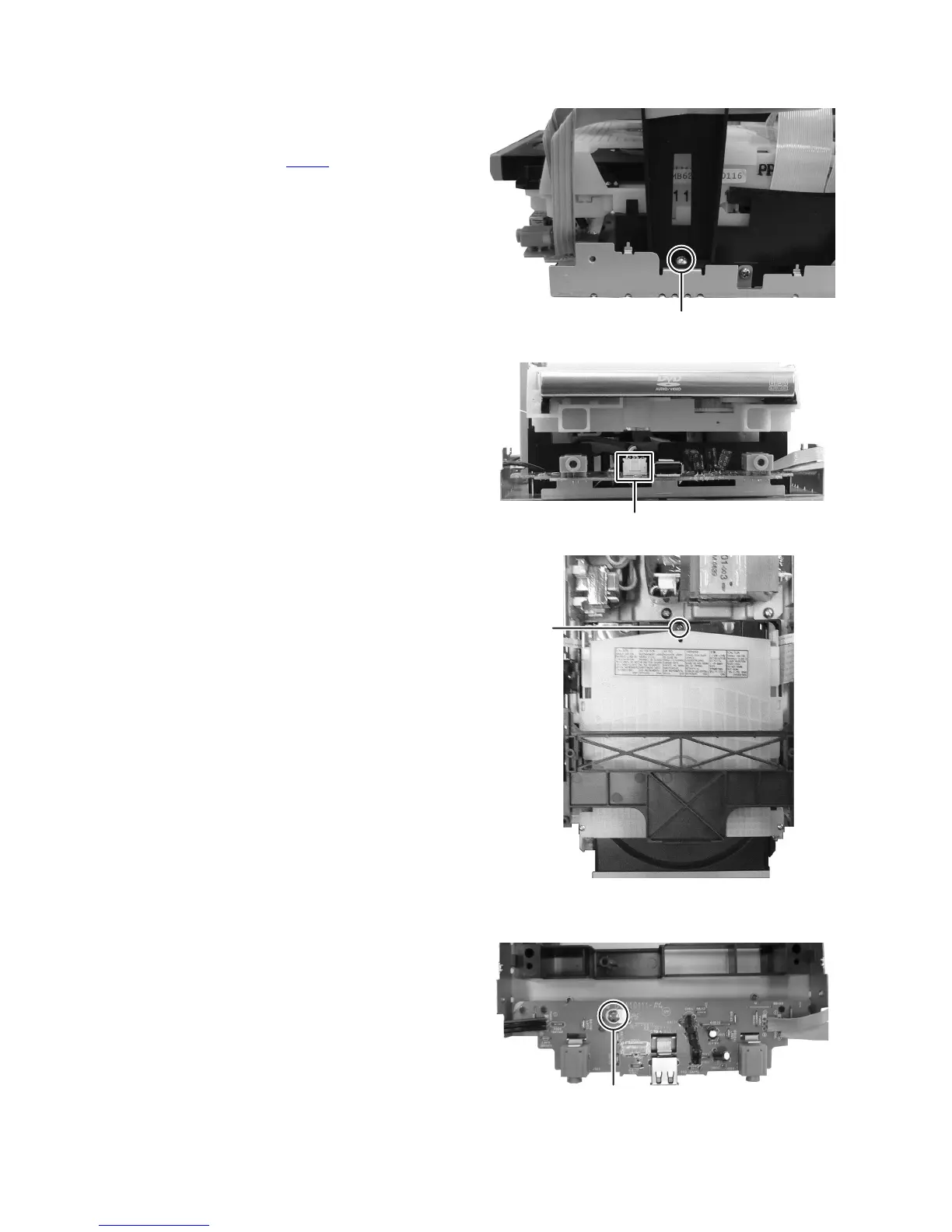

(See Fig.14 to 16)
(1) Remove the two screws M (both side) attaching the brack-
et. (See Fig.14)
(2) Disconnect the connector wire from DVD mechanism as-
sembly connected to connector CN803
of the USB jack
board assembly. (See Fig.15)
(3) Remove the one screw N attaching the DVD mechanism
assembly. (See Fig.16)
Fig.14
Fig.15
Fig.16
3.1.8 Removing the USB jack board assembly
(See Fig.17)
(1) Remove the one screw P attaching the USB jack board as-
sembly.
Fig.17
M
CN803
N
P
