(No.MB595)1-9

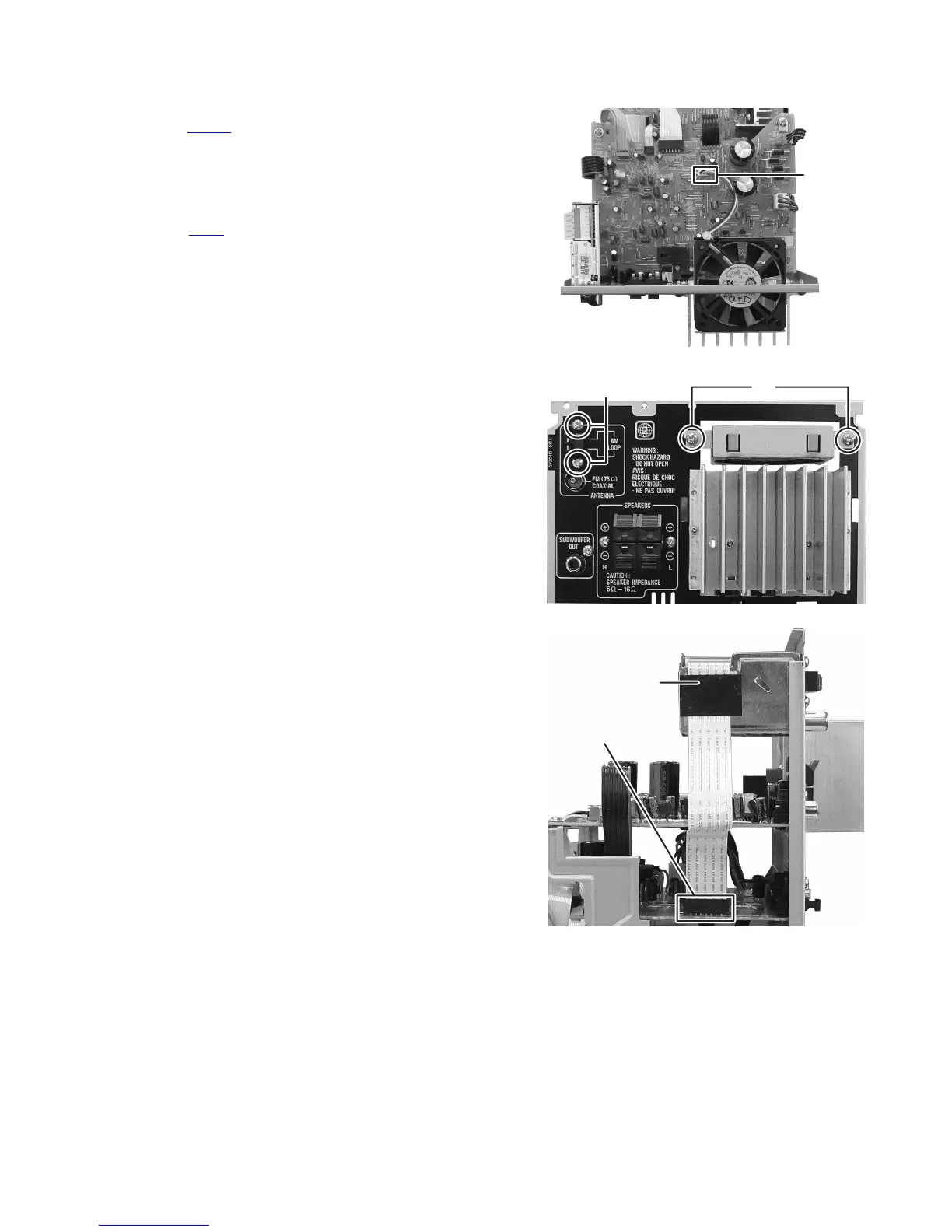

3.1.3 Removing the Fan
(See Fig.6, 7)
(1) Disconnect the connector wire from the Fan connected to
connector CN602
of the Audio board assembly. (See Fig.6)
(2) Remove the two screws E attaching the Fan. (See Fig.7)
3.1.4 Removing the Tuner pack
(See Fig.7, 8)
(1) Disconnect the card wire from the Tuner pack connected to
connector CN11
of the Micon board assembly. (See Fig.8)
(2) Remove the two screws F attaching the Tuner pack. (See
Fig.7)
Fig.6
Fig.7
Fig.8
CN602
EF
Tuner pack
CN11
To Next Page
