(No.MB618)1-13

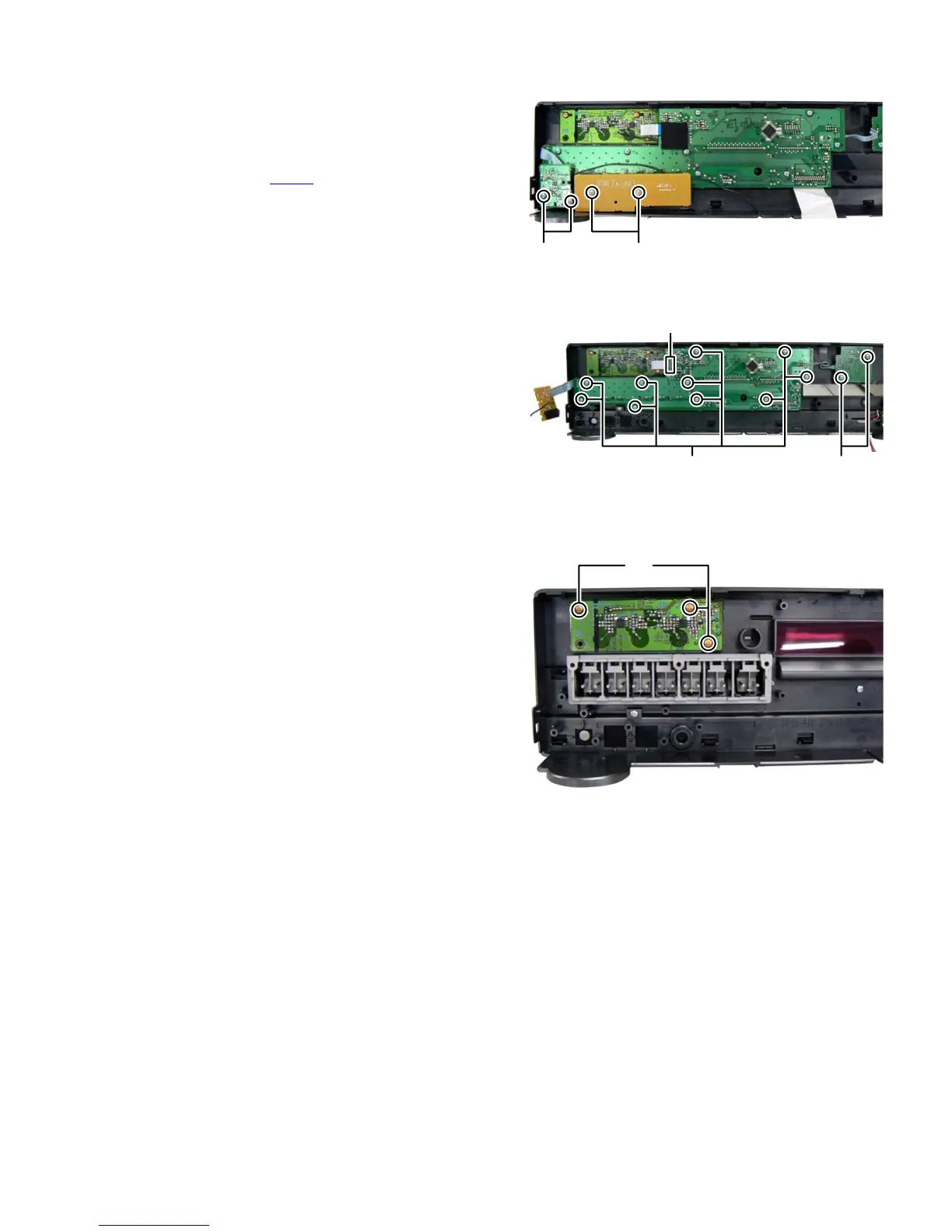

3.1.10 Removing the VFD BOARD assembly (See Fig.15, 16)
(1) Remove the two screws V attaching the BRACKET
BOARD. (See Fig.15)
(2) Remove the two screws W attaching the HEAD PHONE
BOARD assembly. (See Fig.15)
(3) Disconnect the card wire from TOUCH BOARD assembly
connected to connector CN601
of the VFD BOARD assem-
bly. (See Fig.16)
(4) Remove the two screws X attaching the LED BOARD as-
sembly. (See Fig.16)
(5) Remove the ten screws Y attaching the VFD BOARD as-
sembly. (See Fig.16)
Fig.15
Fig.16
3.1.11 Removing the TOUCH BOARD assembly (See Fig.17)
(1) Remove the three screws Z attaching the TOUCH BOARD
assembly.
Fig.17
VW
CN601
YX
Z
To Next Page
