Operating Manual HDS Standard 9.808-214.0
OPERATOR’S MANUAL
PRESSURE WASHER
8

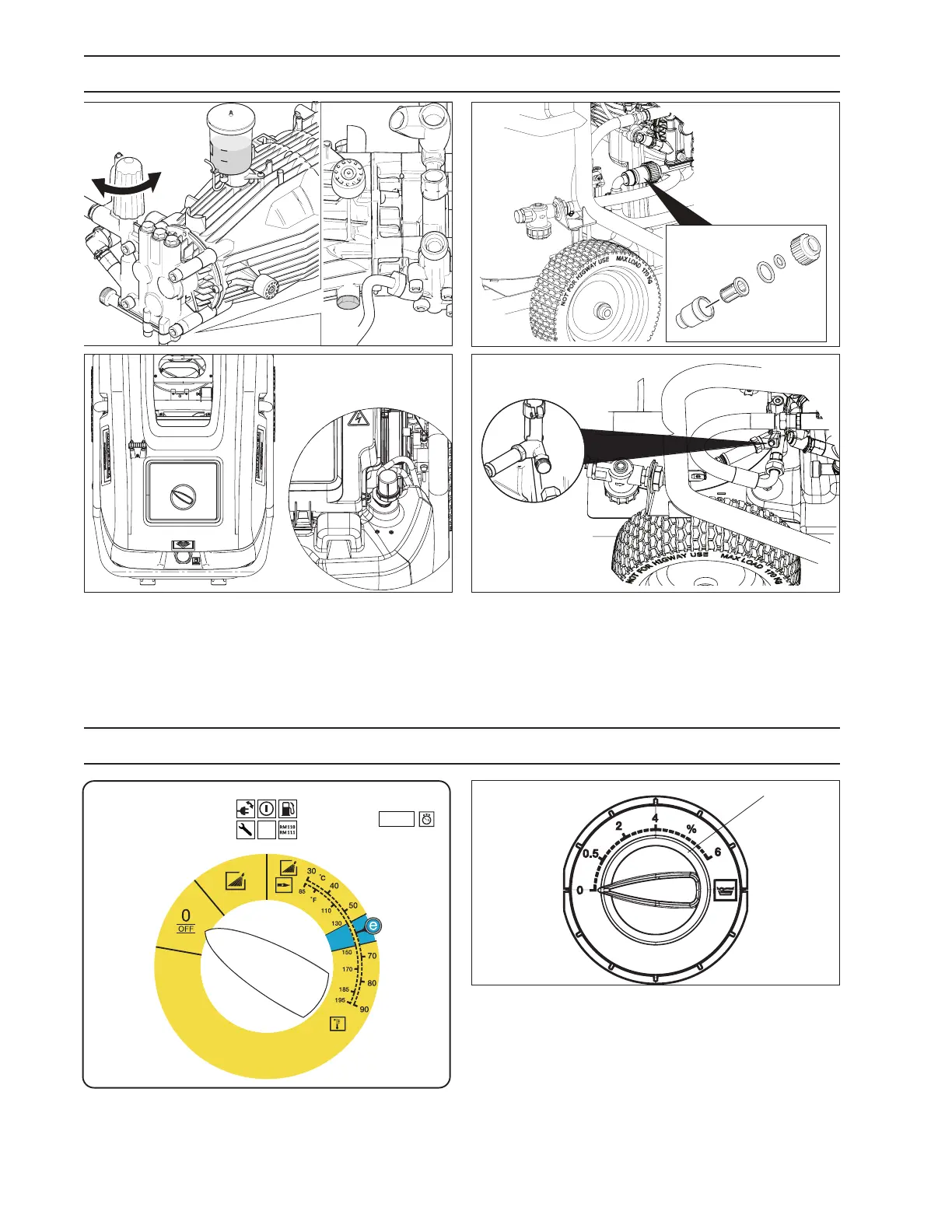

COMPONENT IDENTIFICATION
OPERATING CONTROLS
MIN
MAX
MAX MIN
6
1
7
8
2
3
45
A
B
1
2
3
4
6
5
7
8
A. Power switch / temperature control.
B. Dosage valve for detergent.
1. Operating mode: Cold water.
2. Operating mode: Eco operation (hot water
max.140°F/60°C).
3. Operating mode: Hot water.
4. Ready for use indicator lamp.
5. Fuel indicator lamp.
6. Indicator lamp service. (not HDS 2.2/12 Ed)
7. Indicator lamps system care. (not HDS 2.2/12 Ed)
8. Hourmeter (pump runtime).
1. Pressure/ow regulation of the pump (not HDS
2.2/12 Ed)
2. Oil tank
3. Oil drain screw
4. Detergent inlet backow valve
5. Water inlet lter
6. Fine lter (water) (not HDS 2.2/12 Ed)
7. Fuel lter
8. Water shortage safeguard
