Kärcher B 80 User Manual

- 8
** Appliance requires 4 batteries
1)
Complete set (24 V/240 Ah) incl. connect-
ing cable, order no. 4.035-393.0
2)
Complete set (24 V/180 Ah) incl. connect-
ing cable, order no. 4.035-387.0
3)
Complete set (24 V/170 Ah) incl. connect-
ing cable, order no. 4.035-388.0
4)
Complete set (24 V/180 Ah) incl. connect-
ing cable, order no. 4.035-440.0
몇 CAUTION
When the batteries are installed and re-
moved, the stability of the appliance can be
compromised; ensure a safe stance.
 Push the appliance forward about 2 m
so that the steering rollers point toward
the rear.
 Hold the wastewater reservoir by the
handle recess and swivel the reservoir
upwards toward the side.
 Insert all four batteries into the trough.
The 240 Ah batteries are seated flush in
the battery intake, no holding blocks are
required.
For the 170 Ah and 180 Ah batteries, 2
holding blocks must be installed in the
front and one in the right rear on the
floor. In addition to that, a foam strip is
inserted on the rear left.
ATTENTION
Pay attention to correct poles.

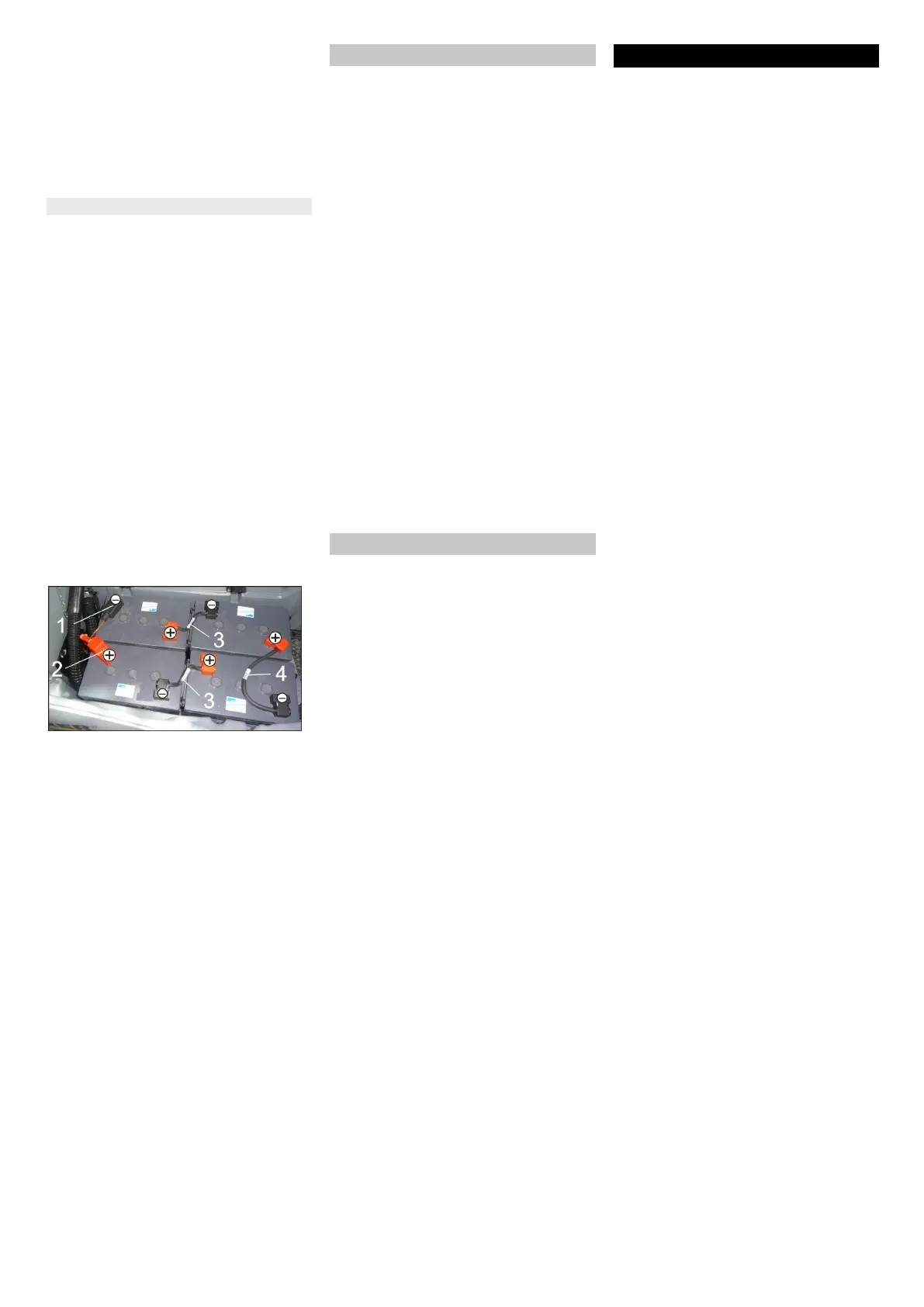

1 Connecting cable of battery (-)
2 Connecting cable of battery (+)
3 short connecting cable
4 long connecting cable
 Connect the batteries as shown, use
the included connecting cables for this.
 Connect the connection cable to the
free battery poles (+) and (-).
Note: The red connecting cable has an
increased protective layer. In order for
the tank not to touch when close, the
connecting cable must be connected as
shown in the illustration.
 Tilt the wastewater tank down.
ATTENTION
Charge the battery before commissioning
the machine.
몇 CAUTION
Risk of damage due to tipping appliance;
remove batteries only if the appliance is
equipped with a cleaning head.
 Remove the Intelligent Key.
 Push the appliance forward about 2 m
so that the steering rollers point toward
the rear.
 Hold the wastewater reservoir by the
handle recess and swivel the reservoir
upwards toward the side.
 Clamp off the minus pole of the battery.
 Clamp off the remaining cables from the
battery.
 Remove the support blocks.
 Remove the batteries.
몇 CAUTION
When the cleaning head is removed, the
stability of the appliance can be compro-
mised; ensure a safe stance.
Possibly support the rear to prevent tipping.
몇 CAUTION
When the batteries are installed and re-
moved, the stability of the appliance can be
compromised; ensure a safe stance.
 Dispose of the used batteries according
to the local provisions.
To ensure a reliable operation of the appli-
ance maintenance contracts can be con-
cluded with the competent Kärcher sales
office.
In case of danger of frost:
 Empty the fresh and waste water tank.
 Store the appliance in a frost-protected
room.
Insert batteries and connect
Removing the batteries
Maintenance contract
Frost protection
21EN
