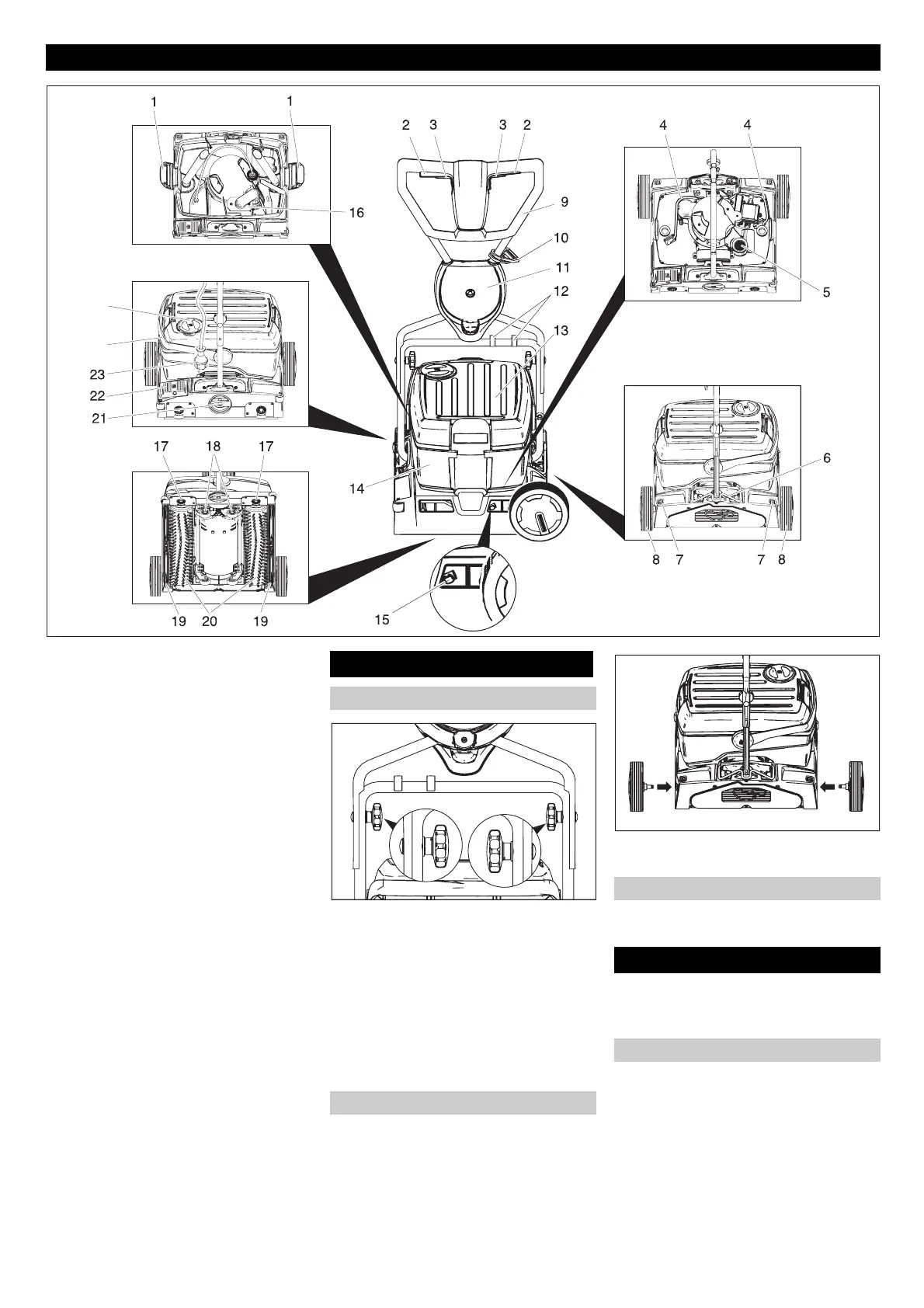

1 Lock for fresh water reservoir
2 Switch for brush drive
3 Switch for detergent solution
4 Hose for detergent solution
5 Lint sieve (suction)
6 Lock of pushing handle
7 Release button for the transport wheel
8 Transport wheel *
9 Push handle
10 Strain relief clamp
11 Support of the transport wheel *
12 Clip
13 Fresh water tank
14 Dirt water reservoir
15 Push-button for vacuum bar change
16 Float
17 Button for brush change
18 Chassis
19 Vacuum bar
20 Brushing rollers
21 Rotating handle for brush contact pres-
sure
22 Pedal to lower vacuum bar
23 Mains plug
24
Carrying handle for wastewater reservoir
25 Fresh water tank cover
* not included in the delivery with BR 40/10
C Classic
Î Slide the upper slider half onto the low-
er slider half.
Caution
Risk of damage. Do not pinch the cable
during the installation.
Î Align the borings (2 possible height ad-
justments).
Î Connect the slider halves to the lock
screws, discs and star grips.
Î
Fasten the cable to the slider using clips.
With the BR 40/10 C Classic, the transport
wheels are not included in the delivery. An
attachment kit with transport wheels is list-
ed in the chapter "Accessories".
Î Insert the transport wheel axles into the
borings on the appliance and lock them.
The brushes must be installed before the
initial operation (see "Maintenance works").
Note
To take the brush drive out of operation, im-
mediately release brush drive switch.
Caution
Risk of damage. Only use the recommended
detergents. With respect to different deter-
gents the operator bears the increased risk
regarding the operational safety, accident risk
and reduced product life of the appliance.
Only use detergents that are free from sol-
vents, hydrochloric acid and hydrofluoric acid.
Follow the safety instructions for using de-
tergents.
Operating elements
24
25
Before Commissioning
Installing the pushing handle
Installing the transport wheels
Installing the Brushes
Operation
Filling in detergents
10 EN
