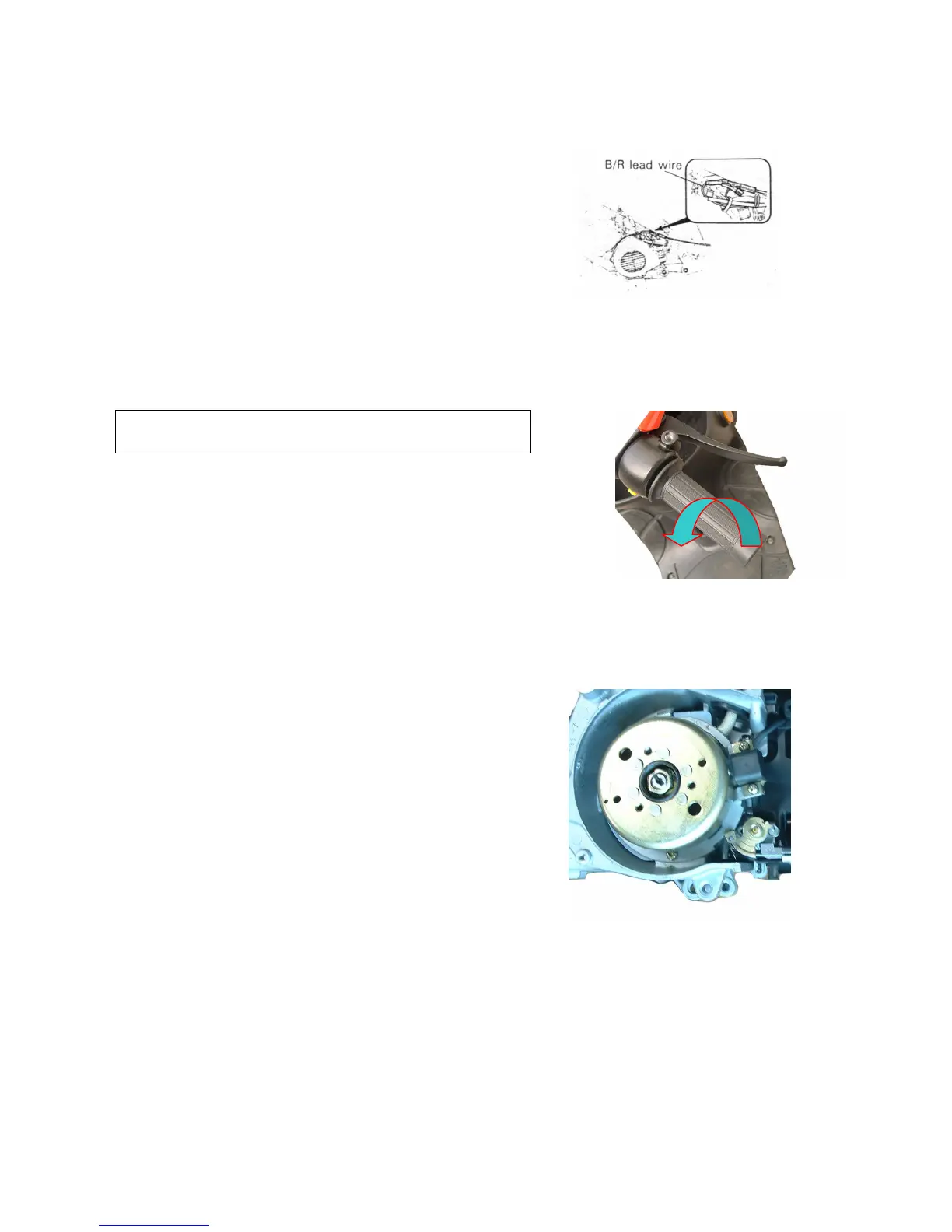

Connect an electric tachometer to the connecting protiion of the magneto lead wire as shown I nthe
illustration. Use the selector key “C’ position.
Tachometer
Adjust the throttle stop screw to obtain the idle r/min as follows:
Idle speed：1400±100r/min
Finally adjust the throttle cable play.
OIL PUMP
Inspect at initially 1000KM（600 miles ，2 months）
The engine oil is fed by the oil pump to the engine. The amount of oil fed to
it is regulated by engine speed and oil pump control lever which is controlled
by amount of throttle opening.
Check the oil pump in the following manner to confirm correct operation for
Throttle valve full opening position.
Turn the throttle grip full open.
Check whether the red mark ① on the oil pump control lever
Is aligned with the index mark ② when the throttle valve is positioned as above.
If the marks are not aligned, loosen lock nuts ③ and turn the adjuster ④ in or out to align the marks.
After align the marks, tighten the locknuts.
Caution：
Oil pump calbe adjustment must be done after throttle cable adjustment.
