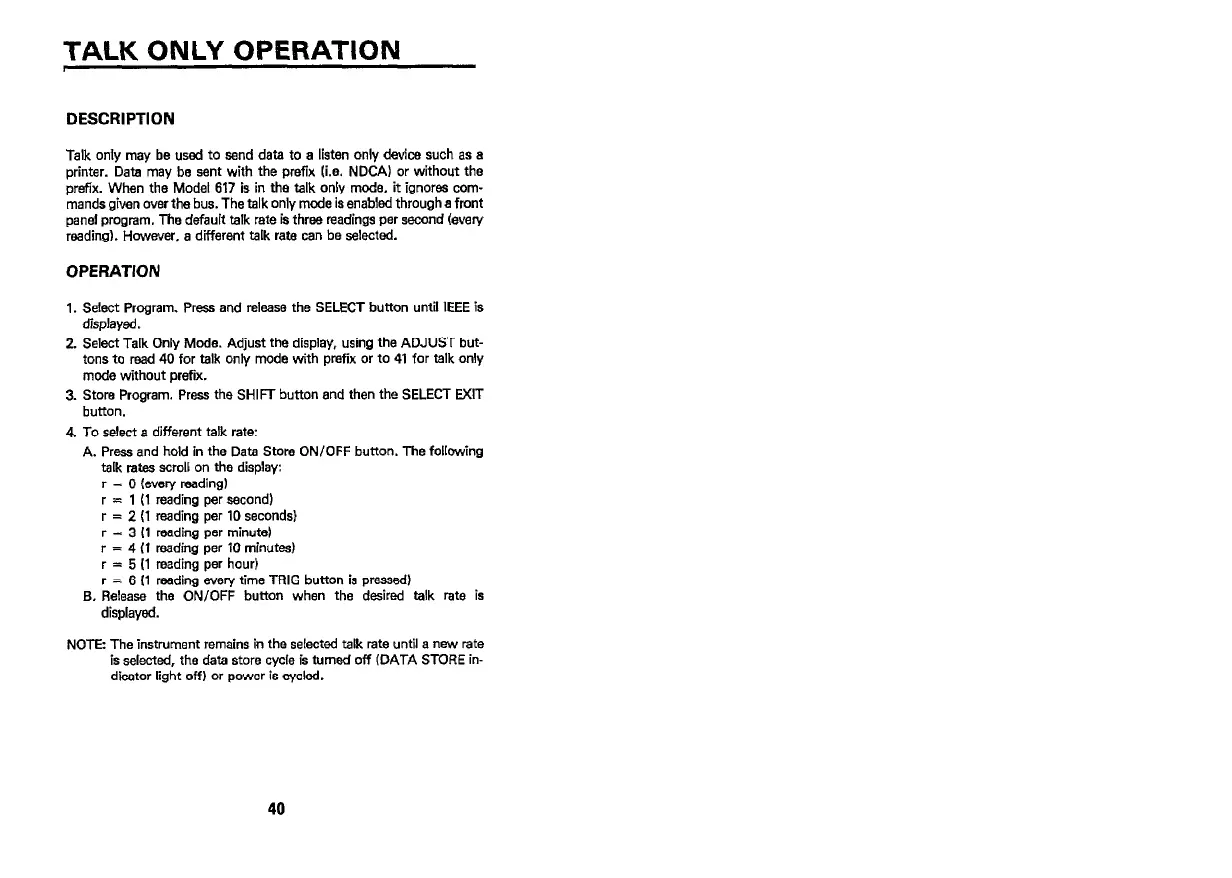

TALK ONLY OPERATION
DESCRIPTION
Talk only may be used to send data to a listen only device such as a
printer. Data may be sent with the prefix (i.e. NDCA) or without the
prefix. When the Model 617 is in the talk only mode, it ignores com-
mands g’nren over the bus. The talk only mode is enabled through a front
panel program. The default talk rate is three readings per second (every
reading). However, a different talk rats can be selected.
OPERATION
1. Select Program. Press and release the SELECT button until IEEE is
displayed.
2. Select Talk Only Mode. Adjust the display, using the ADJUST but-
tons to mad 40 for talk only mode with prafix or to 41 for talk only
mode without prefix.
3. Store Program. Press the SHIFT button end then the SELECT EXIT
button.
4. To select a different talk rate:
A. Press and hold in the Data Store ON/OFF button. The following
talk ratas scroll on the display:
r = 0 (every reading)
r = 1 (1 reading per second)
r = 2 (1 reading par 10 seconds)
r = 3 I1 reading per minute1
r = 4 (1 reading per 10 minutes)
r = 5 (1 reading per hour)
r = 6 (1 reading every time TRIG button is pressed)
B. Release the ON/OFF button when the desired talk rate is
displayed.
NOTE: The instrument remains in the selected talk rate until a new rate
is salacted, the data store cycle is turned nff (DATA STORE in-
dicator light off) or power is cycled.
40
