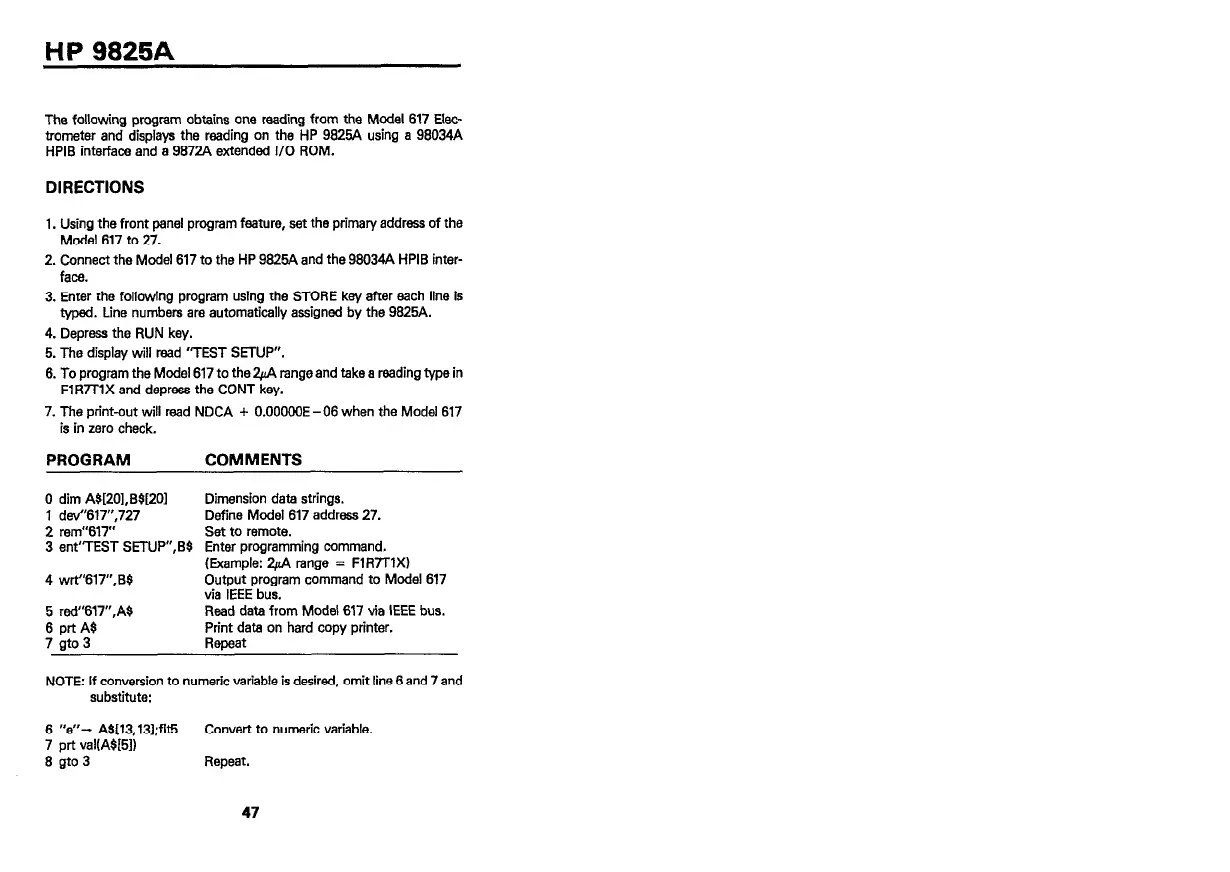

HP 9825A
The following program obtains one reading from the Model 617 Elac-
trometer and displays the reading on the HP 9826A using a 98034A
HPIB interface and a 9872A extended I/O ROM.
DIRECTIONS
1. Using the front panel program feature, set the primary address of the
Model 617 to 27.
2. Connect the Model 617 to the HP 9825A and the 98034A HPIB inter-
face.
3. Enter the following program using the STORE key after each line is
typed. Line numbers are automatically assigned by the 9826A.
4. Depress the RUN key.
5. The display will read “TEST SETUP”.
6. To program the Model 617 to the &A range and take a reading typ% in
FlR7TlX and depress the CONT key.
7. The print-out will read NDCA + O.OOOOOE-06 when the Model 617
is in zero check.
PROGRAM COMMENTS
0 dim A$f2Ol,B$f201
1 dev”617”,727
2 rem”617”
3 ent’TEST SETUP”,B$
4 wrr?617”,B$
5 rad”617” A$
6prtA8 ’
7 gto3
Dimension data strings.
Define Model 617 address 27.
Set to remote.
Enter programming command.
(Example: w range = FlR7TlX)
Output program command to Model 617
via IEEE bus.
Read data from Model 617 via IEEE bus.
Print data on hard copy printer.
Repeat
NOTE: If conversion to numeric variable is desired, omit line 6 and 7 and
substitute:
6 “e”- A$f13,131;flt6
Convert to numeric variable.
7 prt val(ASI51)
8 gto3 Repeat.
47
