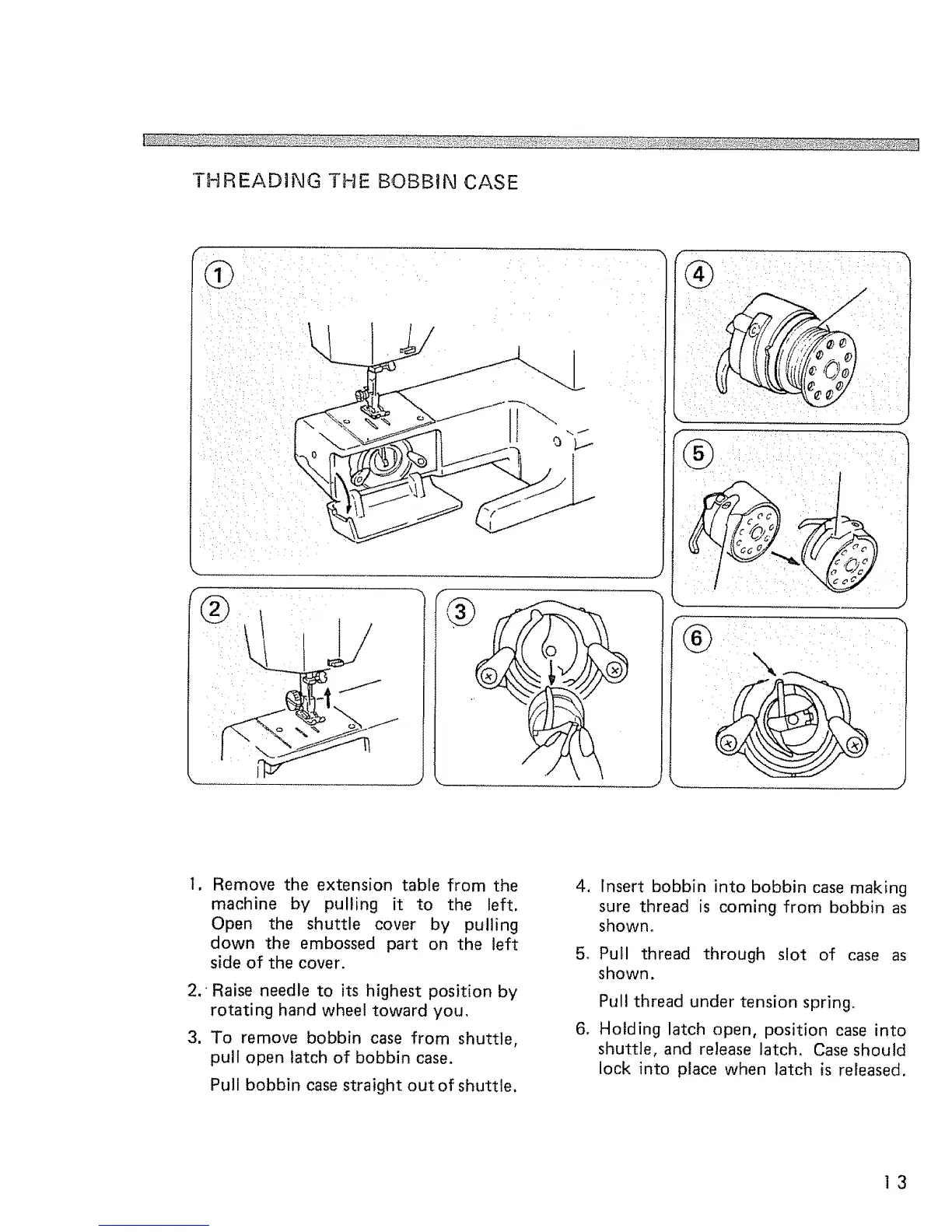

THREADING THE BOBBIN CASE
®
/
F
®
,J
(_ iI_:, _ '/_ _:i_,_:__, ii_ _
1. Remove the extension table from the
machine by pulling it to the left.
Open the shuttle cover by pulling
down the embossed part on the left
side of the cover,
2. 'Raise needle to its highest position by
rotating hand wheel toward you.
3. To remove bobbin case from shuttle,
pull open latch of bobbin case.
Pull bobbin case straight out of shuttle,
4. Insert bobbin into bobbin case making
sure thread is coming from bobbin as
shown°
5o Pull thread through slot of case as
shown.
Pull thread under tension spring.
6, Holding latch open, position case into
shuttle, and release latch. Case should
lock into place when latch is released.
]3
