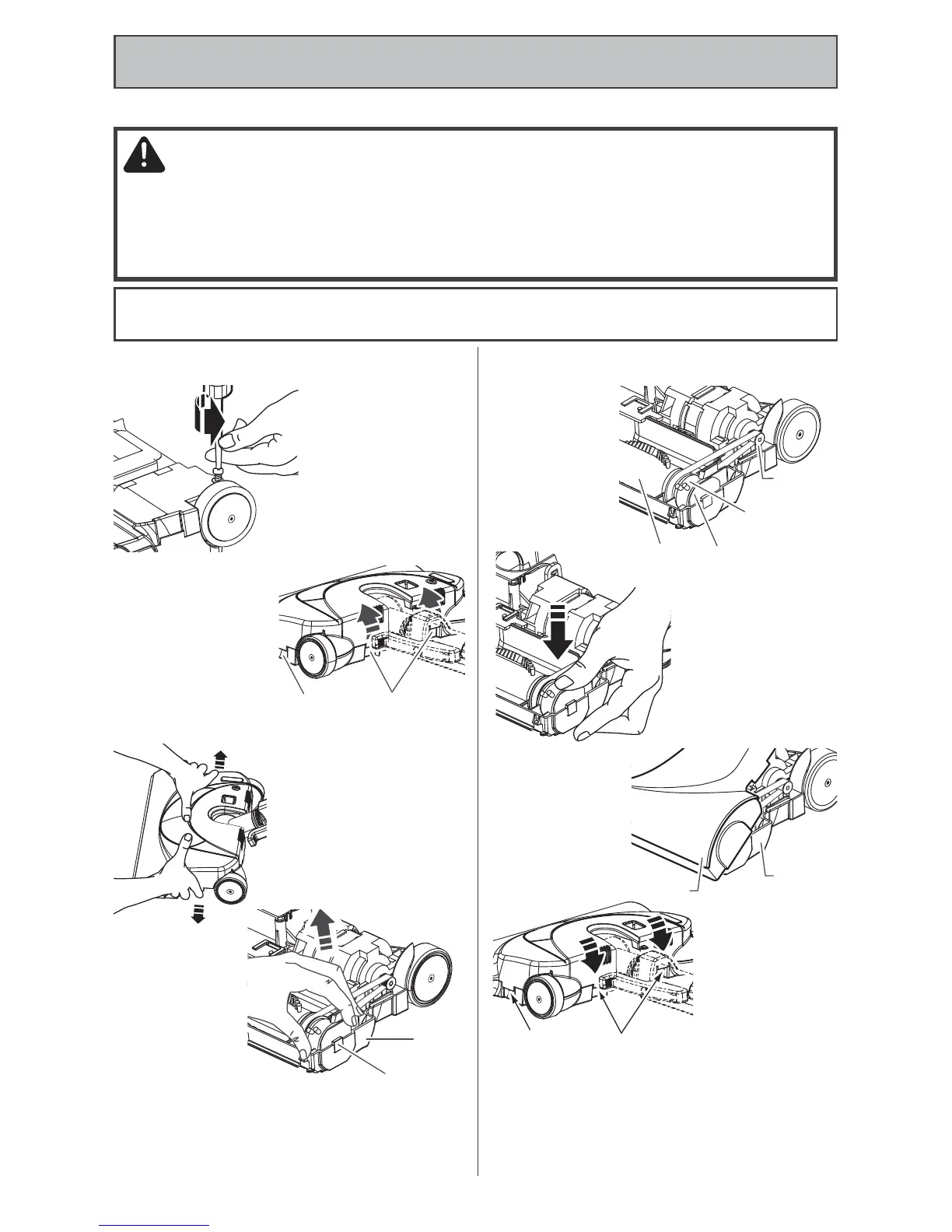

TO REMOVE BELT
1. Turn PowerMate
®
upside down.
2. Unscrew two (2)
PowerMate
®
cover
screws.
3. Turn PowerMate
®
right side up. Press
handle release
pedal and lower
the swivel. Lift
rear and side
latches up.
4. To remove cover,
grasp the sides and
pull out.
5. Lift agitator
assembly out
and remove
worn belt.
6. Check and clean end cap areas. See TO
CLEAN AGITATOR (page 22) section and
AGITATOR ASSEMBLY illustration (page 22)
for picture of complete agitator assembly.
Rear
Latches
Side
Latch
Base
End Cap
BELT CHANGING AND AGITATOR CLEANING
Always follow all safety precautions when performing maintenance on the PowerMate
®
.
WARNING
Electrical Shock Or Personal Injury Hazard.
Alwvacuum cleaner
before performing maintenance to the
vacuum cleaner
. Failure to do so could result in electrical shock or personal injury from
vacuum cleaner suddenly starting.
POWERMATE
®
CARE
TO REPLACE BELT
1. Install new
belt over
motor drive,
then over
belt path.
NOTE: See PARTS
AND FEATURES
(page 5). for Belt
number.
2. Push agitator
assembly back
into PowerMate
®
.
3. Line up front
of cover and
base. Rest
cover on front
edge of base as
shown.
4. Rotate cover
back. Press cover
and rear latches
snap into place.
Make sure there is no gap between the
cover and base.
5. Turn PowerMate
®
upside down and re-
place two (2) cover screws.
Rear
Latches
Side
Latch
Motor
Drive
Belt
Path
End Cap
Agitator
Cover
Base
- 21 -
