Right Side burner
□ Remove plastic packaging from side burner valve. Remove side burner grate from within side burner shelf.

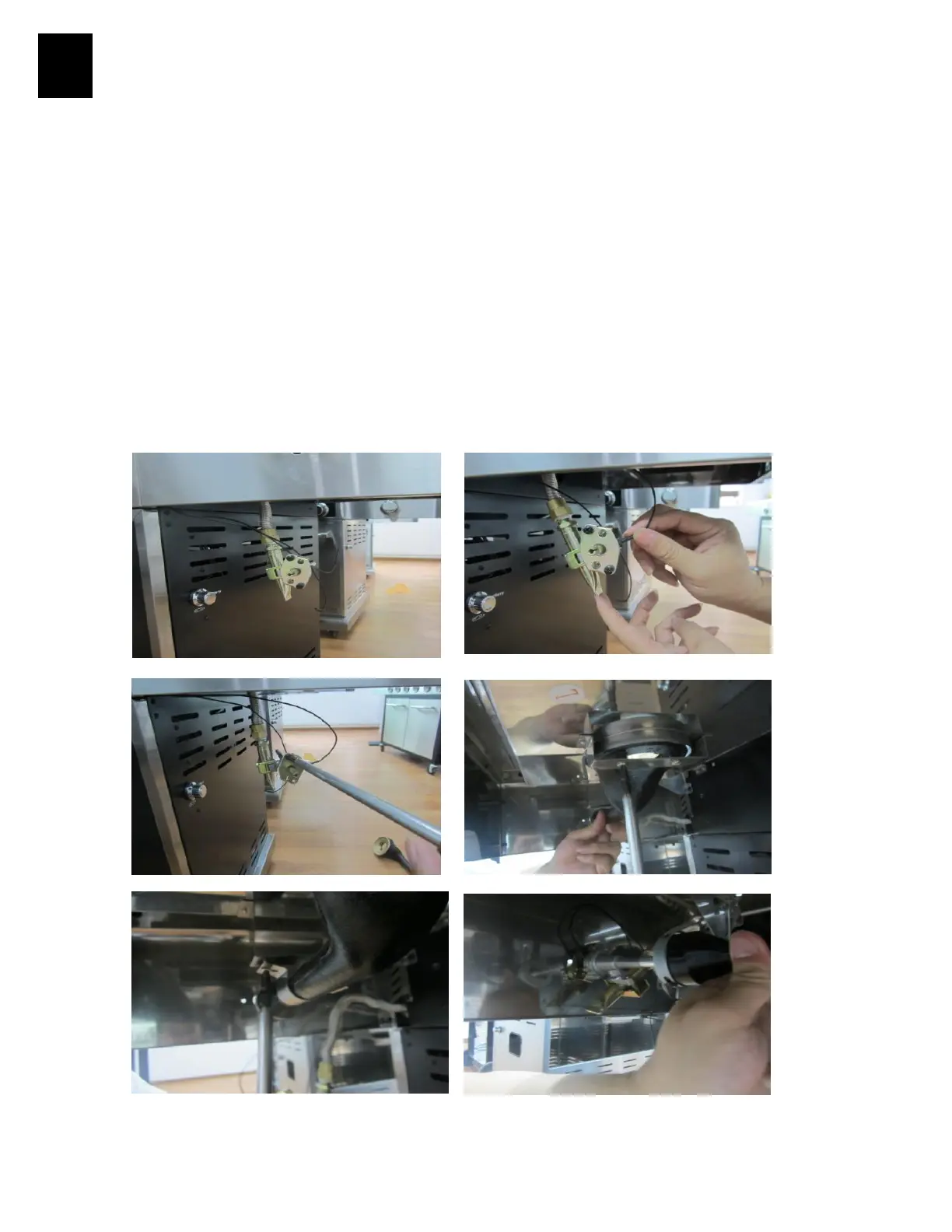

□ Connect flat igniter wire tip to the igniter pin on the side burner valve. (A & B)
□ Remove the 2 pre-installed screws from the valve control stem and set them aside. (C)
□ Loosen the side burner to insert gas valve. To loosen, remove the two screws on front bracket, and loosen the
rear bracket screws halfway. (D&E)
□ Insert the gas valve into the side burner (F), and insert the valve control stem through the hole in shelf fascia. (I)
□ Replace side burner front bracket and tighten in place with 2 previously removed screws. (G) Tighten screws
on back bracket. (H)
□ Attach bezel to fascia and install previously removed 2 screws. Tighten the 2 screws. (J)
□ Push control knob onto side burner valve stem. Make sure the round mark on the knob is in align with “OFF” (K)
Replace side burner grate. (L)
□ Connect the round igniter wire tip to the pin on the white electrode protruding from the bottom of the side burner
shelf. (M)
□ Connect the LED wires as shown. (N)
To Next Page
