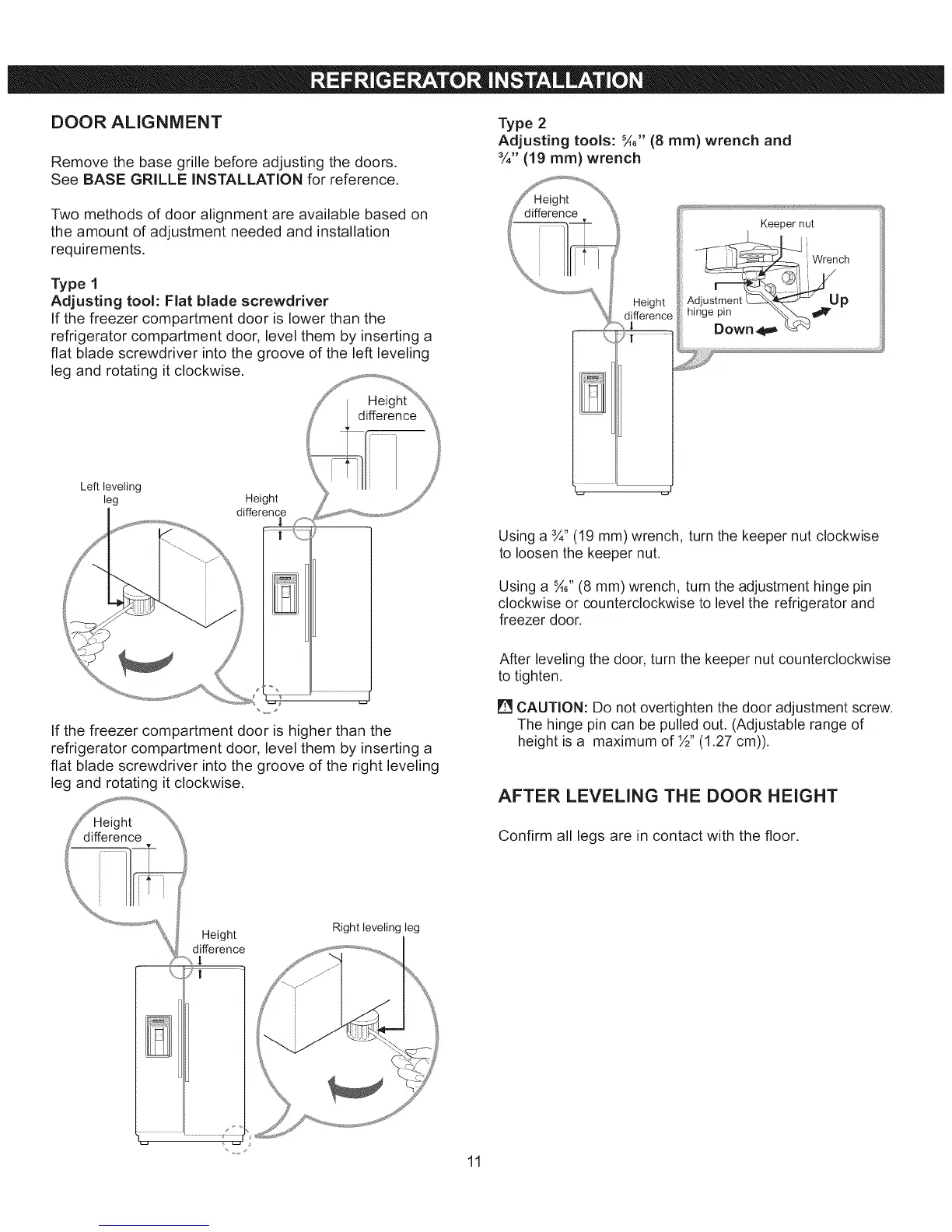

DOOR ALIGNMENT
Remove the base grille before adjusting the doors.
See BASE GRILLE INSTALLATION for reference.
Type 2
Adjusting tools: %6" (8 mm) wrench and
3A" (19 ram) wrench
Two methods of door alignment are available based on
the amount of adjustment needed and installation
requirements.
Type 1
Adjusting tool: Fiat blade screwdriver
If the freezer compartment door is lower than the
refrigerator compartment door, level them by inserting a
flat blade screwdriver into the groove of the left leveling
leg and rotating it clockwise.
Left leveling
leg
Height
difference
Height
difference
Keeper nut
_Wrench
hinge pin "_,_ _V"
Down,_,_ _'¢'_
Using a ¾" (19 mm) wrench, turn the keeper nut clockwise
to loosen the keeper nut.
Using a %6"(8 mm) wrench, turn the adjustment hinge pin
clockwise or counterclockwise to level the refrigerator and
freezer door.
After leveling the door, turn the keeper nut counterclockwise
to tighten.
If the freezer compartment door is higher than the
refrigerator compartment door, level them by inserting a
flat blade screwdriver into the groove of the right leveling
leg and rotating it clockwise.
CAUTION: Do not overtighten the door adjustment screw.
The hinge pin can be pulled out. (Adjustable range of
height is a maximum of ½" (1.27 cm)).
AFTER LEVELING THE DOOR HEIGHT
Height
difference
_._
Right leveling leg
Confirm all legs are in contact with the floor.
11
