Disassemble and repair the unit only after pulling out power plug from the outlet.
DISASSEMBLY INSTRUCTIONS
11

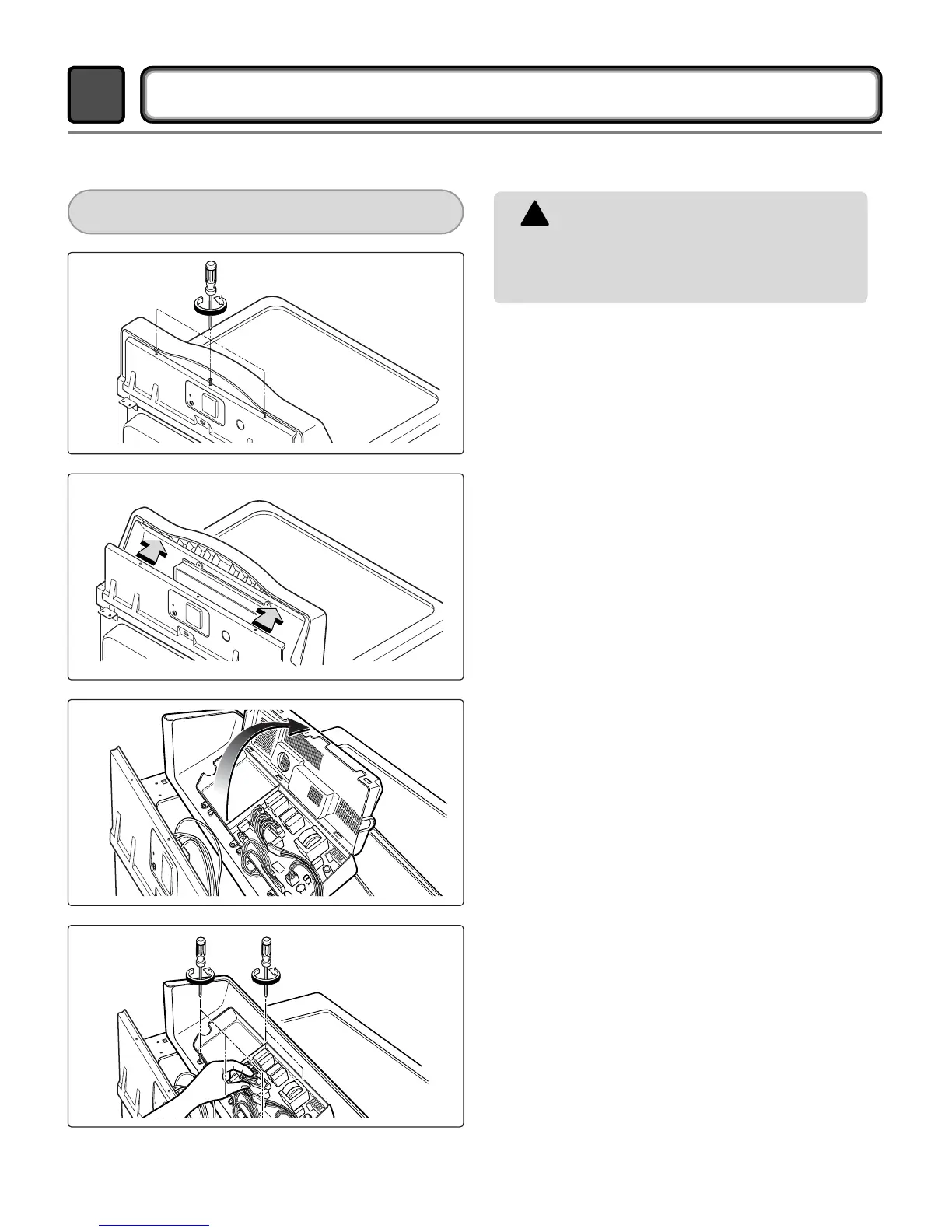

1.
Remove 3 screws on the rear Panel.
CONTROL PANEL ASSEMBLY
2.
Pull the control panel forward.
3.
Open the cover protect.
4.
Disconnect connectors.
5.
Remove 5 screws.
6.
Disassemble the controller assembly.
When you disassemble the control panel, be
sure to take gloves and careful panel frame’s
edge. Failure to do so can cause serious injury.
