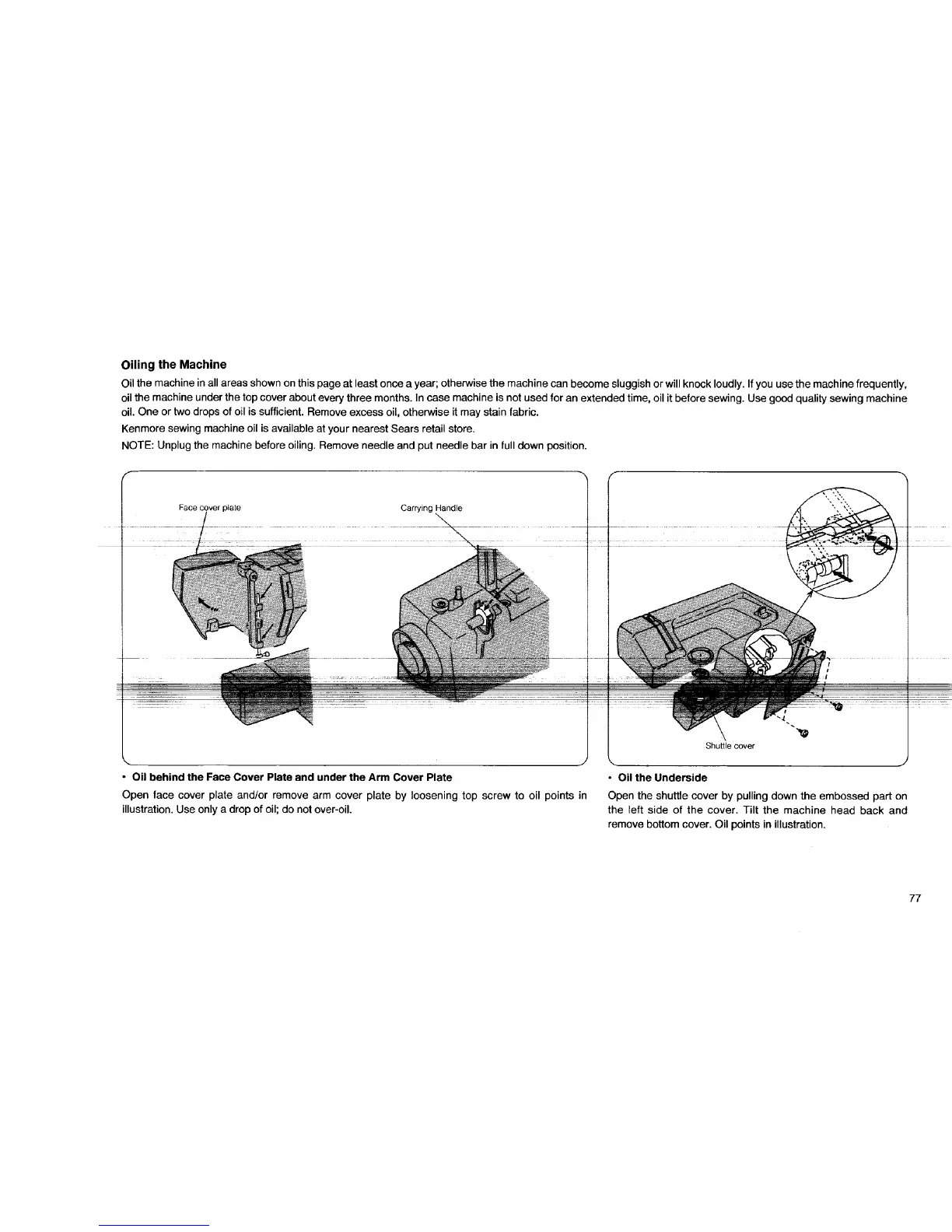

Oiling the Machine
Oil the machine in all areas shown on this page at least once a year; otherwise the machine can become sluggish or will knock loudly. If you use the machine frequently,
oilthe machine under the top cover about every three months. In case machine is not used for an extended time, oil it before sewing. Use good quality sewing machine
oil. One or two drops of oil is sufficient. Remove excess oil, otherwise it may stain fabric.
Kenmore sewing machine oil is available at your nearest Sears retail store.
NOTE: Unplug the machine before oiling. Remove needle and put needle bar in full down position.
Face cover plate Carrying Handle
Shuttle cover
• Oil behind the Face Cover Plate and under the Arm Cover Plate
Open face cover plate and/or remove arm cover plate by loosening top screw to oil points in
illustration. Use only a drop of oil; do not over-oil.
• Oil the Underside
Open the shuttle cover by pulling down the embossed part on
the left side of the cover. Tilt the machine head back and
remove bottom cover. Oil points in illustration.
77
