Kenwood KDC-1020 User Manual

Tuner features
• The faceplate is a precision piece of equipment and can be
damaged by shocks or jolts. For that reason, keep the faceplate in
its special storage case while detached.
• Do not expose the faceplate or its storage case to direct sunlight
or excessive heat or humidity. Also avoid places with too much
dust or the possibility of water splashing.

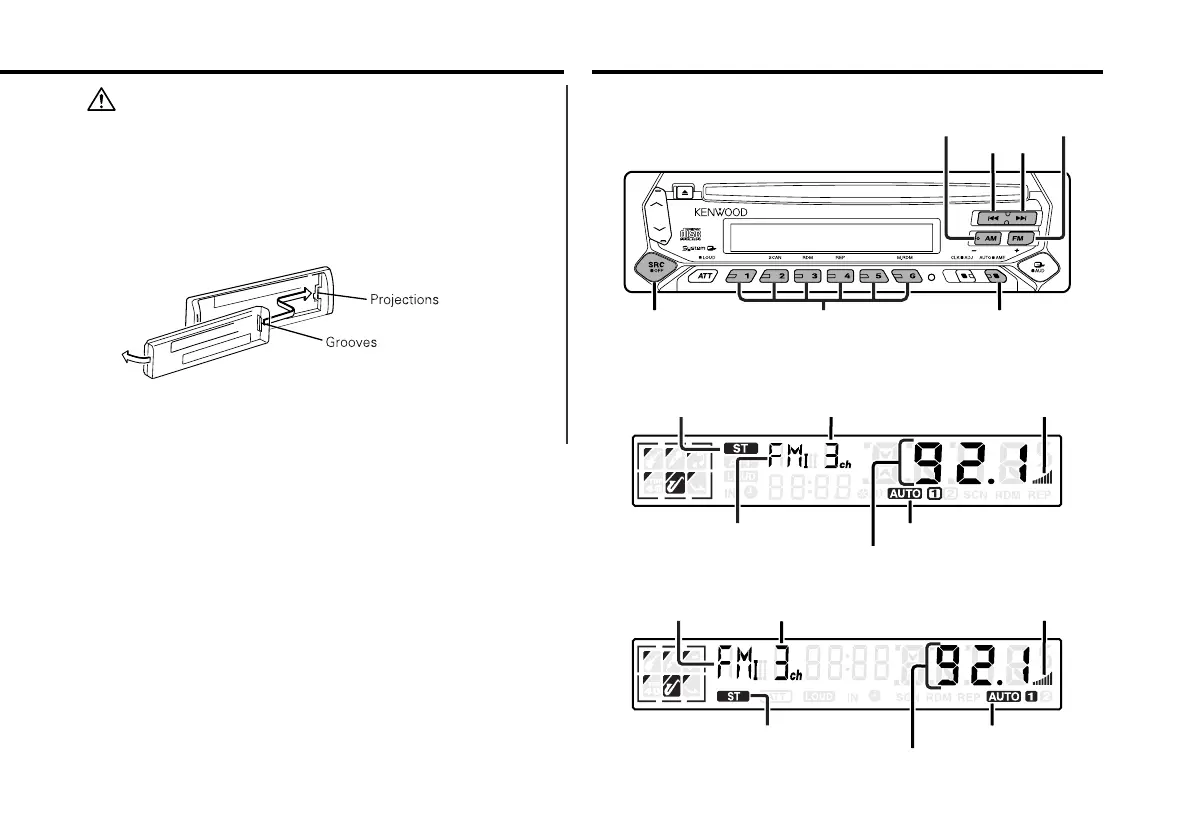

Reattaching the Faceplate
1 Align the projections on the unit with the grooves on the
faceplate.
2 Push the faceplate in until it clicks.
The faceplate is locked in place, allowing you to use the unit.
— 9 —
AM
CRSC
FM/
AUTO/
AME
#1 - 6SRC
¢4
KDC-4020/KDC-3020/KDC-2020
KDC-1020/KDC-1020S
ST indicator
Band display
Preset station number
Frequency display
AUTO indicator
ST indicator
Band display
Preset station number
Frequency display
AUTO indicator
CRSC indicator
CRSC indicator
KDC-4020_U.S 01.11.29 10:28 AM Page 9

Kenwood KDC-1020 Specifications

M Tuner Section

frequency range (200 kHz space)	87.9 MHz – 107.9 MHz
frequency range (50 kHz space)	87.5 MHz – 108.0 MHz
usable sensitivity (S/N = 30dB)	9.3dBf (0.8 µV/75 Ω)
quieting sensitivity (S/N = 50dB)	15.2dBf (1.6 µV/75 Ω)
frequency response (±3 dB)	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity (±400 kHz)	≥ 80 dB
stereo separation (1 kHz)	40 dB

AM Tuner Section

frequency range (10 kHz space)	530 kHz – 1700 kHz
frequency range (9 kHz space)	531 kHz – 1611 kHz
usable sensitivity (S/N = 20dB)	28 dBµ (25 µV)

CD Player Section

laser diode	GaAlAs (λ=780 nm)
digital filter (D/A)	8 Times Over Sampling
D/A Converter	1 Bit
spindle speed	500 – 200 rpm (CLV)
frequency response (±1 dB)	10 Hz – 20 kHz
total harmonic distortion (1 kHz)	0.01 %
signal to noise ratio (1 kHz)	96 dB
dynamic range	93 dB
channel separation	85 dB

Audio Section

maximum output power	50 W x 4
full bandwidth power (at less than 1% THD)	22 W x 4
bass	100 Hz ±10 dB
middle	1 kHz ±10 dB
treble	10 kHz ±10 dB
preout level / load (during disc play)	1800 mV/10 kΩ
preout impedance	≤ 600 Ω

General

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 53 x 157 mm
weight	3.1 lbs (1.4 kg)
