English
— 16 —
Installation

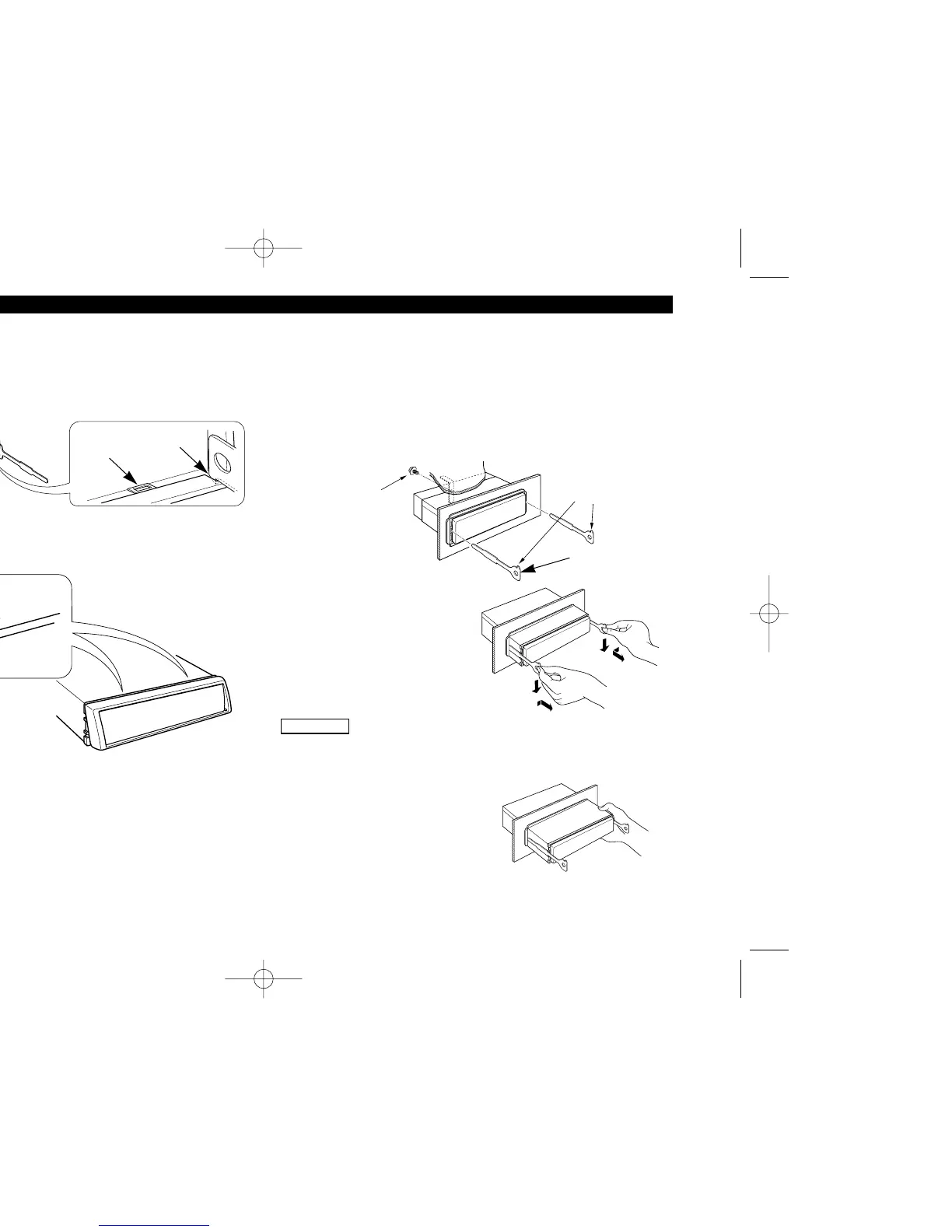

Removing the hard rubber frame
■
When the lower level is removed, remove the upper two
locations.
2
The frame can be removed from the top side in the same
manner.
NOTE
Catch
Lock
Engage the catch pins on the removal tool and remove the two
locks on the lower level.
Lower the frame and pull it forward as shown in the figure.
1
Accessory3
Removal tool
Accessory3
Removal tool
Accessory4
Removing the Unit
■
Lower the removal tool
toward the bottom, and pull
out the unit halfway whilst
pressing towards the
inside.
4
Pull the unit all the way out
with your hands, being
careful not to drop it.
5
Be careful to avoid injury from the catch pins on the removal
tool.
2CAUTION
Catch facing up
Refer to the section "Removing the hard rubber frame (P.16)"
and then remove the hard rubber frame.
Remove the Hex-head screw with integral washer (M4×8mm)
on the back panel.
Insert the two removal tools deeply into the slots on each side,
as shown.
3
2
1
KDC-115S_U.S 00.12.26 3:40 PM Page 16
