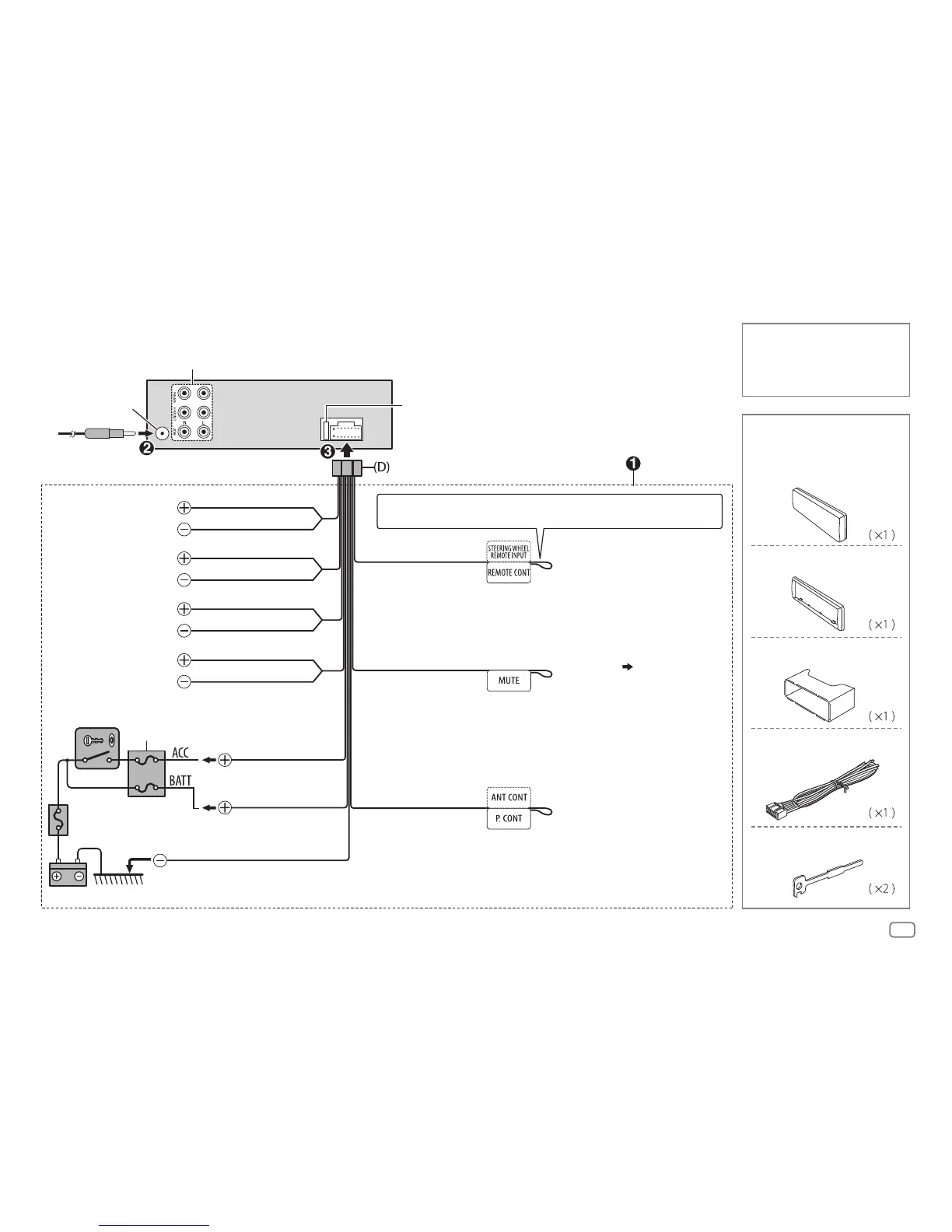

Wiring connection
Fuse (10A)
Rear, front, subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
If no connections are made, do not let the wire come out from the tab.
Part list for installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
When connecting to an external
amplifier, connect its ground
wire to the car’s chassis to avoid
damaging the unit.
Blue/White
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote control
wire)
To the power control terminal when
using the optional power amplifier
or to the antenna control terminal in
the vehicle
Brown
(Mute control wire)
To the terminal that is grounded
when the telephone rings or during
conversation
(
14
)
(To connect the Kenwood navigation
system, refer your navigation
manual.)
To the steering wheel remote
control adapter
