Kenwood KR-6030 Service Manual

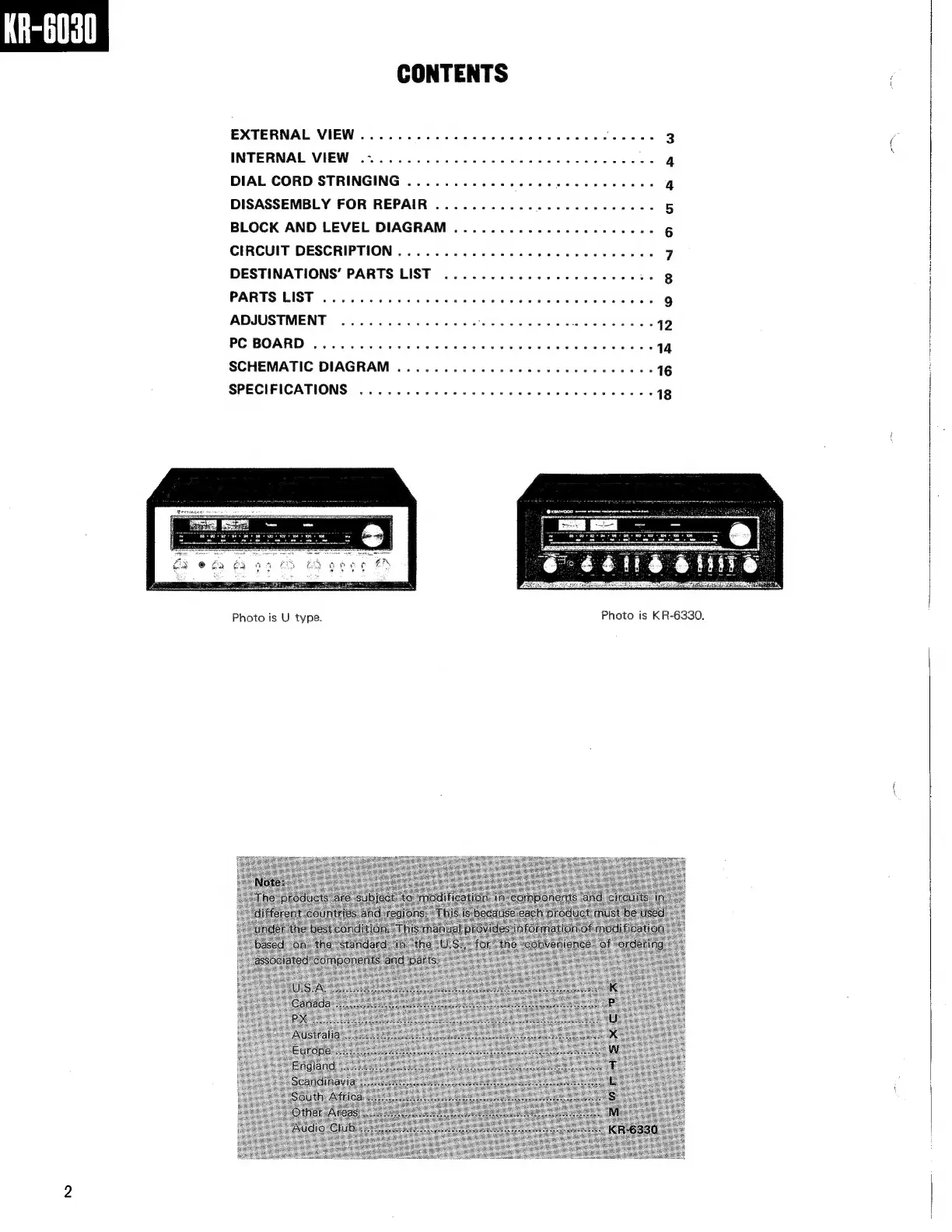

CONTENTS
EXTERNAL VIEW.........
INTERNAL VIEW .........
DIAL CORD STRINGING ....
DISASSEMBLY FOR REPAIR .
BLOCK AND LEVEL DIAGRAM
CIRCUIT DESCRIPTION .....
DESTINATIONS’ PARTS LIST
PARTS LIST .............
ADJUSTMENT ...........
PC BOARD ..............
SCHEMATIC DIAGRAM .....
SPECIFICATIONS .........
Photo is U type.
Photo is KR-6330.
om.

Kenwood KR-6030 Specifications

Amplifier Section

power output	80 watts per channel
total harmonic distortion	0.1% at rated power into 8 ohms
intermodulation distortion	0.1% at rated power into 8 ohms

Power

power consumption	600 W at full power
dynamic power output	340 W
maximum input level for phono	250 mV (RMS), T.H.D. 0.1% at 1, 000 Hz

Weight and Dimensions

weight	30.9 lbs (14.0 kg)
gross weight	35.2 lbs (16.0 kg)
dimensions	W 18-29/32" (480 mm), H 5-7/8" (149 mm), D 15-15/16" (405 mm)
