Kenwood KR-6030 Service Manual

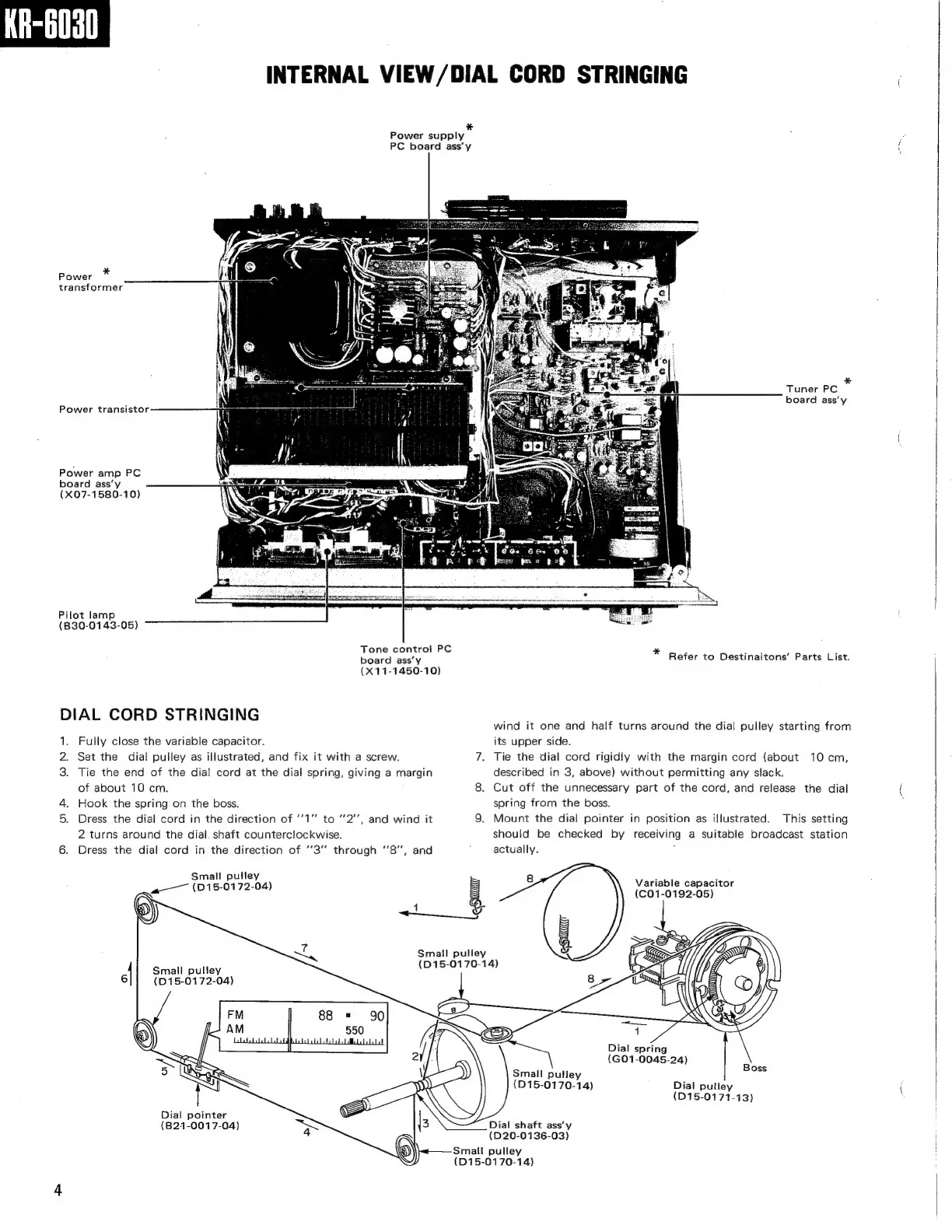

INTERNAL VIEW/DIAL CORD STRINGING
*
Power supply
PC board ass‘'y
Power
transformer
Power transistor
Power amp PC
board ass‘y
(X07-1580-10)
Pilot lamp
(B30-0143-05)
Tone contro! PC
board ass’y
(X11-1450-10)
DIAL CORD STRINGING
Fully close the variable capacitor.
2. Set the dial pulley as illustrated, and fix it with a screw.
3. Tie the end of the dial cord at the dial spring, giving a margin
of about 10 cm.
4. Hook the spring on the boss.
5. Dress the dial cord in the direction of “1” to ‘’2’', and wind it
2 turns around the dial. shaft counterclockwise.
6. Dress the dial cord in the direction of ‘‘3’’ through ‘8’, and
=
Small pulley
ae: (D15-0172-04)
Small pulley
6 (D15-0172-04)
. {D15-0170-14)
Dial pointer \ NS
(B21-0017-04) =
(D15-0170-14)
8 Variable capacitor
(C01-0192-05)
«atts :
se Smail pulley oe KK Z Z
ae
board ass’y
*. Refer to Destinaitons’ Parts List.
wind it one and half turns around the dial pulley starting from
its upper side.
7. Tie the dial cord rigidly with the margin cord (about 10cm,
described in 3, above) without permitting any slack.
8. Cut off the unnecessary part of the cord, and release the dial
spring from the boss.
9. Mount the dial pointer in position as illustrated. This setting
should be checked by receiving a suitable broadcast station
actually. :
Dial spring
(GO1-0045-24)
Boss
Small pulley ae
ial pulley
(D15-0171-13)
Dial shaft ass‘y
(D20-0136-03)
Small pulley
(D15-0170-14)
*
Tuner PC

Kenwood KR-6030 Specifications

Amplifier Section

power output	80 watts per channel
total harmonic distortion	0.1% at rated power into 8 ohms
intermodulation distortion	0.1% at rated power into 8 ohms

Power

power consumption	600 W at full power
dynamic power output	340 W
maximum input level for phono	250 mV (RMS), T.H.D. 0.1% at 1, 000 Hz

Weight and Dimensions

weight	30.9 lbs (14.0 kg)
gross weight	35.2 lbs (16.0 kg)
dimensions	W 18-29/32" (480 mm), H 5-7/8" (149 mm), D 15-15/16" (405 mm)
