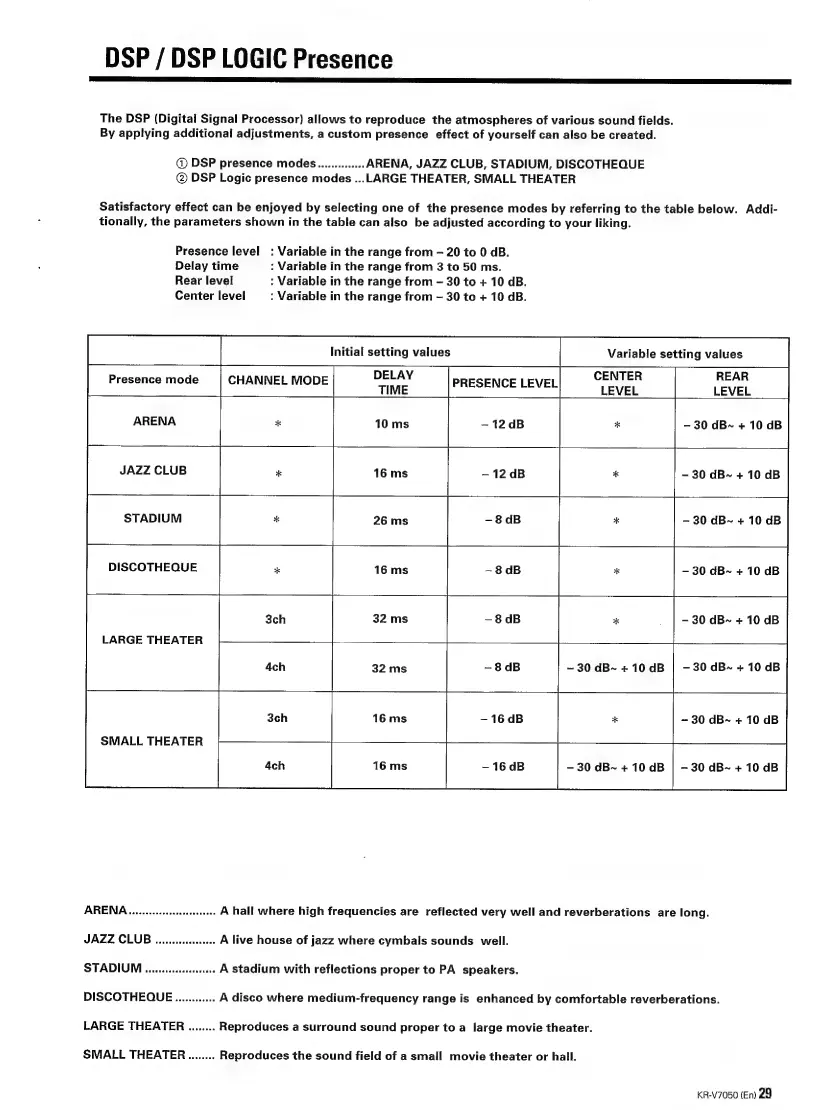

DSP / DSP LOGIC Presence
NEE
The DSP (Digital Signal Processor) allows to reproduce the atmospheres of various sound fields.
By applying additional adjustments, a custom presence effect of yourself can also be created.
@ DSP presence modes.............. ARENA, JAZZ CLUB, STADIUM, DISCOTHEQUE
@ DSP Logic presence modes ...LARGE THEATER, SMALL THEATER
Satisfactory effect can be enjoyed by selecting one of the presence modes by referring to the table below. Addi-
tionally, the parameters shown in the table can also be adjusted according to your liking.
Presence level : Variable in the range from — 20 to 0 dB.
Delay time : Variable in the range from 3 to 50 ms.
Rear level : Variable in the range from — 30 to + 10 dB.
Center level : Variable in the range from — 30 to + 10 dB.
i
Initial
setting
values
Variable
setting
values
DELAY
CENTER
REAR
Presence
mode
CHANNEL
MODE
TIME
*
LARGE THEATER
—8dB ~ 30 dB~ +10dB | -—30 dB~ + 10 dB
a 16 ms -— 16 dB - 30 dB~ + 10 dB | -30 dB~ + 10 dB
ARENA... eeeeeeneseees A hall where high frequencies are reflected very well and reverberations are long.
JAZZ CLUB ...... eee A live house of jazz where cymbals sounds well.
STADIUM uence A stadium with reflections proper to PA speakers.
DISCOTHEQUE ............ A disco where medium-frequency range is enhanced by comfortable reverberations.
LARGE THEATER ........ Reproduces a surround sound proper to a large movie theater.
SMALL THEATER ........ Reproduces the sound field of a small movie theater or hall.
KR-V7050 (En) 29
