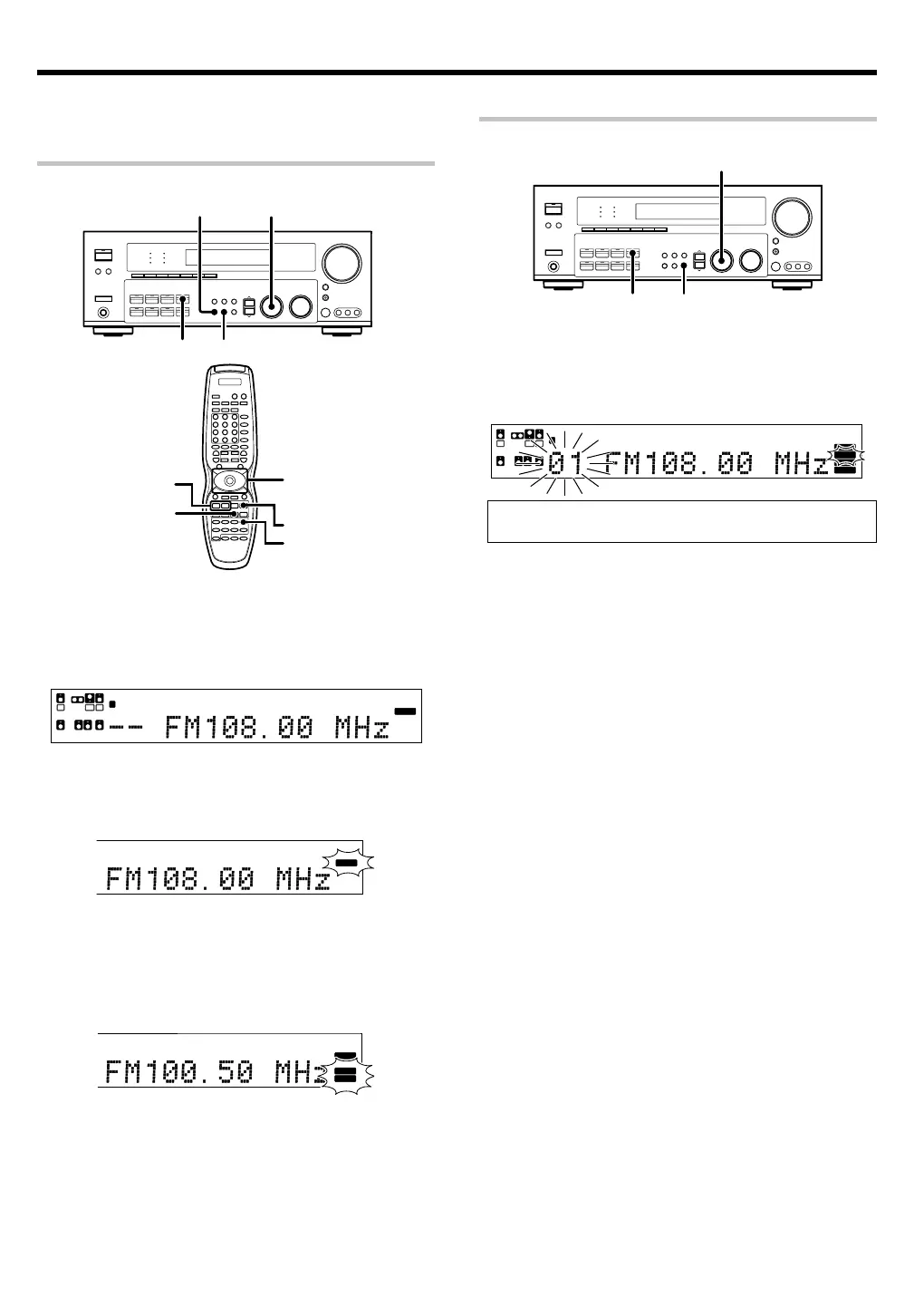

Presetting radio stations manually
MULTI CONTROL
MEMORYTUNER
1
Tune to the station you want to store.
2
Press the MEMORY key while receiving the station.
Blinks for 5 seconds Lights for 5 seconds
L
SL S SB SR
C RSW
LFE
SP MUTE
OPTICAL 6CH INPUT
COAXIAL ANALOG 96kHzfs
CINEMA EQ.
ACTIVE EQ.
DSP MODE
DTS.
MATRIX
DISCRETE
DOLBY DIGITAL
PRO LOGIC
STEREO
LOUDNESS
NEO:6
CSII
A B CLIP
AUTO DETECT THX
AUTO
RDS
RTY
STEREO
TUNED
Surround EX
MEMORY
Proceed to step 3 within 5 seconds.
(If more than 5 seconds elapse, press the MEMORY key again).
3
Use the MULTI CONTROL knob or Joystick ( 5 / ∞ ) to select
one of the station presets (1 – 40).
4
Press the MEMORY key again to confirm the setting.
• Repeat steps 1, 2, 3, and 4 to store as many stations as
necessary.
• If you store a station at a previously used preset, the old station will
be replaced by the new one.
Listening to radio broadcasts
The receiver can store up to 40 stations in the memory and recall them
by one-touch operation.
Tuning radio stations
BAND
MULTI CONTROL
TUNER AUTO
Joystick
(MULTI CONTROL 5 / ∞ )
AUTO
TUNING 1/ ¡
TUNER
BAND
1
Use the TUNER key to select the tuner.
2
Use the BAND key to select the desired broadcast band.
Each press switches the band.
L
SL S SB SR
C RSW
LFE
SP MUTE
OPTICAL 6CH INPUT
COAXIAL ANALOG 96kHzfs
CINEMA EQ.
ACTIVE EQ.
DSP MODE
DTS.
MATRIX
DISCRETE
DOLBY DIGITAL
PRO LOGIC
STEREO
LOUDNESS
NEO:6
CSII
A B CLIP
AUTO DETECT THX
AUTO
RDS
RTY
MEMO
STEREO
TUNED
Surround EX
3
Use the AUTO key to select the desired tuning method.
Each press switches the tuning method to either auto or manual
tuning.
“AUTO” indicator lights up in the display.
I
CAL 6CH INPUT
XIAL ANALOG 96kHzfs
CINEMA EQ.
ACTIVE EQ.
DSP MODE
DTS.
MATRIX
DISCRETE
DOLBY DIGITAL
PRO LOGIC
STEREO
LOUDNESS
NEO:6
CSII
AUTO DETECT THX
RDS
RTY
MEMO
STEREO
TUNED
Surround EX
AUTO
• Normally, set to “AUTO” (auto tuning). If the radio waves are weak
and there is a lot of interference, switch to manual tuning. (With
manual tuning, stereo broadcasts will be received in monaural.)
4
Use the MULTI CONTROL knob or Joystick ( 5 / ∞ ), or TUNING
1 / ¡ keys to select the station.
“STEREO” lights when a broadcast is being received in stereo.
C
AL 6CH INPUT
X
IAL ANALOG 96kHzfs
CINEMA EQ.
ACTIVE EQ.
DSP MODE
DTS.
MATRIX
DISCRETE
DOLBY DIGITAL
PRO LOGIC
STEREO
LOUDNESS
NEO:6
CSII
AUTO DETECT THX
AUTO
RDS
RTY
MEMO
Surround EX
STEREO
TUNED
“TUNED” is displayed when a station is received.
Auto tuning : The next station is tuned automatically.
Manual tuning : Turn the knob or use the Joystick (5/∞) to
select the desired station.
•VR6060/21-28/EN 3/11/02, 8:52 PM26
