TK-8302/8302H
28

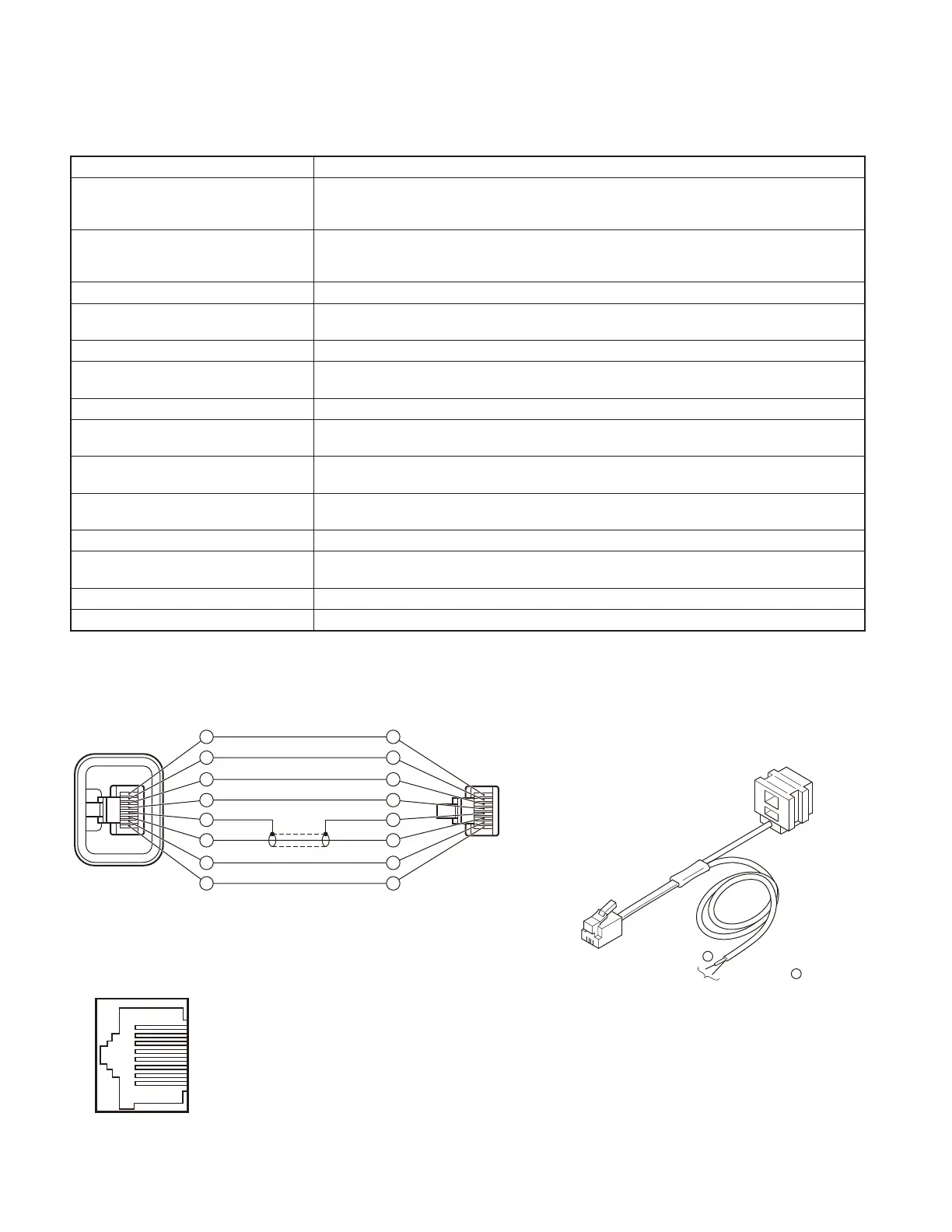

Test Equipment Required for Alignment
Test Equipment Major Specifi cations
1. Standard Signal Generator (SSG)
Frequency Range 400 to 520MHz
Modulation Frequency modulation and external modulation
Output –127dBm/0.1µV to greater than –7dBm/100mV
2. Power Meter
Input Impedance 50
Ω
Operation Frequency 400 to 520MHz or more
Measurement Range Vicinity of 100W
3. Deviation Meter Frequency Range 400 to 520MHz
4. Digital Volt Meter (DVM)
Measuring Range 1 to 20V DC
Input Impedance High input impedance for minimum circuit loading
5. Oscilloscope DC through 30MHz
6. High Sensitivity
Frequency Counter
Frequency Range 10Hz to 1000MHz
Frequency Stability 0.2ppm or less
7. Ammeter 20A or more
8. AF Volt Meter (AF VTVM)
Frequency Range 50Hz to 10kHz
Voltage Range 1mV to 3V
9. Audio Generator (AG)
Frequency Range 20Hz to 20kHz or more
Output 0 to 1V
10. Distortion Meter
Capability 3% or less at 1kHz
Input Level 50mV to 10Vrms
11. 4
Ω
Dummy Load Approx. 4
Ω
, 10W or more
12. Regulated Power Supply
13.6V, approx. 20A (adjustable from 9 to 17V)
Useful if ammeter equipped
13. Spectrum Analyzer Center Frequency 50kHz to 600MHz
14. Tracking Generator Output Voltage 100mV or more
MIC connector (Front panel view)
Test cable for microphone input (E30-3360-28) Tuning cable (E30-3383-05)
Adapter cable (E30-3383-05) is required for inject-
ing an audio if PC tuning is used.
See “PC Mode” section for the connection.
3
2
4
5
6
7
8
3
1
2
4
5
6
7
8
1
GREEN
RED
BLACK
BLUE
SHIELD
WHITE
GRAY
YELLOW
PTT
E
MIC-E
MIC
HK
Lead wire +
MIC
Shield wire –
1 : MBL
2 : SB
3 : GND
4 : PTT
5 : ME
6 : MIC
7 : HOOK
8 : DM
ADJUSTMENT
1
8
To Next Page
