14 INSTALLING OPTIONS
MB-430 MOBILE BRACKET
ATTENTION: When installing the MB-430, use the SEMS
Screws provided with the TS-590S.
When installing the MB-430, attach the supplied
plastic spacers to the transceiver in advance. This
is necessary to protect the TS-590S transceiver from
scratches.

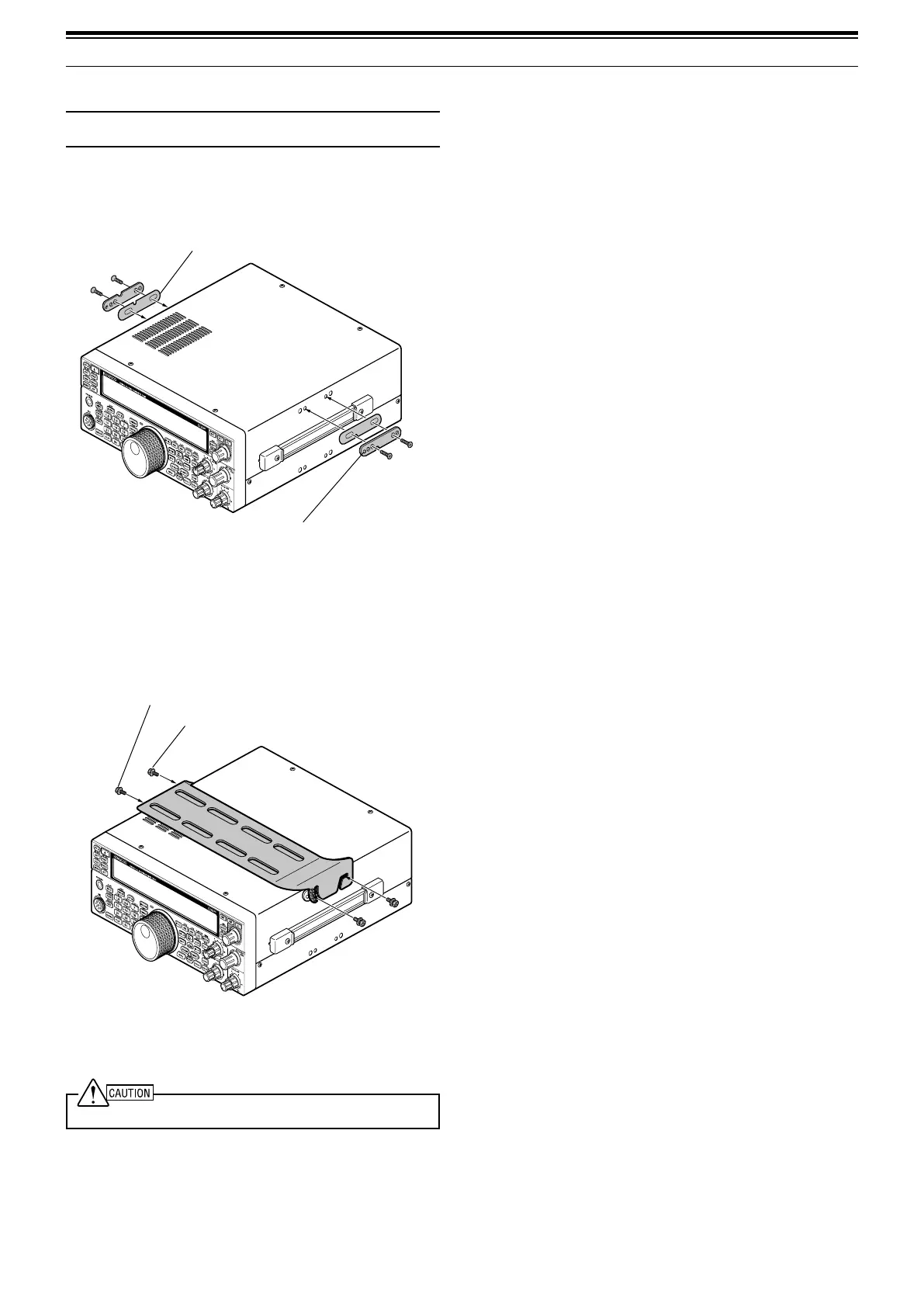

Make sure the tab faces out
Plastic spacers
Once the bracket is installed onto the vehicle, prepare
the transceiver by loosely screwing in the rear screws.
Hook those screws onto the rear guide rail of the
mounting bracket then adjust the transceiver to your
desired angle before tightening the screws. Insert and
tighten the front screws to secure the transceiver in
place.
Rear screw
Front screw
To remove the transceiver from the bracket, first
remove the front screws, then loosen the rear screws
slightly and pull the transceiver forward to unlatch it
from the bracket.
Do not install the transceiver so that it is vertically on its side.
PRECAUTIONS
• When operating mobile, do not attempt to
configure the transceiver while driving; it is too
dangerous.
• Use of the transceiver while you are driving may be
against traffic laws. Please check and observe the
vehicle regulations in your area.
To Next Page
