EN
6

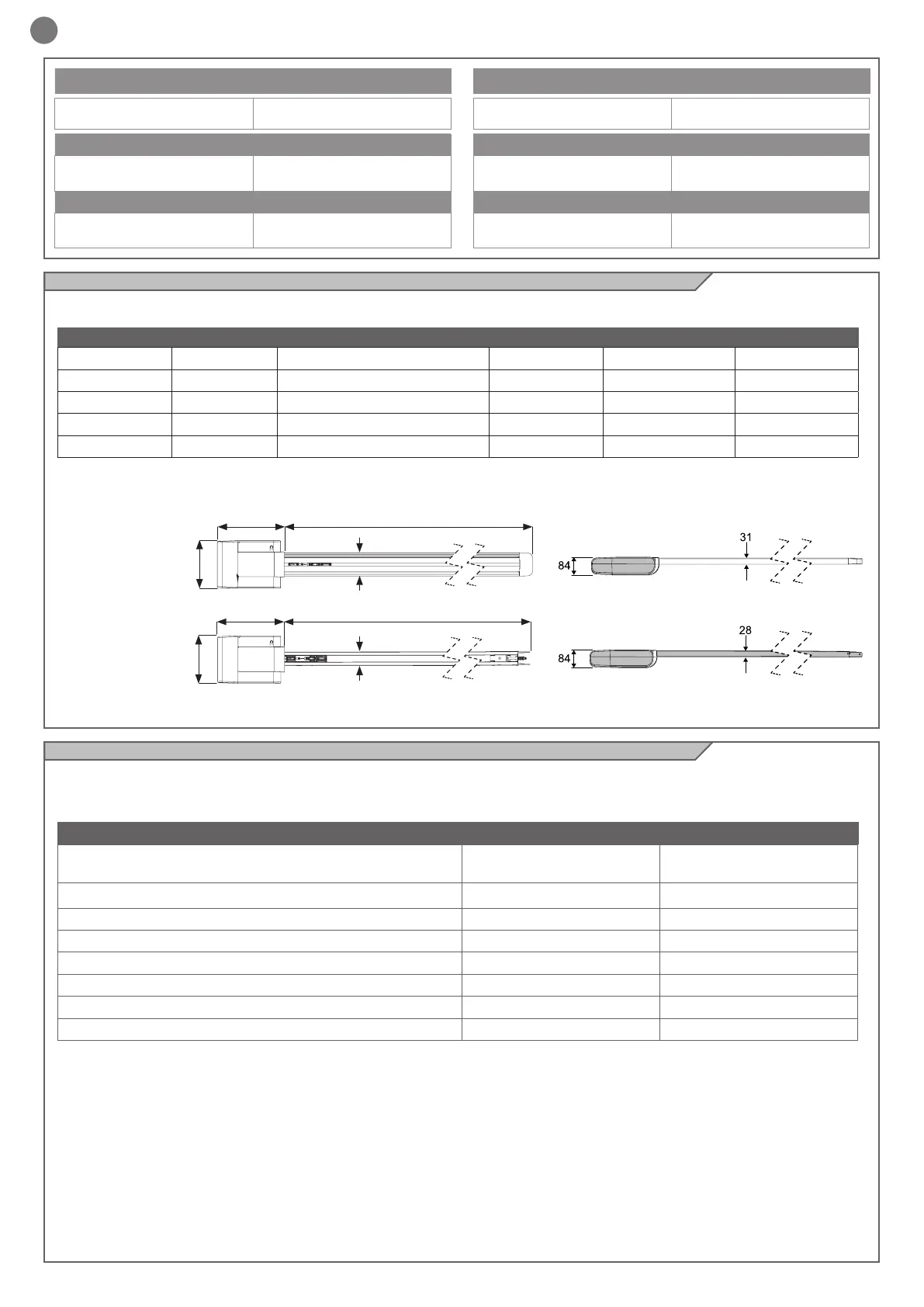

2.4 - Technical specications
The data shown may vary according to the sliding and balancing performance of the door and the type of rail used.
Recommended model and use - Available rails and dimensions
MODEL MATERIAL NOTES DRIVE TYPE TOTAL LENGTH RAIL TRAVEL
900RAL31 Aluminium With integrated LED lighting Belt
3090 mm (1x3m) 2660 mm
900RAL41 Aluminium With integrated LED lighting Belt
4090 mm (1x4m) 3660 mm
900RAB3X1P Steel Belt
3100 mm (3x1.03m) 2670 mm
900RAB31 Steel Belt
3100 mm (1x3.1m) 2670 mm
900RAB41 Steel Belt
4100 mm (1x4.1m) 3670 mm
2.5 - List of cables required
In a typical plant, the cables necessary for connection of the various
devices are shown in the cable list table. The cables used must be
suitable for the type of installation, for example we recommend a
H03VV-F type cable for indoor installation or H07RN-F for outdoor
installation.
CABLE LIST TABLE
CONNECTION CABLE TYPE MAX LENGTH
PERMITTED
Power supply line Schuko CEE 7/4
Flashing light, courtesy light 1 x cable 3 x 0.5 mm
2
20 m
Antenna 1 x RG58 type cable 20 m (recommended < 5 m)
Transmitter photocells 1 x cable 2 x 0.5 mm
2
20 m
Receiver photocells 1 x cable 4 x 0.5 mm
2
20 m
Radio sensitive edge (*) 1 x cable 4 x 0.5 mm
2
<2 m
Key selector 1 x cable 2 x 0.5 mm
2
20 m
If there is not a suitable power outlet near the equipment, contact
qualied personnel for its installation.
(*): refer to the manufacturer’s instructions
USE LIMITS
Sectional Up-and-over slide-away
900HA8 with 3 m rail
S max=11m²
H max = 2,6m
S max=10m²
H max = 3m
900HA8 with 4 m rail
S max=12m²
H max = 3,6m
S max=11m²
H max = 3,4m
USE LIMITS
Sectional Up-and-over slide-away
900HA12, 900HA12E, 900HA12L with 3 m rail
S max=16m²
H max = 2,6m
S max=16m²
H max = 3m
900HA12, 900HA12E, 900HA12L with 4 m rail
S max=19m²
H max = 3,6m
S max=17m²
H max = 3,4m
RAL31
RAL41
RAB31
RAB41
330 3065 / 4065
114
235
P MAX = 84 mm
330 3075 / 4075
70,5
235
P MAX = 84 mm
