721
Maintenance
Filter replacement

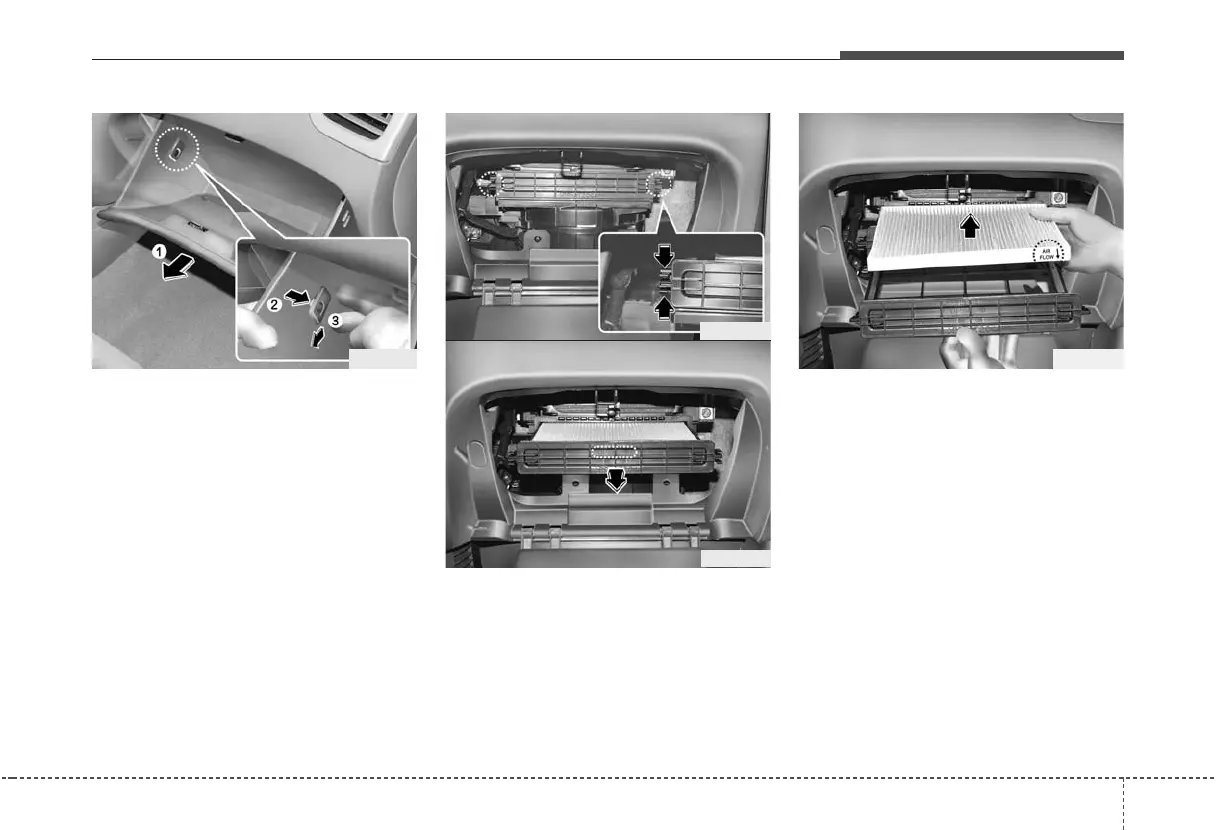

1. With the glove box open, remove the
stoppers on both sides and allow the
glove box to hang freely on the hinges.
2. Remove the climate control air filter
cover by pressing the clips on both
sides of the cover.
3. Replace the climate control air filter.
4. Reassemble in the reverse order of
disassembly.
✽✽
NOTICE
When replacing the climate control air
filter install it according to the “AIR
FLOW
ÈÈ
” and “UP
ÇÇ
” identification
marks. Otherwise, the system may pro-
duce noise and the effectiveness of the
filter may be reduced.
1JBA7013
1JBA7016
1JBA7014
1JBA7015
