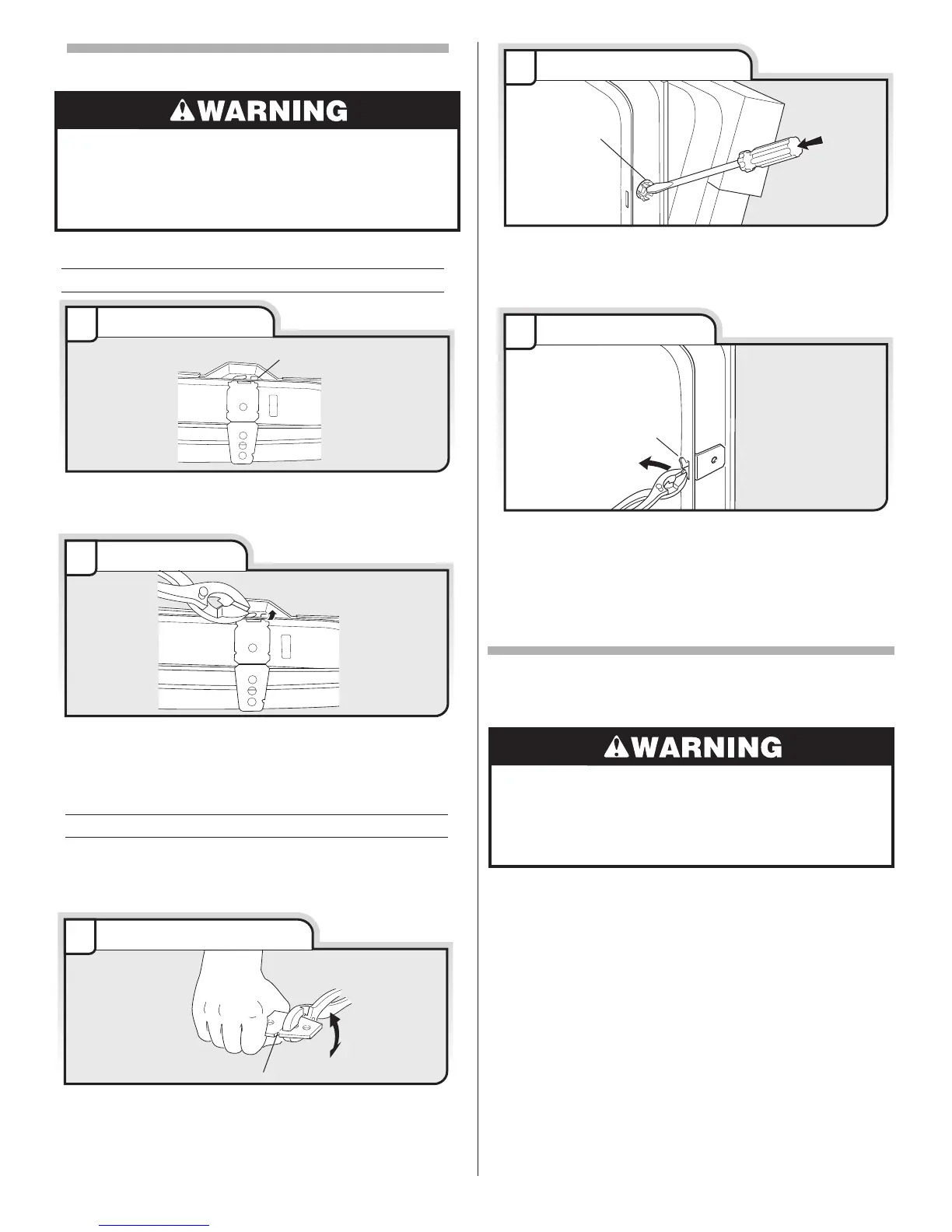

Choose Attachment Option
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Use 2 or more people to move and install dishwasher.
Plastic
button
Insert plastic buttons
2
Push the plastic buttons out of the side of the tub.
NOTE: Save the buttons to cover the holes after
dishwasher is installed.
Score line
Break end of bracket
1
Break off the end of the bracket along the scored line.
With another person holding the rear of the dishwasher
to keep it from tipping, open dishwasher door and place
towel over pump assembly and spray arm of dishwasher.
This will keep screws from falling into pump area when
you are securing dishwasher to cabinet.
Bend
tabs
Reinstall bracket
3
Push bracket into slot on the side of dishwasher, and
bend tab in toward the side of the dishwasher so that it
keeps the bracket in place. Repeat this step for the other
side of the dishwasher.
NOTE: Do not attach the dishwasher. This will be done
later.
Move Dishwasher Close to Cabinet
Opening
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Tabs must point
to the right
Remove bracket
1
NOTES:
• Remove the brackets from the parts package.
• You must predrill pilot holes in cabinet to avoid
splitting the wood before installing screws.
Option 1, Countertop attachment:
Option 2, Dishwasher side attachment:
Remove the brackets from the package and place in the
open slots on the left and right-hand top of the
dishwasher collar as shown.
Insert bracket
2
Use 2 or more people to move and install dishwasher.
Insert the bracket into the slot on the collar. Using a pair
of pliers, bend the tab down to secure the bracket in
place. Repeat this step for the other side.
NOTE: Do not attach the dishwasher. This will be done
later.
