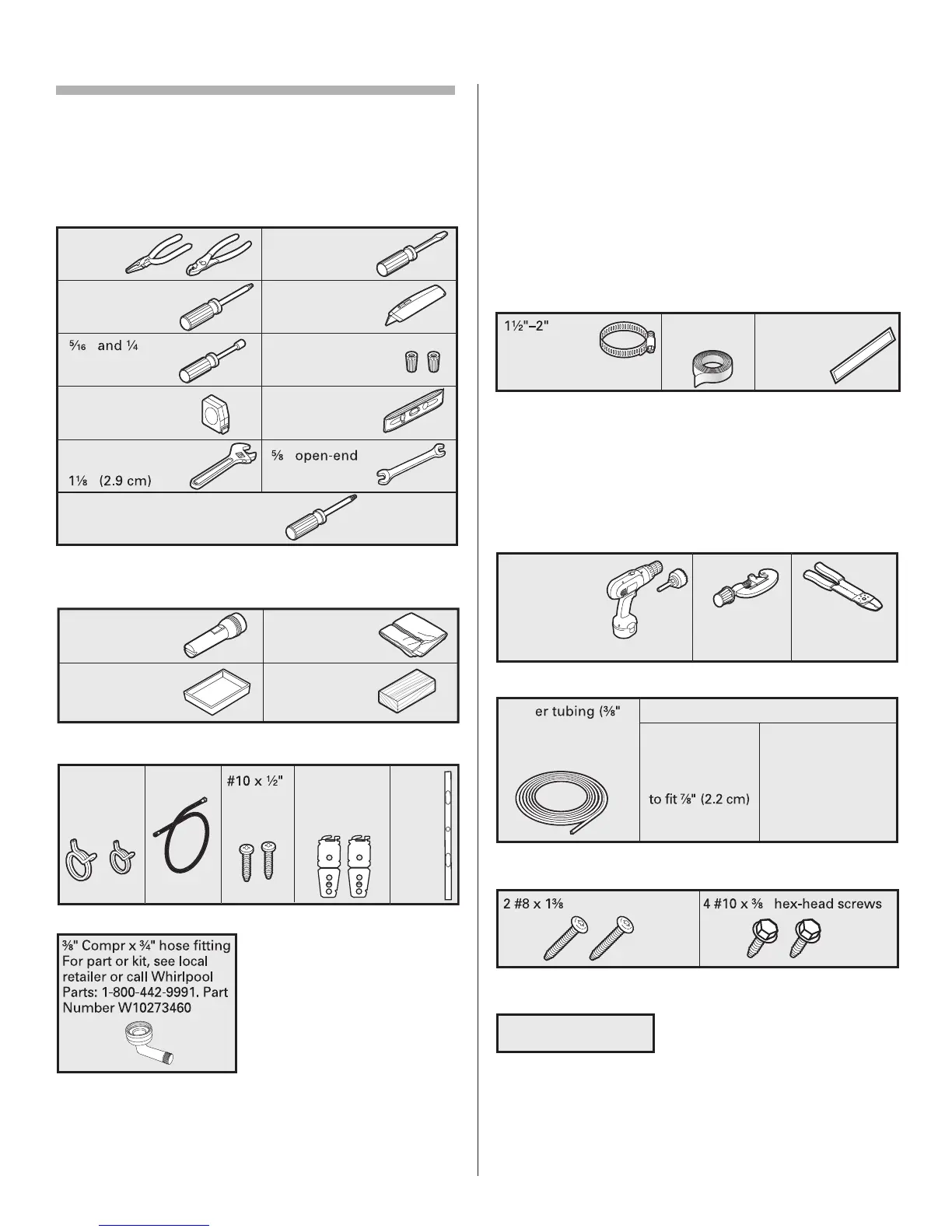

Tools and Parts
Gather the recommended tools and parts before starting
installation. Read and follow the instructions provided with
any tools listed here.
All Installations
Tools needed:
*Must be the proper size to connect your household wiring
to 16-gauge wiring in dishwasher
Other useful items you may need:
Parts supplied:
Make sure all these parts are included in the literature package.
Parts needed:
4 #10 x ¹⁄₂" wood screws (if installing custom front panels)
Supplied in Kit:
4 Plastic studs (attached to each other by runners)
4 Short screws (10-16 hex head screw)
4 Long screws (8-18 Torx
®†
head screws)
1 Template (located inside Use and Care Guide bag
assembly)
1 Instruction sheet (located inside Use and Care Guide bag
assembly)
NOTE: The screws supplied are used for only ³⁄₄" thick
wooden panel. If the wooden panel is less than ³⁄₄" thick,
customer must purchase screws locally.
Other parts you may also need:
NOTE:
Moisture barrier tape is recommended when installing a
dishwasher under a wood countertop.
NOTE:
Parts available for purchase in plumbing supply stores.
Check local codes. Check existing electrical supply. See
“Electrical Requirements” section. It is recommended that
electrical connections be made by a licensed electrical installer.
In addition, for first-time installations
Tools needed:
Parts needed:
Additional parts supplied with top-venting models only:
Additional parts supplied with certain models only:
Make sure all these parts are included in the literature package.
If parts are not included, call 1-800-422-1230.
†® TORX is a registered trademark of Saturn Fasteners, Inc.
