26
CARE AND MAINTENANCE
Note: If the chain is too tight, it will not rotate. Loosen the
chain cover lock nuts (K) slightly and turn the chain
adjustment screw 1/4 turn counterclockwise. Lift the tip of
the guide bar up and retighten the chain cover lock nuts
(K). Ensure that the chain will rotate without binding.
• Loosen the chain cover lock nuts (K) with the supplied
wrench (O). The chain cover lock nuts (K) do not have
to be completely removed in order to adjust the chain
tension.
• Rotate the chain adjustment screw (P) clockwise to
increase the chain tension and rotate counterclockwise
to decrease the chain tension.
• Once the chain is at the desired tension, tighten the
chain cover lock nuts (K).

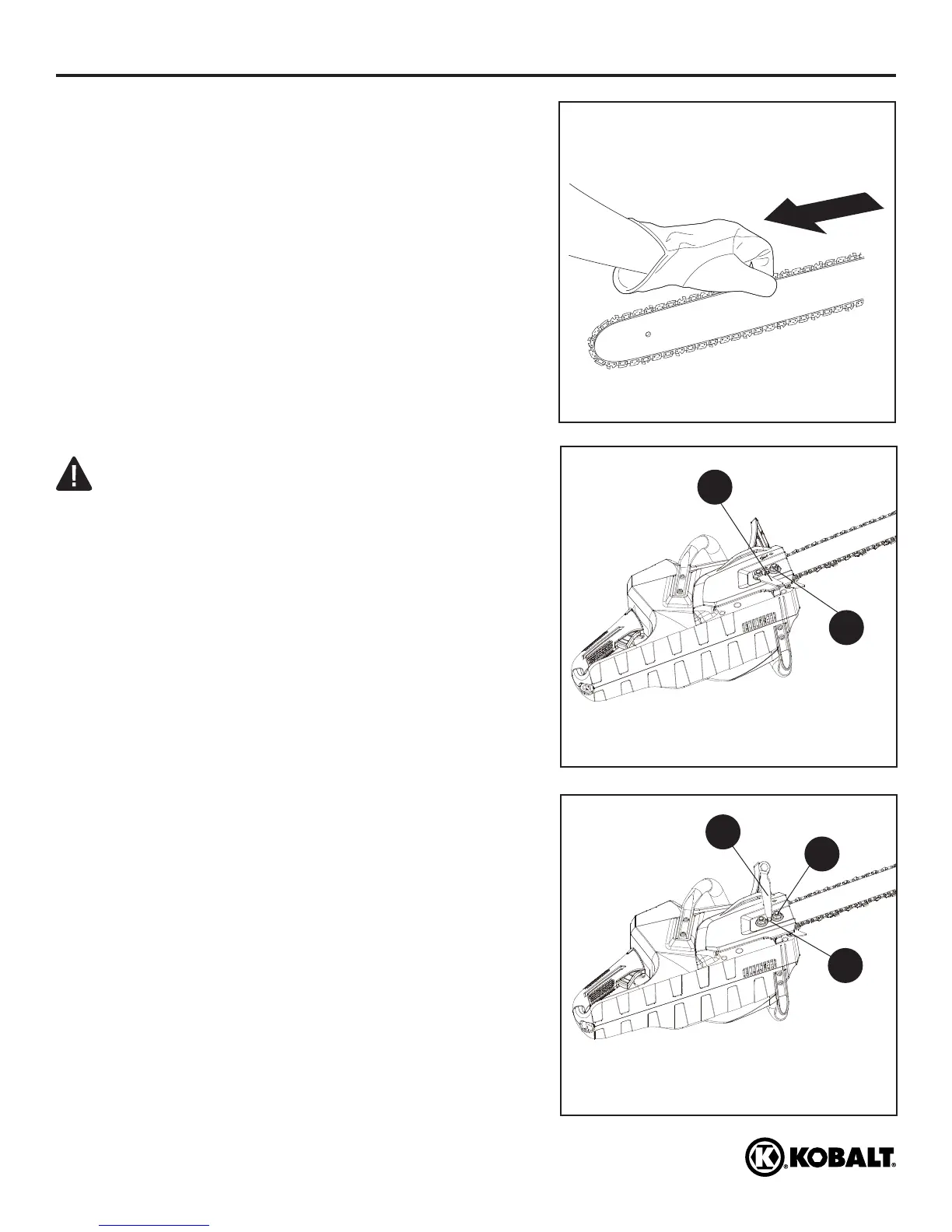

Adjusting the chain tension
WARNING
Never touch or adjust the chain while the motor is running.
The saw chain is very sharp. Always wear protective
gloves when performing maintenance on the chain.
O
O
P
K
K
