15
ASSEMBLY INSTRUCTIONS
WARNING: To avoid injury, do not connect this tile saw to a power source until it is completely
assembled and you have read and understood the instruction manual.
ASSEMBLING THE STAND (FIG. 1, 2, 3, 4, 5, 6)

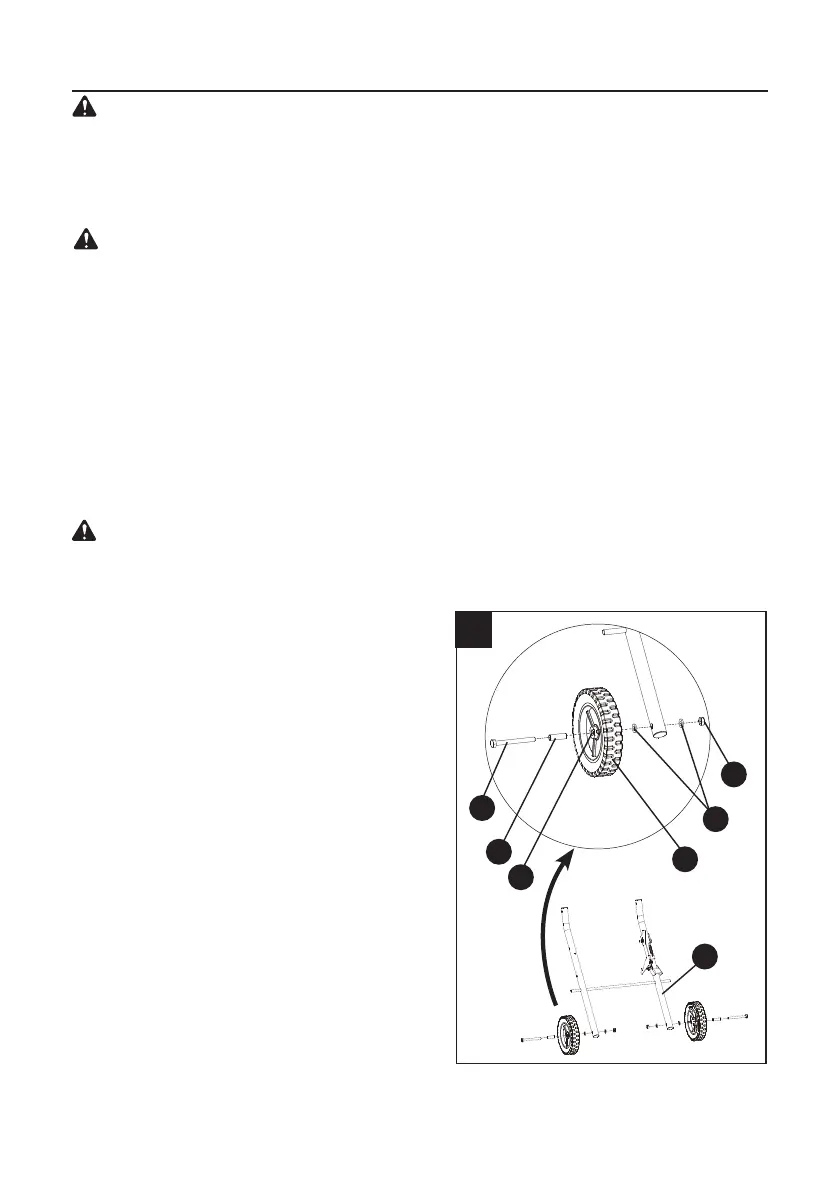

Assembling the wheels (Fig. 1) - BAG V
NOTE: Verify that the side of the wheel that has
more spokes is facing inward toward the stand.
● Place the inner leg assembly (N) on the
ground. Insert the sleeve (oo) into the
hole (1) of the wheel (CC). Attach one
wheel (CC) to one side of the inner leg
assembly (N) using a hex bolt (kk), two at
washers (mm) and a lock nut (nn), as shown.
● Tighten using the adjustable wrench (not
included) for the lock nut (nn) and the 17 mm
wrench (not included) for the hex bolt (kk).
NOTE: Do not overtighten, because doing so
will not allow the wheel to turn.
● Repeat the above steps for assembling the
other wheel to the other side of the inner leg
assembly (N).
1
mm
CC
N
nn
kk
oo
1
UNPACKING YOUR TILE SAW
Carefully unpack the tile saw and all its parts, and compare against the list and illustration on pages
3 to 5. With the help of an assistant, place the saw on a secure surface and examine it carefully.
● To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a
source of power during unpacking and assembly. The cord must remain unplugged whenever
you are adjusting/assembling the tile saw.
● The tile saw is heavy and should be lifted with care. If needed, get the assistance of someone
to lift and move the tile saw.
● If any part is missing or damaged, do not attempt to assemble the tile saw, or plug in the
power cord until the missing or damaged part is correctly replaced.
● DO NOT use this product if any loose parts on the Package Contents or Hardware Contents
sections are already assembled to your product when you unpack it. Parts on this list are not
assembled to the product by the manufacturer and require customer installation. Use of a
product that may have been improperly assembled could result in serious injury.
If any parts are damaged or missing, please call 888-3Kobalt (888-356-2258) for assistance.
WARNING: Do not attempt to modify this tool or create accessories for use with this tool. Any
such alteration or modication is misuse and could result in a hazardous condition leading to
serious personal injury.
WARNING
