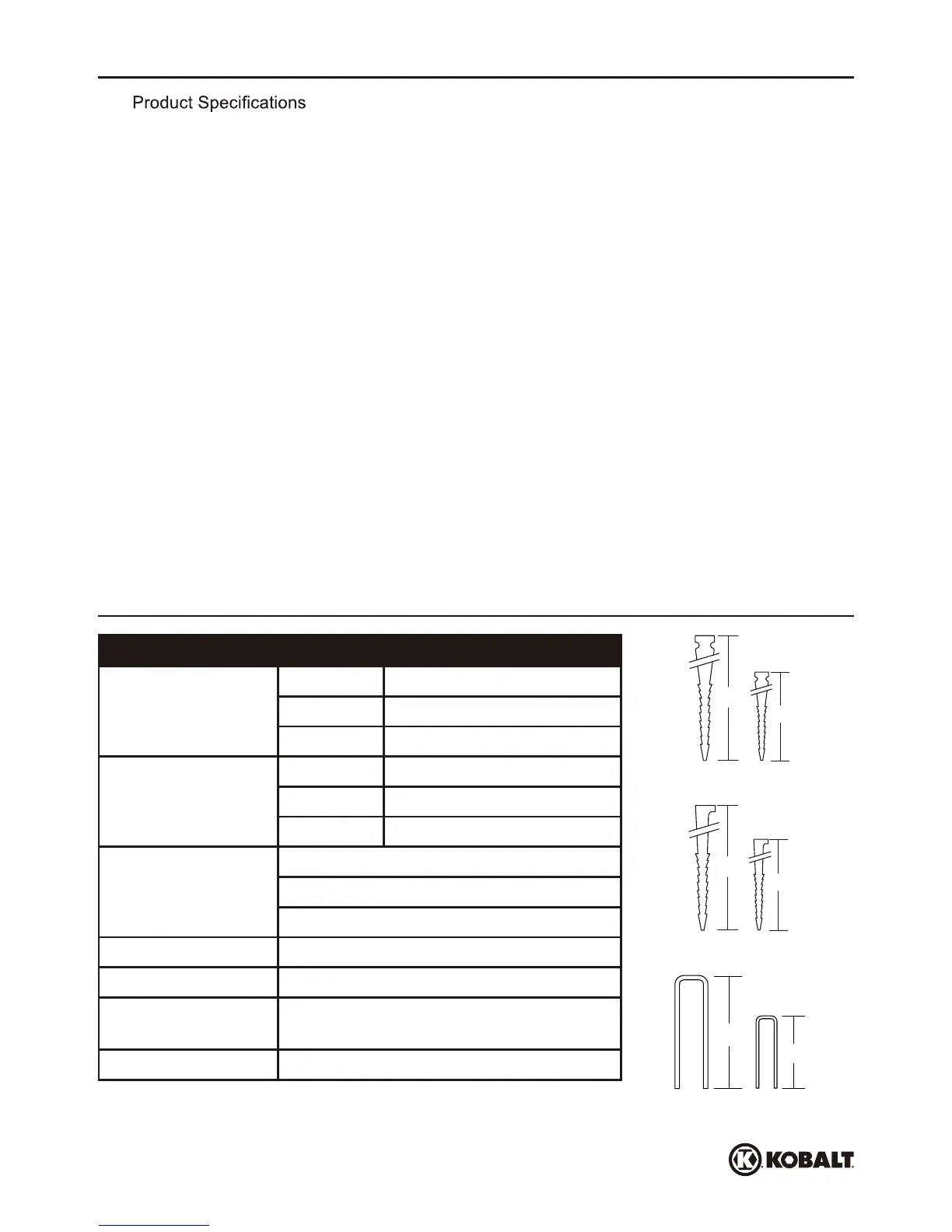

PRODUCT SPECIFICATIONS
DESCRIPTION SPECIFICATIONS
Nail capacity T-cleats 100 pcs.
L-cleats 100 pcs.
Staples 80 pcs.
Nail length T-cleats 1-1/2 in. - 2 in. (38-50 mm)
L-cleats 1-1/2 in. - 2 in. (38-50 mm)
Staples 1-1/2 in. - 2 in. (38-50 mm)
Fastener size
16 Ga T-cleats
16 Ga L-cleats
15.5 Ga Staples
Operating pressure 90 - 110 PSI (6.2 - 7.5 bar)
Air inlet 1/4 in. N.P.T.
Dimensions
19.41 in. × 3.15 in. × 20.27 in.
(493 × 80 × 515 mm)
Weight 11.90 lbs.
T-cleats
L-cleats
Staples
1-1/2 in.
2 in.
2 in.
1-1/2 in.
2 in.
1-1/2 in.
