OPERATING INSTRUCTIONS
Note: ,
. ALWAYS
remember to use proper eye and ear protection when using this item.
• 16 Ga T-cleats (Maximum fastener capacity 100 pcs.)
• 16 Ga L-cleats (Maximum capacity 100 pcs.)
• 15.5 Ga staples (Maximum capacity 80 pcs.)
Note:
NEVER exceed the maximum
holding capacity. Overloading the gun or improper operation and/or maintenance of this product
could result in serious property damage, personal injury and/or death.

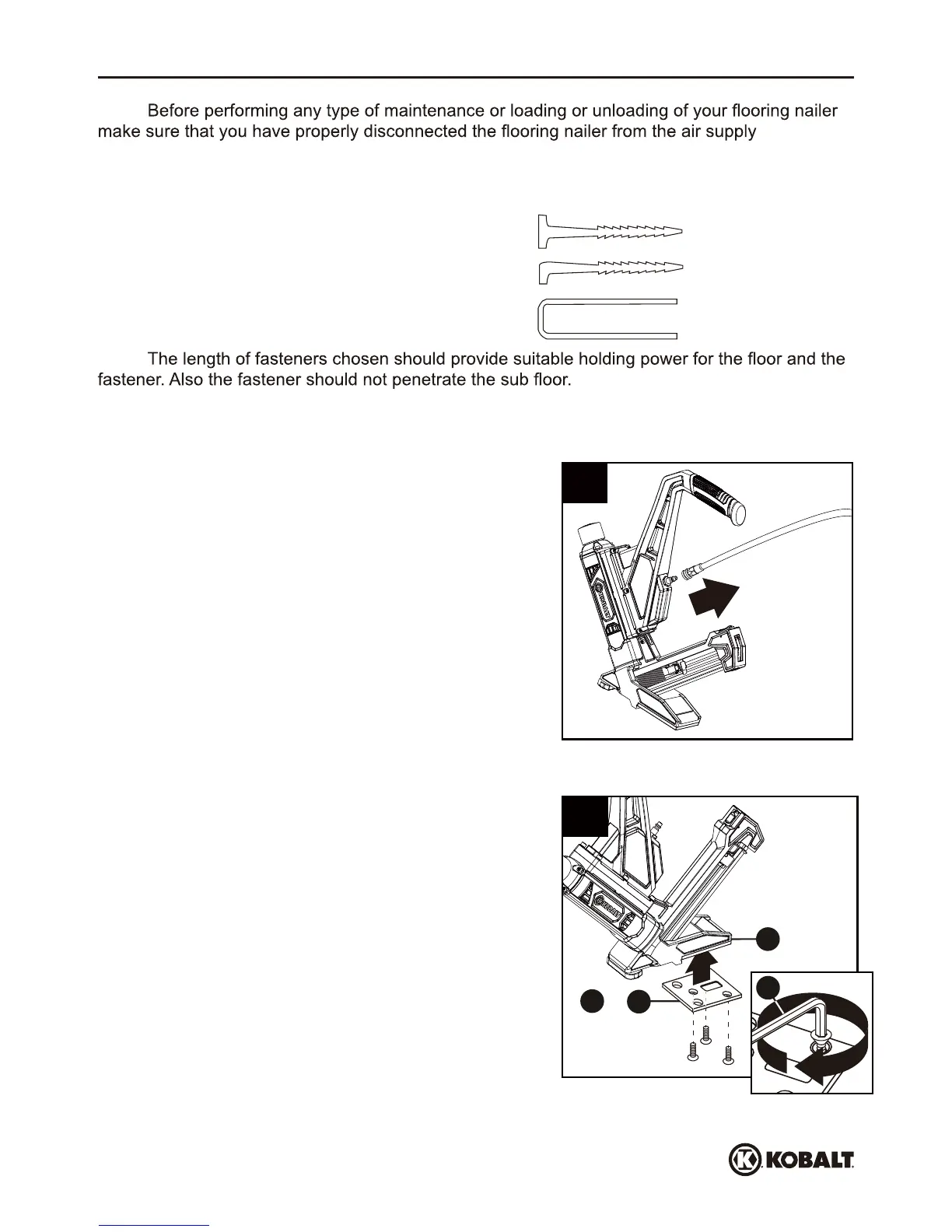

1. Disconnect tool from air supply.(See Figure 1)
Note: This nailer is compatible with 1/2 inch, 5/8 inch,
and 3/4 inch flooring. Make sure the base plate being
used is compatiable with the wood flooring thickness
you intend to use. Please consult your local retailer for
further assistance.
2. Using the hex key (J), hold the gun upside down and
remove the three screws from the base plate by turning
counter clockwise. Attach the desired base plate (H or I)
(See Figure 2). Ensure the screw holes on the base plate
line up with the holes at the nailer base (C). Tighten
screws by turning clockwise (See Figure 2). Make sure
screws do not protrude out of the base plate.
2
H or
I
C
To Next Page
