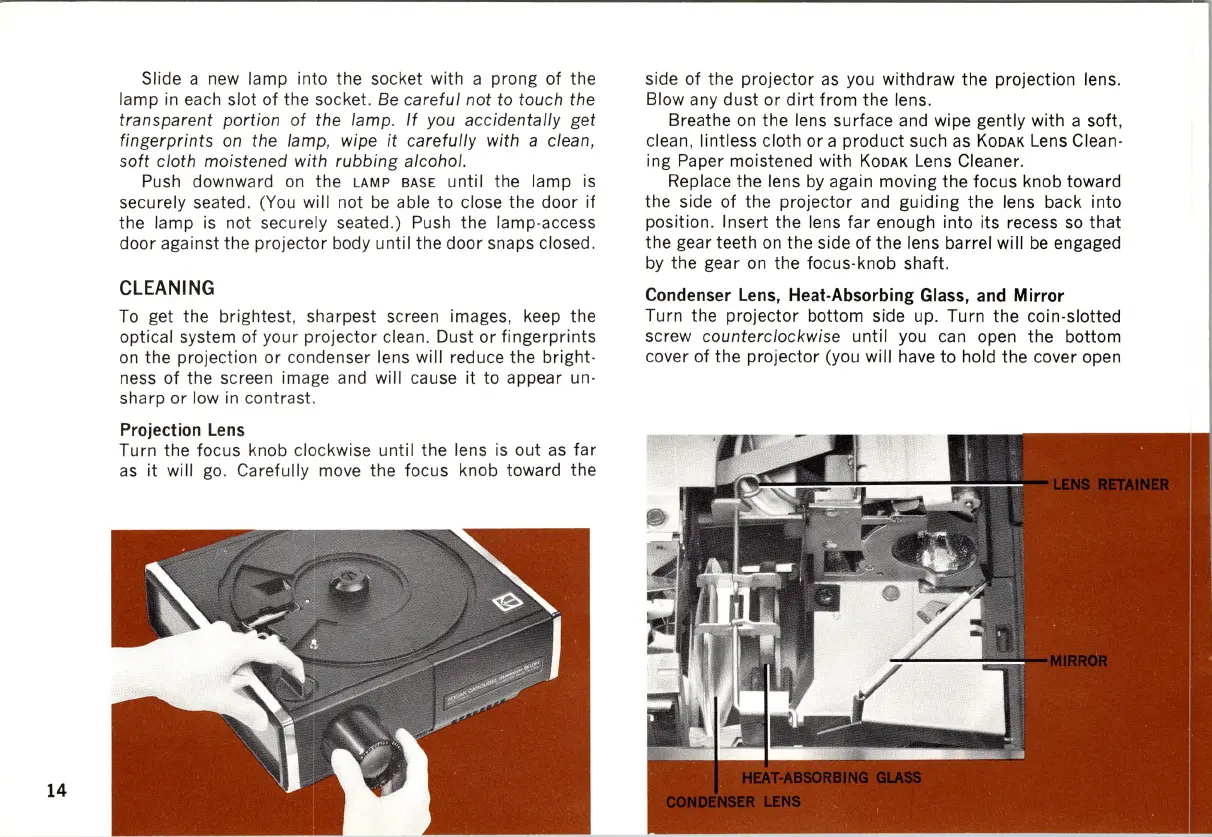

Slide a new lamp into the socket with a prong of the
lamp in each slot of the socket.
Be careful not to touch the
transparent portion of the lamp . If you accidentally get
fingerprints on the lamp , wipe it carefully with a clean,
soft cloth moistened with rubbing alcohol.
Push downward on the LAMP BASE until the lamp is
securely seated. (
You will not be able to close the door if
the lamp is not securely seated.) Push the lamp·access
door against the projector body until the door snaps closed .
CLEANING
To get the brightest, sh arpest screen images, keep the
optical system of your projec
tor clean. Dust or fingerprints
on the projection or condenser lens will reduce the bright -
ness of the screen image and will cause it to appear un-
sharp or low in contrast.
Projection lens
Turn the focus knob c lo ckwise until the lens is out as far
as it will go . Carefully move the focus knob toward the
side of the projector
as you withdraw the projection lens.
Blow any dust or
dirt from the lens.
Breathe
on the lens su rface and wipe gently with a soft,
clean , lintless cloth or a product such
as KODAK Lens Clean-
ing Paper moistened with
KODAK Lens Cleaner.
Replace the lens
by again moving the focus knob toward
the side of the projector and guiding the lens back into
position. Insert the lens
far enough into its recess so that
the gear teeth on the side of the lens barrel will be engaged
by the gear on the focus-knob shaft.
Condenser lens, Heat-Absorbing Glass, and Mirror
Turn the projector bottom side up. Turn the coin -slotted
screw
counterclockwise until you can open the bottom
cover
of the projector (you will have to hold the cover open
