Kodiak K16 User Manual

KODIAK K16 7
Questions? Call 855-965-0011 Use OEM Parts
OPERATION

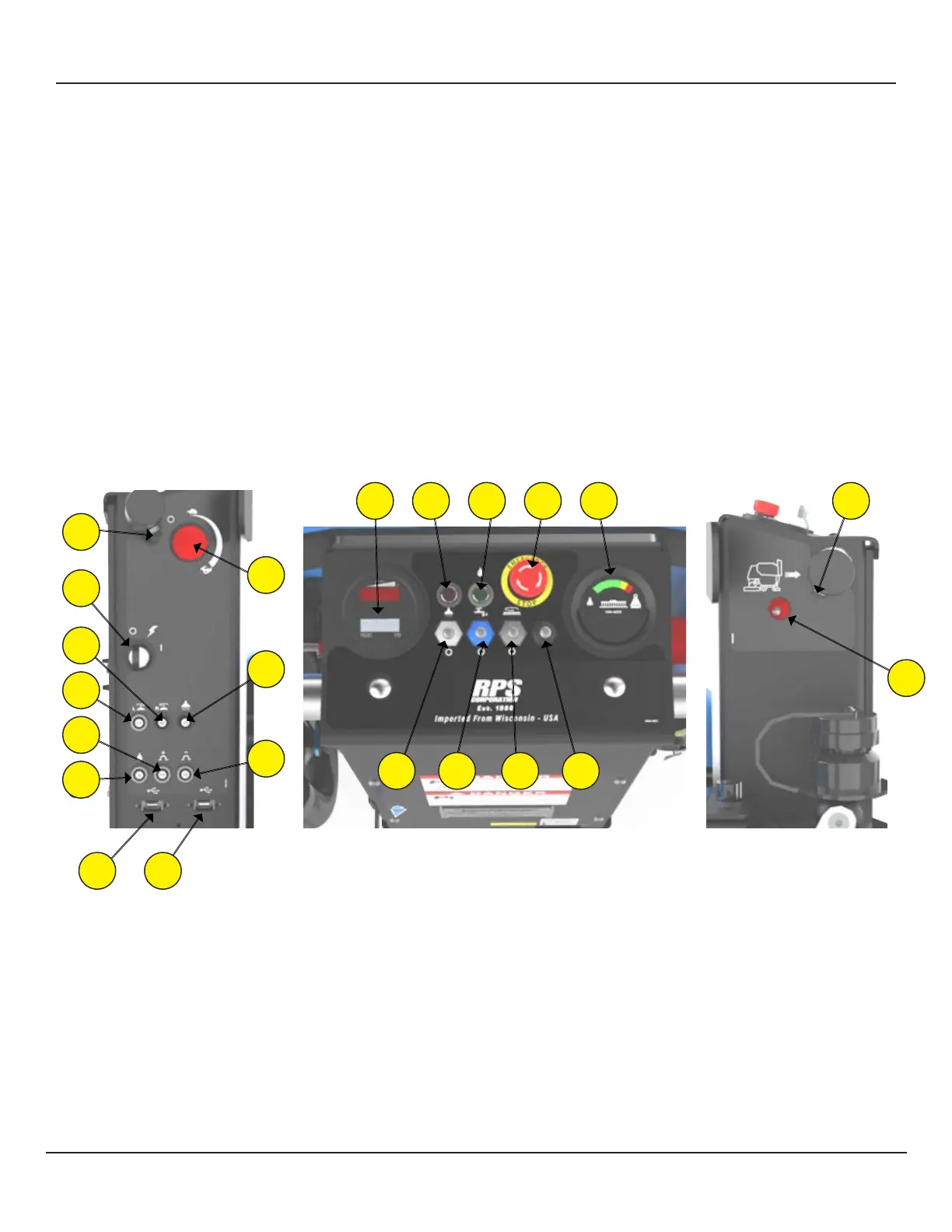

Central Command Overview
1. Drive Switch
2. Key
3. Right Brush Circuit Breaker
4. Left Brush Circuit Breaker
5. Positive BUSS Circuit Breaker
6. Pump Circuit Breaker
7. USB Port
8. USB Port
9. Negative BUSS Circuit Breaker
10. Vac Circuit Breaker
11. Speed Control Knob
12. Battery Meter
13. Vac Clog Indicator Light
14. Solution Indicator Light
15. E-Stop
16. Down Pressure Meter
17. Vac Toggle Switch
18. Solution Toggle Switch
19. Deck Toggle Switch
20. Down Pressure Toggle Switch
21. Drive Switch
22. Reverse Lever
1
2
3
5
4
6
7 8
10
9
11
12
17 18 19 20
13
14 15 16 21
22

Kodiak K16 Specifications

General

Brand	Kodiak
Model	K16
Category	Floor Machine
Language	English
