TP-7045 3/18c 9Section 1 Introduction
Section 1 Introduction
1.1 General
Information in this publication represents data available
at the time of print. Kohler Co. reserves the right to
change this publication and the products represented
without notice and without any obligation or liability
whatsoever.
The safe and successful operation of a marine power
system depends primarily on the installation. See
Figure 1-1. Use this manual as a guide to install the
marine generator set. For operating instructions, refer
to the operation manual.
Marine generator set installations must comply with all
applicable regulations and standards.
Use the specification sheets as a guide in planning your
installation. Use current dimension d rawings and wiring
diagrams.
1
2
5
6
3
7
8
9
11
12
14
10
15
16
17
18
ADV8558-
1. Exhaust mixer elbow/exhaust water outlet (non-service side)
2. Heat exchanger (non-service side)
3. Coolant recovery tank
4. Fuel filter
5. Seawater pump (seawater inlet)
6. Seawater strainer *
7. Seawater line *
8. Seacock *
9. Craft stringers
10. Mounting tray
11. Fuel return line (fuel return is coiled and tied to unit when
shipped) *
12. Hose clamps
13. Fuel/water separator, if equipped (see Section 5 for more
information)
14. Fuel supply line (fuel supply is coiled and tied to unit when
shipped) *
15. Battery/battery storage box
16. Battery cables
17. Exhaust hose or exhaust line *
18. Electrical leads (AC output leads/remote start panel leads)
* Indicated components must conform to USCG regulations.
13
4

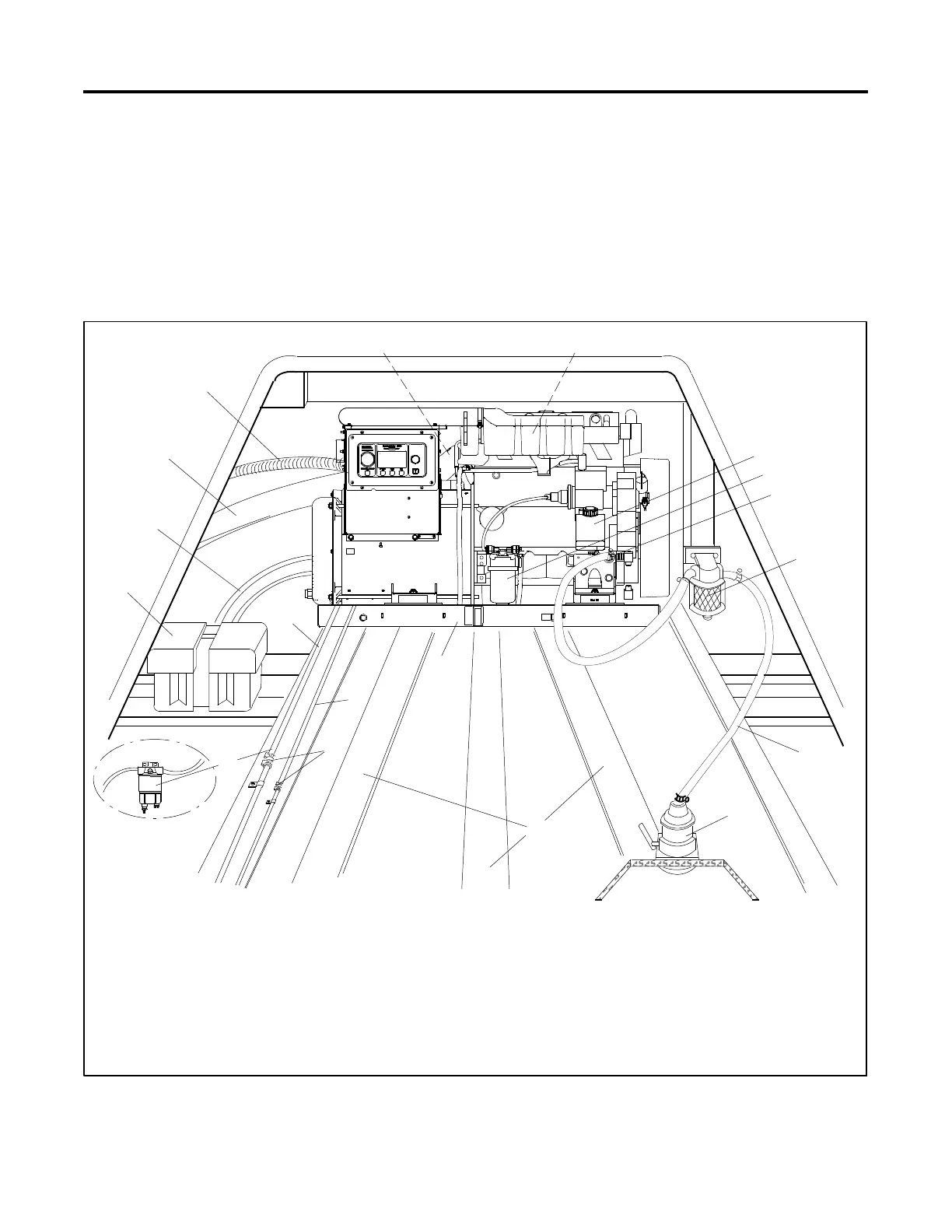

Figure 1-1 Typical Generator Set Location and Mounting (Without Sound Shield)
