Kohler K-1695 Installation Guide

5. Make Electrical Connections
DANGER: Risk of electrocution. Disconnect all power before performing these installation steps.
NOTICE: All electrical work should be done by a licensed electrician.
NOTICE: Do not install a GFCI to this unit. This will prevent nuisance tripping.
NOTICE: All electrical wiring must be done in accordance with local codes.
Turn off all electricity to the working area at the main breaker panel.
Connect 240 VAC electrical lines to the wires labeled ″1″ and ″2″ coming out of the steam generator.
NOTICE: The steam generator should have a dedicated circuit breaker.
5 Volts DC
RJ12 to UIC or
RS485 Adapter
Thermal Switch
Water Level Switch
RJ-12 Cord
Red
PCB
J5
L1
L2
T1
T2
J4
J1
J2
J3
J7
Red
Black
Black Black
Black
Black
Green
Relay
Heater
Black
Black
Red
White
White
Orange
Orange
Electrical
Service
240VAC
50/60 Hz
Power Clean
Solenoid
165F
Thermostat
LFuse 1A
LFuse 1A

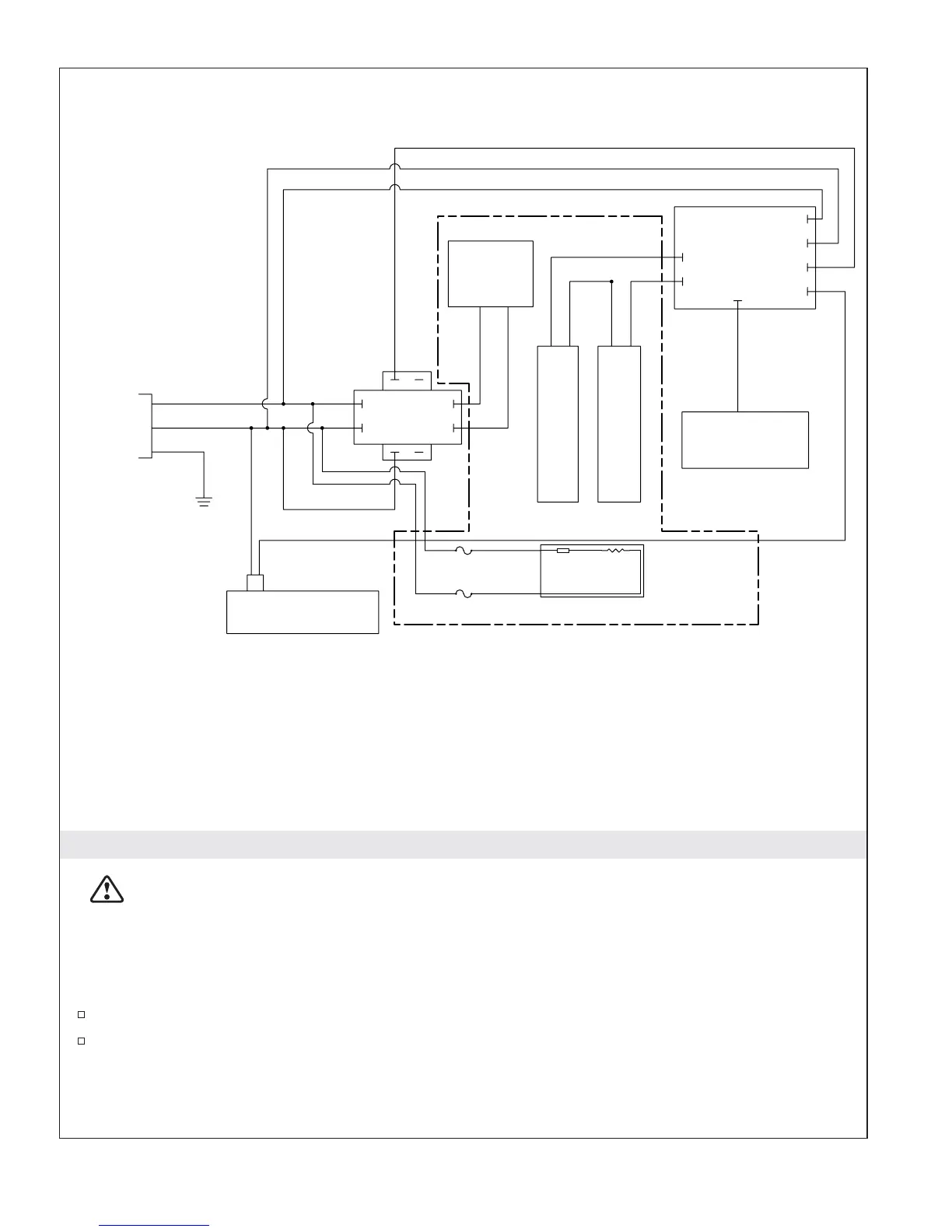

Wiring Diagram
Inner Tank
Assembly
Kohler Co. 11 1060226-2-E
