Kohler K-1695 Installation Guide

Installation Requirements
Model K-1695-NA K-1708-NA K-1733-NA K-1734-NA
Ordering Information
Steam Control
Kit (one kit
required)
K-1647-PC OR K-1647-PC OR K-1647-PC OR K-1647-PC OR
K-1737, K-638, and
K-694 or K-695
K-1737, K-638, and
K-694 or K-695
K-1737, K-638, and
K-694 or K-695
K-1737, K-638, and
K-694 or K-695
Required Electrical Service
Generator -
Dedicated
Circuit Required
5kW,240V30A,
50/60 Hz
7 kW, 240 V, 50 A,
50/60 Hz
9 kW, 240 V, 50 A,
50/60 Hz
11 kW, 240 V, 75 A,
50/60 Hz
Product Information
Weight 21 lbs (9.5 kg) 21 lbs (9.5 kg) 21 lbs (9.5 kg) 21 lbs (9.5 kg)
Electrical Rating 240 V, 25 A, 60 Hz 240 V, 36 A, 60 Hz 240 V, 45 A, 60 Hz 240 V, 55 A, 60 Hz
Water supply 3/8″ copper line
(3/8″ NPT female
thread)
3/8″ copper line
(3/8″ NPT female
thread)
3/8″ copper line
(3/8″ NPT female
thread)
3/8″ copper line
(3/8″ NPT female
thread)
Steam Line 1/2″ copper line
(1/2″ NPT thread)
1/2″ copper line
(1/2″ NPT thread)
1/2″ copper line
(1/2″ NPT thread)
1/2″ copper line
(1/2″ NPT thread)
Pressure Relief
Valve (supplied)
3/4″ NPT female
thread
3/4″ NPT female
thread
3/4″ NPT female
thread
3/4″ NPT female
thread
Drain Line
Valve
3/8″ copper line,
(3/8″ NPT female
thread)
3/8″ copper line,
(3/8″ NPT female
thread)
3/8″ copper line,
(3/8″ NPT female
thread)
3/8″ copper line,
(3/8″ NPT female
thread)

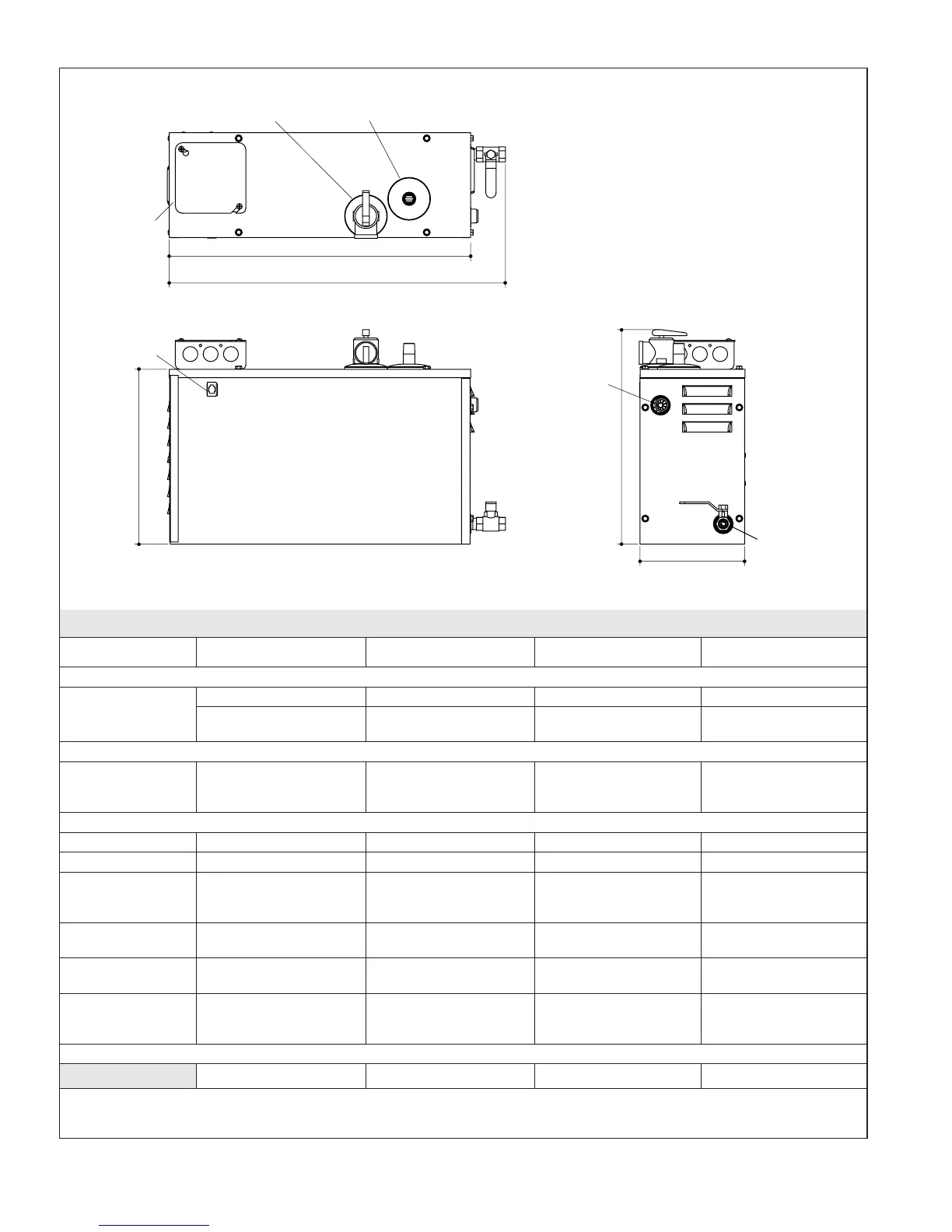

Sizing The Steam Room
56 cu ft (1.6 cu m) 112 cu ft (3.2 cu m) 240 cu ft (6.8 cu m) 317 cu ft (9 cu m)
6-1/8" (15.6 cm)
19-11/16" (50 cm)
17-5/8" (44.8 cm)
3/8" NPT Drain
3/4" NPT
Pressure Relief
12-1/2"
(31.8 cm)
10-1/4"
(26 cm)
Minimum required access is
20" (50.8 cm) L x 13" (33 cm) H x
6-1/2" (16.5 cm) W.
Field Wiring
Service Box
RJ-12
Control
Jack
3/8" NPT
Water In
1/2" NPT
Steam Outlet
Kohler Co. 5 1060226-2-E
