Operation and Maintenance Manual Safety
Operating areas and maintenance areas
2.8.2 Operating areas

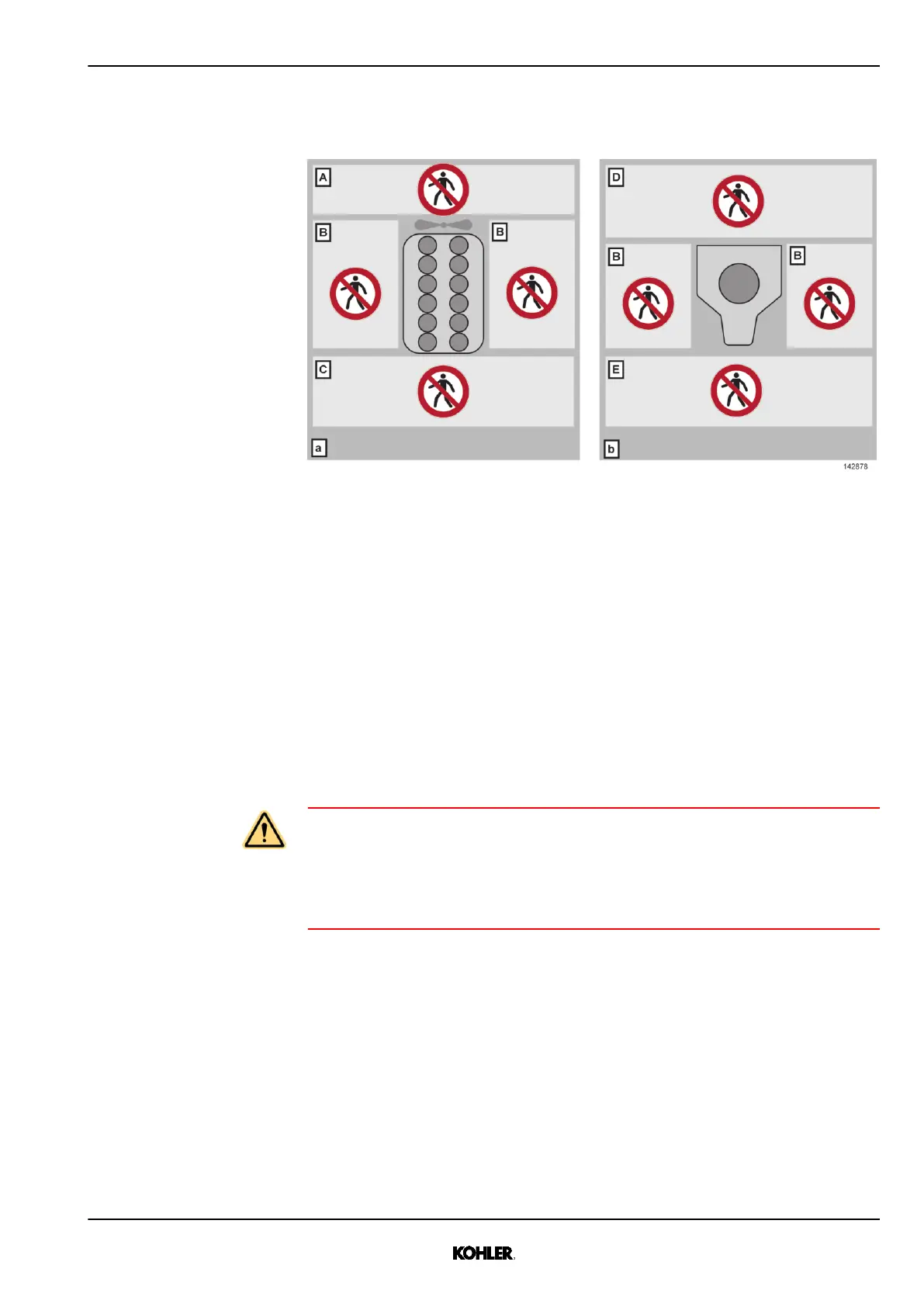

Fig. 21: Safety zones of engines that are ready for use or running
a Horizontal projection (viewed from
above)
b Upright projection (viewed from
the flywheel side)
Access is prohibited to the following areas:
– Safety zone, unit carrier side A
– Safety zone next to engine B
– Safety zone, flywheel side C
– Safety zone, above engine D
– Safety zone, below engine E
2.8.3 Maintenance areas
Maintenance areas are the safety zones that have to be accessed for maintenance
work and troubleshooting.
WARNING
Hot parts during maintenance work.
Risk of burns! Can cause severe injury or death.
u
Allow the engine to cool down sufficiently.
u
Wear personal protective equipment.
