Operating fluids and maintenance Operation and Maintenance Manual
Maintenance activities
Filling with diesel engine oil

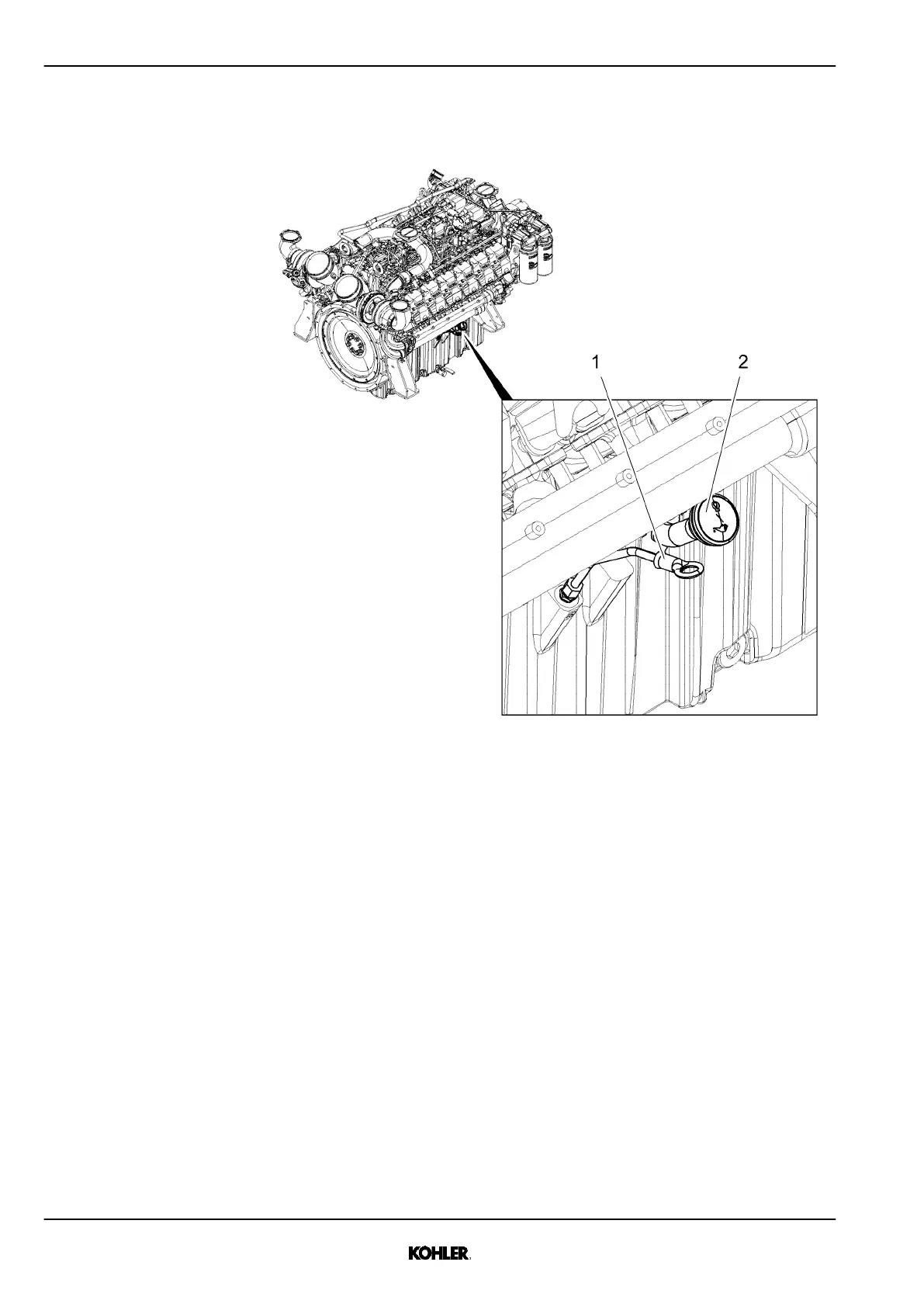

Fig. 55: Example of oil dipstick and oil filler neck
u
Fill with oil through the oil filler neck 2 up to between the min and max marks on
the dipstick 1.
u
Clean the refueling cap, place on the oil filler neck 2 and tighten.
u
Start the diesel engine.
u
Check the oil pressure (diesel engine oil pressure display unit) and check the oil
filter for leaks.
u
Turn the Diesel engine off.
u
Check the oil level on the dipstick after 10 minutes.
If the engine oil level is not between min and max:
u
Correct the oil level.
5.14.3
Replace the oil separator filter insert of the crankcase
breather
Make sure that:
q
A new V-ribbed belt is on hand.
q
A new filter insert is on hand.
q
Another person is present.
72
© 2017 by Kohler Co. All rights reserved.
KD27V12 33521029401_3_1 en 2017-07-01
